Omschrijving

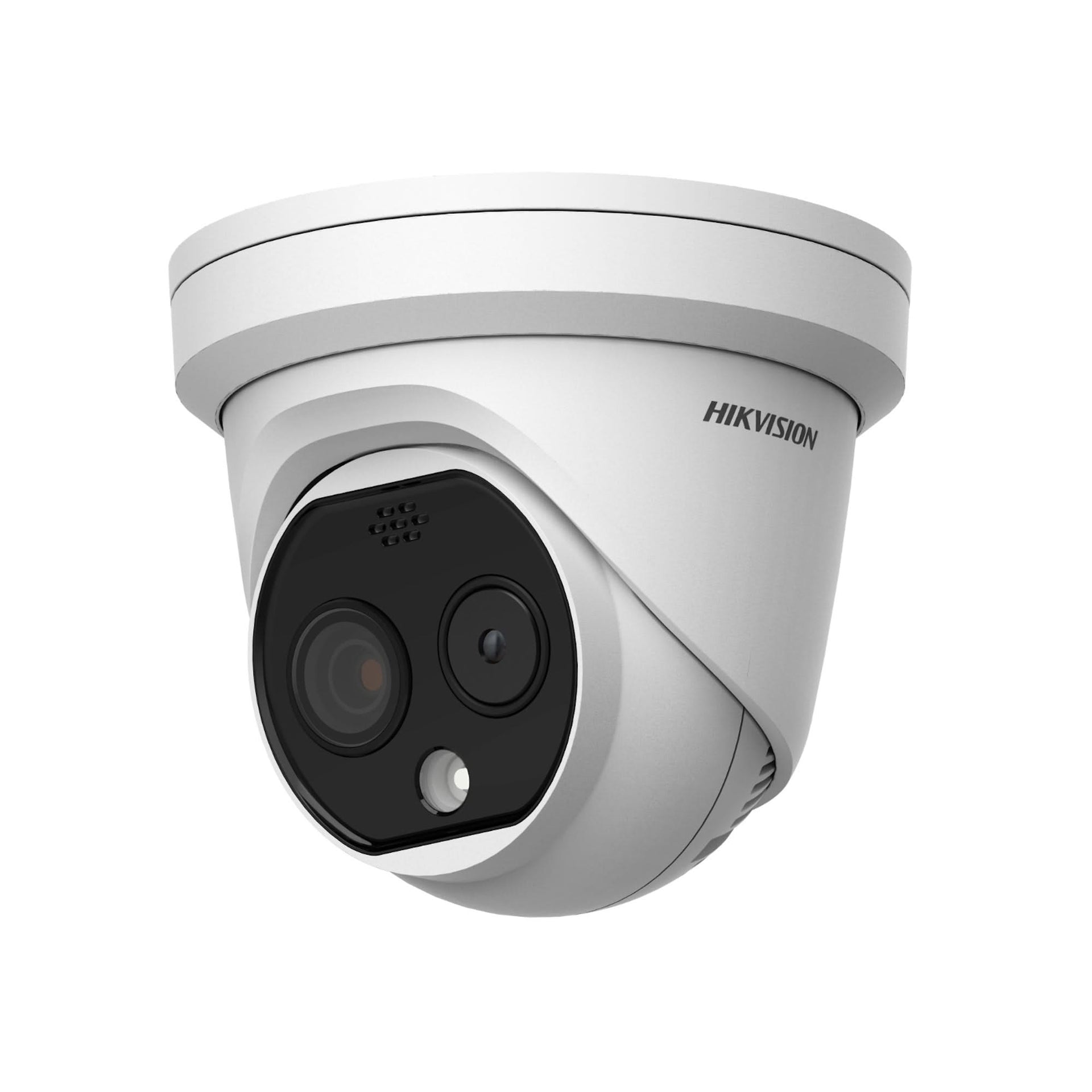

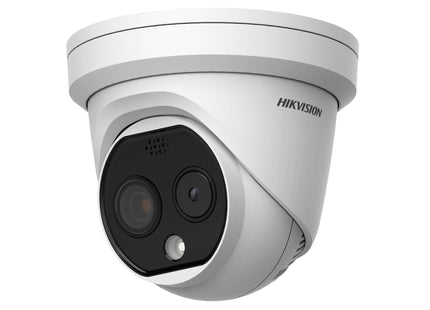

Hikvision DS-2TD1217-6/PA | Hikvision | DeepinView | Thermisch bi-spectrum | 6mm | Strobe/Audio
De Hikvision DS-2TD1217-6 is uitgerust met ingebouwde GPU die intelligente
gedragsanalyse-algoritme en zeer nauwkeurige VCA-detectie real-time kan realiseren. Het wordt toegepast op brandpreventie.
Doeleinden in binnenruimtes zoals machinekamers, geldautomaten, conferentieruimtes, magazijnen, musea, en spoorwegstations enzovoort.
Het vooralarmsysteem helpt u onverwachte gebeurtenissen onmiddellijk te ontdekken en beschermt uw eigendommen.
Kijkhoek thermische camera 25graden breed. Tevens heeft deze camera een normale camera aan boord voor normaal overzichtsbeeld. Eigenlijk is dit een 2 in 1 camera. Thermisch en IP based.
Technische Specificaties:
Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution 160 × 120 (the resolution of output image is 320 × 240)
Pixel Interval 17 μm
Response Waveband 8 μm to 14 μm
NETD Less than 40 mK (25°C), F# = 1.1
Lens (Focal Length) 6.2 mm
IFOV 2.74 mrad
Field of View 25.0° × 18.7° (H × V)
Min. Focusing Distance 0.6 m
Aperture F1.1
Optical Module
Max. Image Resolution 2688 × 1520
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
Shutter Speed 1s to 1/100,000s
Lens (Focal Length) 8 mm
Field of View 39.42° × 22.14°(H × V)
WDR 120 dB
Day & Night IR cut filter with auto switch
Image Function
Bi-spectrum Image Fusion Fusion view of thermal view and overlaid details of the optical channel
Picture in Picture
Combines details of thermal and optical image PIP, overlay thermal image on optical
Smart Function
VCA (Video Content Analysis)
4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to
8 VCA rules totally.
Temperature Measurement 3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).
Temperature Range -20 °C to +150 °C (-4 °F to +302 °F)
Temperature Accuracy ± 8 °C (± 14.4 °F)
Fire detection Dynamic fire point detection, up to 10 fire points detectable.
Infrared
IR Distance Up to 15 m
IR Intensity and Angle Automatically adjusted
Network
Main Stream
Visible Light: 50Hz: 25fps (2688 × 1520), 25fps (1920 × 1080), 25fps (1280 × 720)
Visible Light: 60Hz: 30fps (2688 × 1520), 30fps (1920 × 1080), 30fps (1280 × 720)
Thermal: 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240
Sub-Stream
Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)
Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)
Thermal: 704 × 576, 352 × 288, 320 × 240
Video Compression H.265/H.264/MJPEG
Audio Compression G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,
UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live View Up to 20
User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
Security Measures
User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x
access control, IP address filtering
Integration
Alarm Input 1-ch inputs (0-5 VDC)
Alarm Output 1-ch relay outputs, alarm response actions configurable
Alarm Action
SD recording/relay output/smart capture/FTP upload/email linkage/ audio
alarm/white light alarm
Audio Input
1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ±
10%
Audio Output Linear level; impedance: 600 Ω
Reset 1 Reset Button
Communication Interface 1, RJ45 10M/100M Self-adaptive Ethernet interface. 1, RS-485 interface
SD Memory Card
Built-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G),
supports manual/alarm recording
Analog Video Output 1.0 V [p-p]/75 Ω, PAL/NTSC
Application Programming
Open-ended API, supporting ISAPI, HIKVISION SDK, and third-party management
platform
Client iVMS-4200, Hik-Connect
Web Browser IE9+, chrome31-44, Firefox 30-51, Safari 5.02+ (mac)
General
Menu Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power
12 VDC ± 20%, two-core terminal block
PoE (802.3af, class 3)
Power Consumption
12 VDC ± 20%: 0.5 A, max. 6 W
PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 6.5 W
Working Temperature/Humidity
-40 °C to 65 °C (-40 °F to 149 °F)
95% or less
Protection Level
IP66 Standard, TVS 6000V Lightning protection, surge protection, voltage transient
protection
Dimension 138.3 mm × 138.3 mm × 123.1 mm (5.45 " × 5.45" × 4.85 ")
Weight 940 g (2.07 lb)
