Description
4K 60Hz HDMI Extender set up to 120m

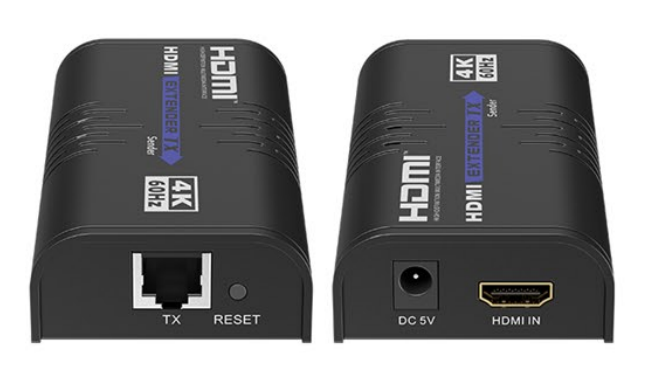

This is an HDMI™ point-to-point extender kit that achieves latency-free transmission. It can extend the 4K@60Hz HDMI™ signal up to 120 meters via a CAT6/6A/7 network cable. This kit is a reliable, ultra-high-definition video transmission solution, widely used in security surveillance, home theater, broadcasting, training, and other fields.
Specifications:
- Maximum transfer rate - 1 Gbps
- Maximum transmission bandwidth - 600 MHz
- EDID Passthrough - Yes
- Compatibility - HDMI 2.0 (Deep Color, 4K, HDR, YUV4: 4:4 HDCP 2.2
- Resolutions -
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1920x1200, 1360x768, 1366x768, 1600x900, 1024x768, 800x600
- Transmission distance - CAT6/6A/7≤120m
- Audio formats - LPCM/DTS 5.1/Dolby Digital 5.1CH
- Power Supply - TX：DC5V/2A，RX：PoC (Powered by TX)
- Power consumption - TX+RX＜5W
- Working temperature - -20℃~60℃
- Storage temperature - -30℃~70℃
- Humidity - 0~90%RH (no condensation)
- Casing - Metal
- Weight - TX：92g，RX：91g
- Color - Black
- Dimensions - 67.0(L)* 40.0(W)*23.0(H)mm
- Protection -
- ESD protection
- 1a Contact discharge level 2 (±4KV)
- 1b Air discharge level 3 (±8KV) Implementation of the standard: IEC61000-4-
- Lightning protection, Surge protection
