Description

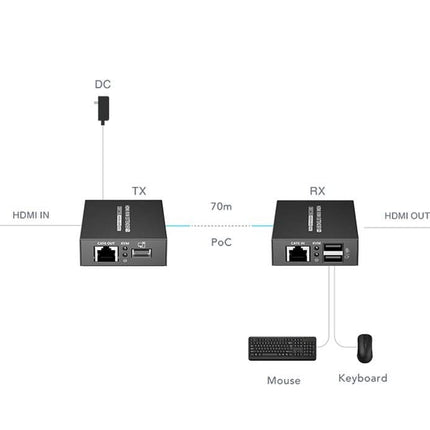

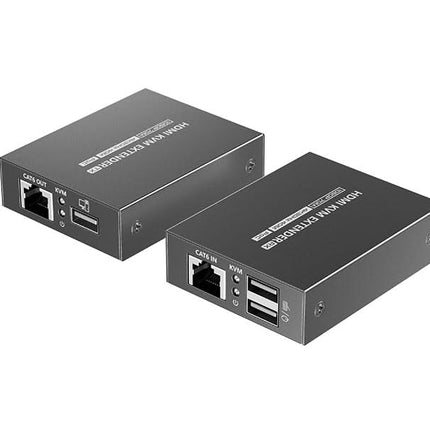

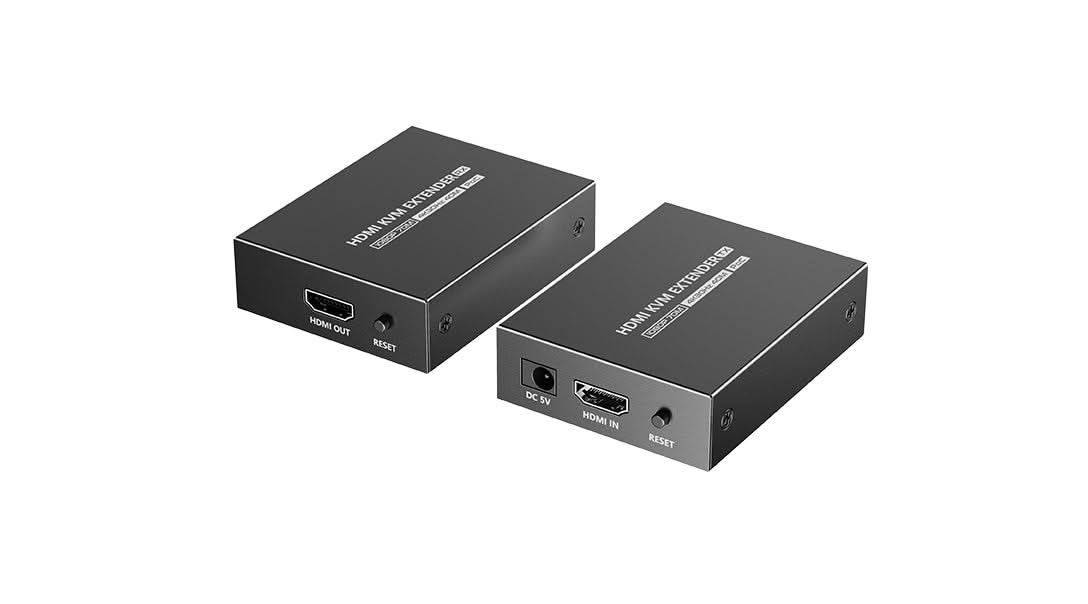

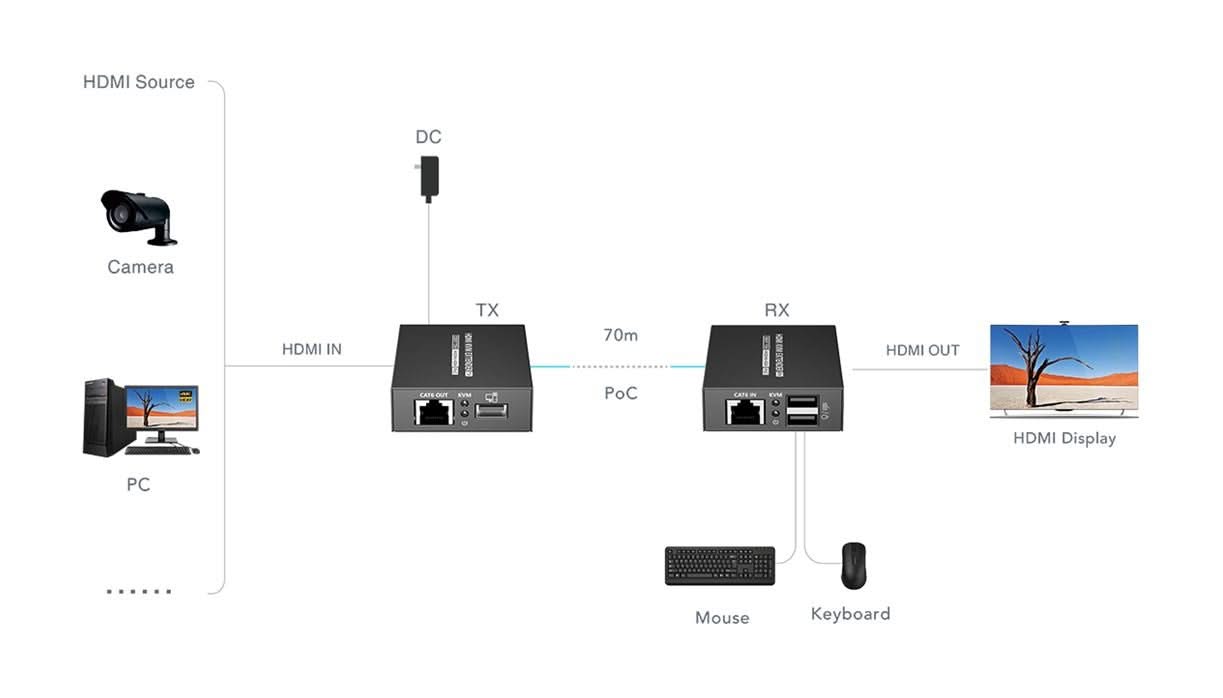

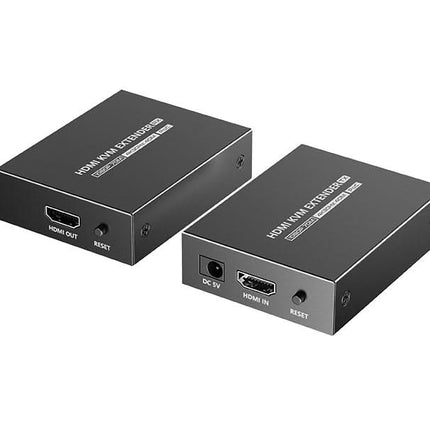

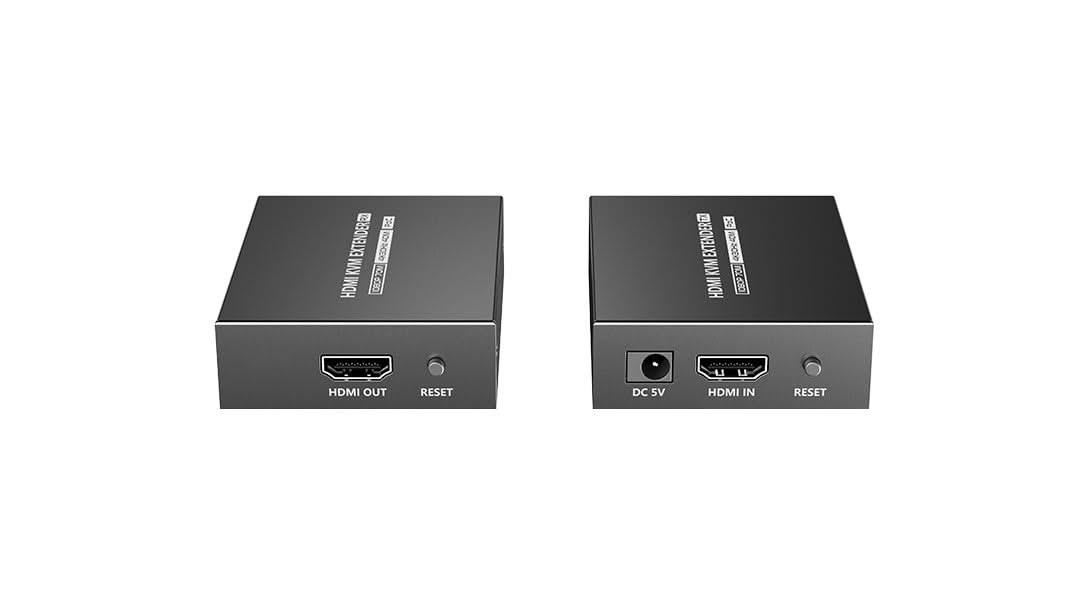

This HDMI™ KVM Extender includes a transmitter and receiver, and allows you to transmit the HDMI™ signal up to 50 meters, a mouse, and a keyboard at 4K/8 megapixel resolution using a Cat6 network cable. It uses a point-to-point connection configuration and supports KVM. It is perfect for outdoor advertising, monitor systems, home entertainment, conferencing, etc. It is also ideal for connecting an (optional) wireless mouse so you can remotely view your images on your TV.
Specifications:
- Voltage/Current - DC5V/2A (only TX power supply needed)
- Power consumption - TX+RX＜10W
- HDMI Compliance - HDMI Port 1.4
- HDCP Compliance - HDCP Version 1.4
- HDMI resolution -
800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz, 3840x2160@24/25/30Hz
- Audio formats - DTS, DTS-HD, PCM, LPCM
- HDR - Supported
- Input and output TMDS signal - 0.7~1.2 Vp-p (TMDS)
- Input and output DDC signal - 5Vp-p(TTL)
- Cat6/6A/7 -
- 1080p@60Hz transmission 70 meters
- 4K@30Hz transmission 40 meters
- ESD
- Implementation of the standard: IEC61000-4-2
- 1a Contact discharge level 2 (±4KV)
- 1b Air discharge level 3 (±8KV)
- Working temperature - -20~60℃
- Storage temperature - -30~70℃
- Humidity (no condensation) - 0～90%RH
- Dimension - 75.0 (L) x 60.0 (W) x 20 (H) mm
- Weight - TX: 123g RX: 123g
- Color - Black
