Description

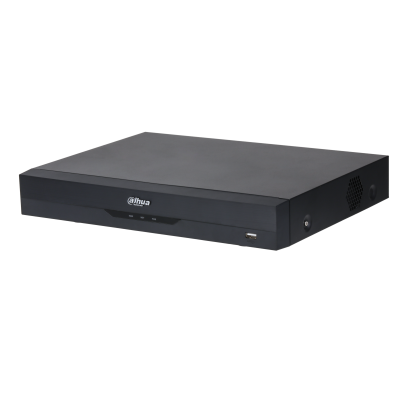

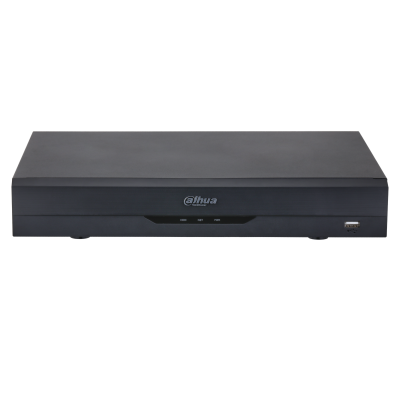

DH-XVR5108H-I3-8P, WizSense 8 Channel Penta-brid 5MP Compact 1U DVR with PoC
Penta-bridge recorder, meaning this recorder can handle up to five (!) different systems. HD-CVI, HD-AHD, TVI, IP, and even traditional analog cameras are compatible with this system.
This unique DVR is capable of recording 4K (3840x2160 resolution or lower) from eight cameras simultaneously and can power a PoC camera directly via the coaxial cable. It's equipped with many additional intelligent features, including person and vehicle detection and even facial recognition! See the datasheet for more information.
The connections are BNC and can be connected with either combicoax or UTP cabling using baluns. If you also use IP cameras, connect them to your network, preferably wired, and possibly via Wi-Fi. It's also possible to connect a second screen to display a single camera.
A superb recorder that works with all our security cameras (up to 8MP), regardless of whether they are analog, HD-CVI, HD-AHD, TVI, or IP. This makes it a perfect replacement for your existing analog system.
Specifications:
- Model Dahua XVR5108H-I3-8P
- 8 x PoC channels
- Suitable for HD-CVI, HD-AHD, TVI, Analogue and IP on all channels
- H.264+/H.264 dual-stream video compression
- All channels 4K/7F recording or lower, 5MP/12F or lower, 1080p/30F or lower
- Monitor output HDMI and VGA simultaneously
- 4 channels simultaneous playback
- Space for 1 SATA drive up to 10TB
- 3D intelligent positioning with Dahua PTZ dome cameras
- Various network monitoring options are available, such as Web Viewer, PS software CMS (DSS/Smart PSS) and of course your mobile phone (DMSS for iPhone and Android).
- Supplied without hard drive (can be ordered separately)
- Audio recording also possible
- Motion detection on every camera
- Includes mouse and 12V power supply
- Fan on processor: No
- Cabinet fan: Yes
- Dimensions 325mm×257mm×55mm
