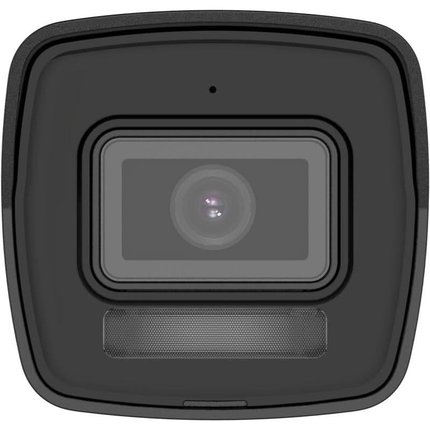

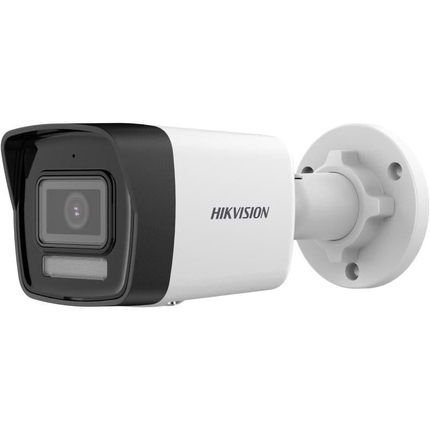

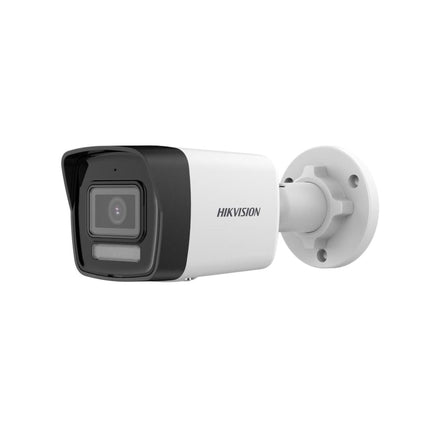

DS-2CD1043G2-LIU, 4 MP Smart Hybrid Light, PoE, Built-in Microphone

Description

This IP camera, featuring an efficient H.265/H.264 image compression algorithm, delivers clear and smooth video transmission with a maximum resolution of 4 MP. PoE power capability, compliant with the 802.3af standard, makes the device even more versatile and easier to install. The camera is IP67 rated. It features Smart Hybrid Light technology, allowing users to choose between white light and IR (infrared) mode. When Smart Hybrid Light is enabled, the white light automatically switches on only when an object is detected in the monitored area. This effectively improves image quality.

Specifications:

  • Image sensor :

    • 1/3" Progressive Scan CMOS

  • Maximum Resolution :

    • 2560 × 1440

  • Minimum Exposure :

    • Color: 0.005 Lux @ (F1.6, AGC ON)
    • Black/White: 0 Lux with IR

  • Shutter speed :

    • 1/3 s to 1/100,000 s

  • Day and Night :

    • IR Cut filter

  • Angle settings :

    • Pan: 0° to 360°
    • Tilt: 0° to 90°
    • Rotation: 0° to 360°

  • Lens :

    • Lens Type : Fixed focus lens, choice of 2.8mm and 4mm
    • Focal Length & Field of View (FOV) :
      • 2.8 mm: horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
    • Lens mounting : M12
    • Aperture : F1.6

  • DORI (Detection, Observation, Recognition, Identification) :

    • 2.8 mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m

  • Relief :

    • Type of additional lighting : IR, White light
    • Range of supplementary lighting : Up to 30 m
    • Smart supplementary lighting : Yes
    • IR Wavelength : 850 nm

  • Video :

    • Main stream :
      • 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)
      • 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
    • Sub-stream :
      • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
      • 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
    • Video compression :
      • Main stream: H.265+/H.265/H.264+/H.264
      • Substream: H.265/H.264/MJPEG
    • Video bitrate : 32 Kbps to 8 Mbps
    • Bitrate Control : CBR, VBR
    • Region of Interest (ROI) : 1 fixed region for main stream

  • Audio :

    • Audio Type : Mono sound
    • Ambient noise filtering : Yes
    • Audio Sampling Rate : 8kHz/16kHz
    • Audio Compression : G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
    • Audio bit rate :
      • 64 Kbps (G.711 ulaw/alaw)
      • 16 Kbps (G.722.1, G.726)
      • 32 to 160 Kbps (MP2L2)
      • 16 to 64 Kbps (AAC-LC)

  • Network :

    • Security :
      • Password protection, complex password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface
      • Security audit log, host authentication (MAC address)
    • Simultaneous Live View : Up to 6 channels
    • API : Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supported)), ISAPI, SDK
    • Protocols : TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
    • Users/Hosts : Up to 32 users, 3 user levels: administrator, operator, and user
    • Client : iVMS-4200, Hik-Connect
    • Web browser : Plugin required for live view: IE 10, IE 11, local service: Chrome 57.0+, Firefox 52.0+

  • Image :

    • Wide Dynamic Range (WDR) : 120 dB
    • SNR (Signal to Noise Ratio) : ≥ 52 dB
    • Day/Night Switch : Day, Night, Auto, Schedule
    • Image Enhancement : BLC, HLC, 3D DNR
    • Image Settings : Rotation mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable via client software or web browser
    • Privacy Mask : 4 programmable polygon privacy masks

  • Interface :

    • Ethernet Interface : 1 RJ45 10M/100M self-adaptive Ethernet port
    • Built-in Microphone : Yes

  • Events :

    • Basic Events :
      • Motion detection (supports alarm triggering by specific target species such as humans and vehicles)
      • Video manipulation alarm
      • Exception
    • Linkage :
      • Upload to FTP, send email, notifications to surveillance station, activate recording

  • General :

    • Power supply :
      • 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power connector, reverse polarity protection
      • PoE: IEEE 802.3af, Class 3, max. 6.5 W
    • Material : Metal & Plastic
    • Dimensions : 170.8mm × 66mm × 69.1mm
    • Package dimensions : 216 mm × 121 mm × 118 mm
    • Weight : Approximately 270 g
    • Weight with Packaging : Approximately 481 g
    • Storage conditions : -30 °C to 60 °C, humidity ≤ 95% (non-condensing)
    • Starting and Operating Temperatures : -30 °C to 60 °C, Humidity ≤ 95% (non-condensing)
    • Languages : English
    • General Features : Heartbeat, Anti-banding, Mirror Mode, Password Protection, Password Recovery via Email
