Description

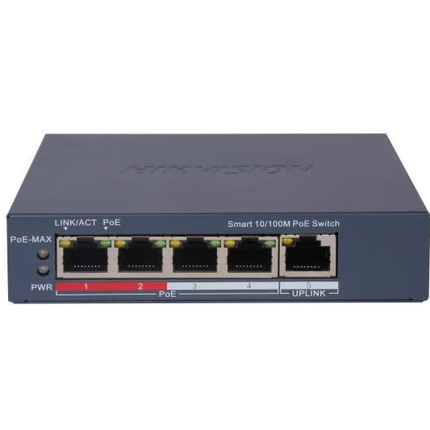

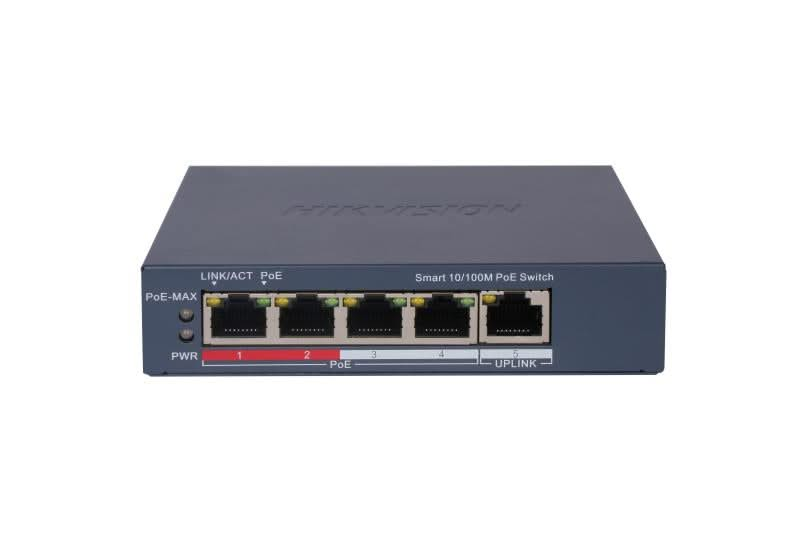

The Hikvision DS-3E1105P-EI is a powerful and reliable 5-port 100Mb PoE switch, designed to meet the needs of both small and medium-sized networks. This model offers 4 PoE (Power over Ethernet) ports, allowing you to power network devices such as IP cameras, phones, and access points via the Ethernet cable without needing a separate power source.
The Hikvision DS-3E1105P-EI is ideally suited for use in security systems, small business environments, home networks, and other locations where PoE devices such as IP cameras, Wi-Fi access points, or VoIP phones need to be installed.
With the Hikvision DS-3E1105P-EI, you get a reliable, cost-effective, and energy-efficient network solution, ideal for connecting multiple PoE-enabled devices without the need for additional power sources.
Specifications:
General
- Casing: Metal material
- Net Weight: 0.26 kg (0.573 lb)
- Gross Weight: 0.75 kg (1.65 lb)
- Dimensions (W × H × D): 121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
- Operating temperature: 0°C to 40°C (32°F to 104°F)
- Storage temperature: -40°C to 85°C (-40°F to 185°F)
- Operating humidity: 5% to 95% (without condensation)
- Relative Humidity: 5% to 95% (without condensation)
- Power supply: 54VDC, 1.2A
- Installation Mode: Desk Mounted, Wall Mounted
- Max. Power consumption: 65 W
- Idle power consumption: 0.9 W
- Voltage protection: 6 KV
Network parameters
- Ports: 4 × 10/100 Mbps PoE ports, 1 × 10/100 Mbps RJ45 port
- MAC Address Table: 2 K
- Switching Capacity: 1 Gbps
- Packet Forwarding Speed: 0.74 Mpps
- Internal Cache: 768 Kbits
PoE Power Supply
- PoE Standard: IEEE 802.3af, IEEE 802.3at
- PoE Power Pin: End-span: 1/2(-), 3/6(+)
- PoE Ports: PoE: Ports 1 to 4
- Max. Port Power: 30 W
- PoE Power Budget: 60 W
