DS-7604NXI-K1 4 channels 4K without POE

Description

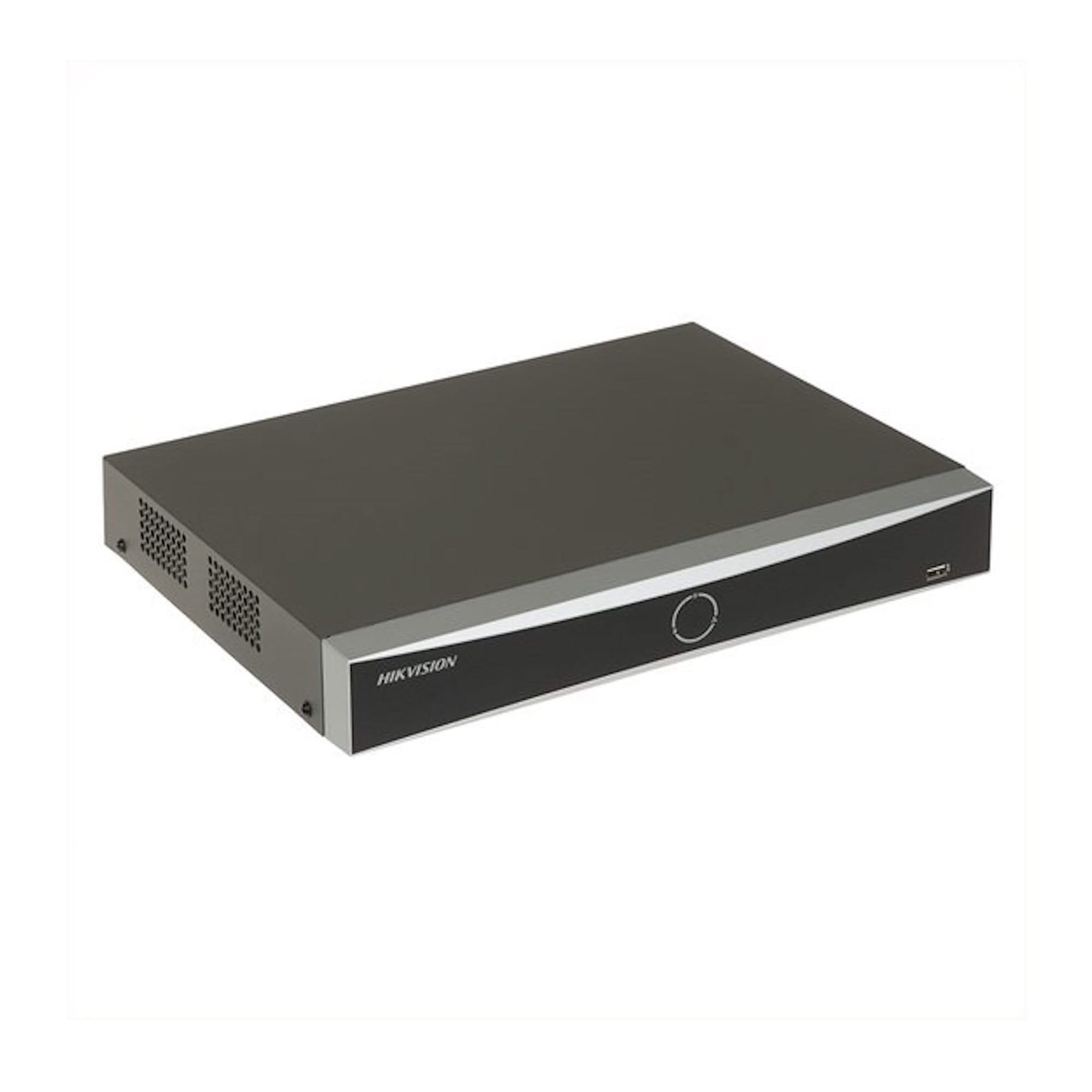

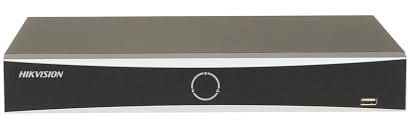

The Hikvision DS-7604NXI-K1 Network Video Recorder is a 4-channel Acusense recorder. Acusense is a technology that allows the recorder to recognize and record people and/or vehicles on all connected cameras. This reduces unnecessary recordings, such as recordings of blowing leaves. The recorder is equipped with an HDMI output for connecting to a TV or monitor, a network output for connecting to the network/APP, and a 1x SATA connection for a hard drive (not included as standard; select below). The recorder can record cameras connected to the network (PoE switch required).

Hikvision AcuSense NVR, a 4-channel IP camera up to 12MP, features human and vehicle classification for motion detection (MD2.0) on 4 channels, fast target search, and 1-channel facial recognition (video stream) or 2-channel facial recognition with photos.

This recorder with Acusense technology can apply Acusense technology to simple cameras.

This can be useful for older Hikvision IP cameras and the newer Acusense, allowing people or vehicles to be identified for recording and/or push notifications. Regular recorders with simple cameras, for example, cannot distinguish moving trees from people or vehicles, resulting in a lot of dummy footage. It's therefore a very helpful technique that allows for targeted recording of people and/or vehicles.

Specifications:

  • Intelligent analyses
  • Per-Device AI - Facial Recognition, Perimeter Security, Motion Detection 2.0
  • AI via camera - Facial recognition, perimeter security, throwing objects from buildings, motion detection 2.0, ANPR, VCA

    Facial recognition
  • Facial features - N/A
  • Face Detection and Analysis - Face Photo Comparison, Human Face Capture, Face Photo Search
  • Face Photo Library - Up to 16 face photo libraries, with a total of up to 5,000 face photos (each photo ≤ 1MB, total capacity ≤ 73MB)
  • Face Detection and Analysis Performance - 1-channel, 4 MP
  • Face Photo Comparison (Captured from Camera) - 2-Channel

    Motion detection 2.0
  • Per device - All channels, 4MP (when enhanced SVC mode is enabled, up to 8MP) video analytics for human and vehicle recognition to reduce false alarms
  • Via camera - All channels

    Perimeter protection
  • Per device - 1-channel, 4MP (HD network camera, H.264/H.265) video analytics for human and vehicle recognition to reduce false alarms
  • Via camera - All channels

    Video and audio
  • IP video input - 4 channels
  • Incoming bandwidth - 40 Mbps
  • Outgoing bandwidth - 80 Mbps
  • HDMI Output – 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz VGA Output 1-ch, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Video Output Mode - HDMI1/VGA simultaneous output is default, HDMI1/VGA can be set to independent
  • CVBS Output - N/A
  • Audio Output - 1-channel, RCA (linear, 1 KΩ)
  • Two-way audio - 1-channel, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

    Decoding
  • Decoding format - H.265/H.265+/H.264+/H.264
  • Recording resolution - 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous display - 4 channels
  • Decoding capabilities -
    - AI on: 1ch@12 MP (30fps)/1ch@8MP (30fps)/3ch@4MP (30fps)/6ch@1080p (30fps)
    - AI off: 1-ch at 12 MP (30 fps) / 2-ch at 8 MP (30 fps) / 4-ch at 4 MP (30 fps) / 8-ch at 1080p (30 fps)
  • Stream type - video, video and audio
  • Audio Compression - G.711ulaw/G.711alaw/G.722/G.726/AAC

    Network
  • Remote Connection - 128
  • API - ONVIF (profile S/G); SDK; ISAPI
  • Compatible browser - IE11, Chrome V57, Firefox V52, Safari V12, Edge V89 or later
  • Network protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network interface - 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface

    PoE
  • Interface - 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power - ≤ 50 W
  • Standard - IEEE 802.3af/at

    Help interface
  • SATA - 1 SATA interface
  • Capacity - Up to 10TB capacity for each HDD
  • USB interface
    - Front panel: 1 × USB 2.0;
    - Rear panel: 1 × USB 2.0
  • Alarm on/off - N/A (4/1 is optional)

    General
  • Power supply - 12 VDC, 1.5 A
  • Consumption - ≤ 10 W (without HDD)
  • Operating Temperature - -10°C to 55°C (14°F to 131°F)
  • Operating humidity - 10% to 90%

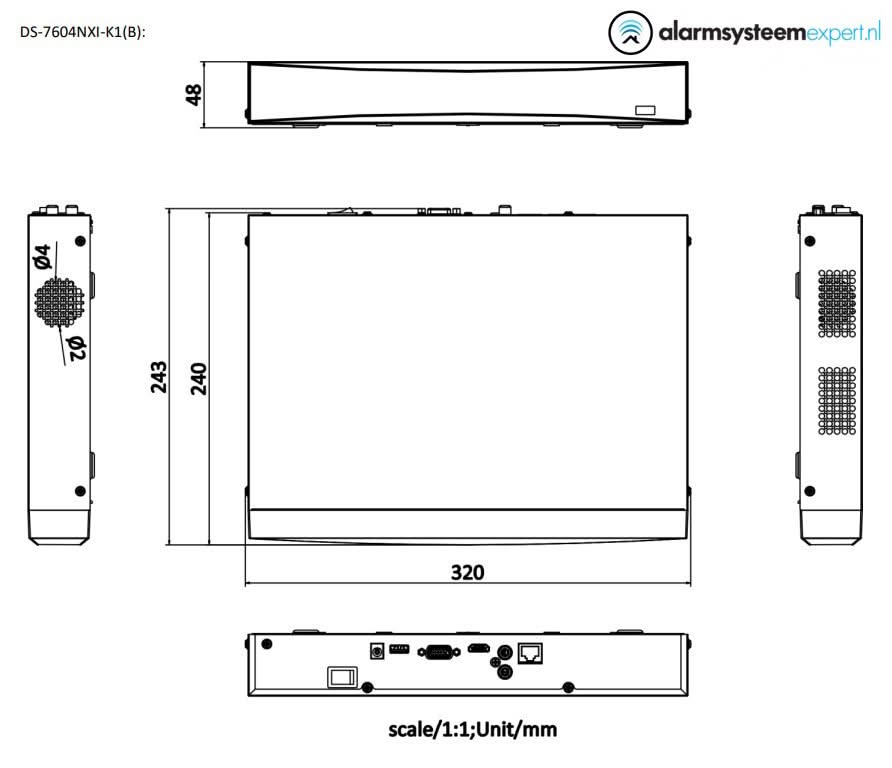

  • Dimensions - (W × D × H) 320 mm × 240 mm × 48 mm (12.6" × 9.4" × 1.9")
  • Weight - ≤ 1 kg (without HDD, 2.2 lb.)
  • Certification - CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 Certifications CE, CB, KC, Reach, WEEE, RCM, UKCA, LOA achieved
