Description

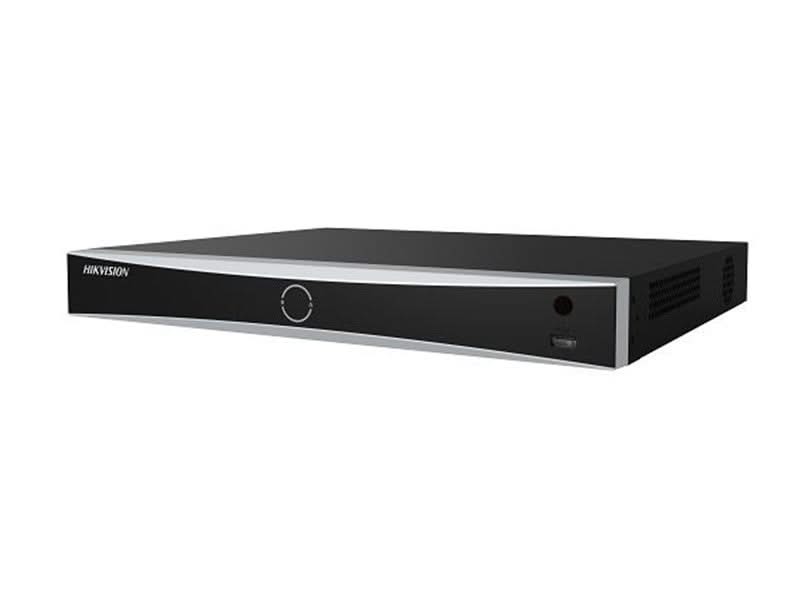

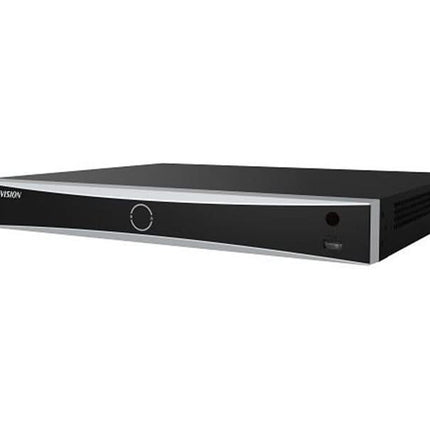

DS-7716NXI-I4/16P/S AcuSense NVR 16 channel 4K recorder, up to 12mp, 4x SATA, 16x PoE
FYI: Recorders have fans on board that cool the processor, these make noise!
This is approximately 60Db. We therefore advise not to place the recorder inside the house, but to conceal it in a meter cupboard, for example.
The AcuSense NVR is a powerful recorder capable of resolutions up to 12MP. The recorder features AcuSense technology. AcuSense is an advanced algorithm capable of recognizing vehicles and people, enabling highly accurate detection. This intelligent functionality can be applied to up to four cameras with a maximum resolution of 4MP. Because the intelligence is built into the recorder, AcuSense technology can be used with standard cameras.
Specifications:
- Intelligent analyses
- AI by NVR - Facial Recognition, Perimeter Security, Motion Detection 2.0
- AI via camera - Facial recognition, perimeter security, video structuring, building object removal, motion detection 2.0, ANPR, people counting, VCA
- Engine - 1, enignemodus is adjustable
Facial recognition
- Face Detection and Analysis - Face Photo Comparison, Human Face Capture, Face Photo Search
- Facial features - Wearing glasses, wearing a mask, facial expression, body temperature
- Face Photo Library - Up to 16 face photo libraries, with a total of up to 50,000 face photos (each photo ≤ 512 KB, total capacity ≤ 1 GB)
- Face Photo Comparison (Captured from Camera) - 8-Channel
- Face Detection and Analysis Performance - 4-Channel Human Face Recording (HD Network Camera, up to 8 MP, H.264/H.265)
Motion detection 2.0
- By NVR - All channels for Hikvision cameras
- Via camera - All channels
Perimeter protection
- By NVR - 4-channel, 2 MP (H.264/H.265) video analysis to recognize people and vehicles, reduce false alarms; Up to 12 lines in total
- Via camera - All channels
ANPR
- Via camera - All channels
- Vehicle characteristics - License plate, license plate color, license plate type
- Plate attributes - Vehicle make, vehicle color, vehicle type
Video and audio
- IP Video Input - 16 Channels
- Incoming bandwidth - 160 Mbps
- Outgoing bandwidth - 256 Mbps
- HDMI 1 output - 4K
- HDMI 2 output - 4K
- VGA Output - 1920 x 1080
- Video Output Mode - HDMI1/VGA simultaneous output, HDMI2/VGA independent output
- CVBS Output - 1-channel, BNC (1.0 Vp-p, 75 Ω), Resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output - 1-channel, RCA (linear, 1 KΩ)
- Two-way audio - 1-channel, RCA (2.0 Vp-p, 1 KΩ)
Decoding
- Decoding format - H.265+/H.265/H.264+/H.264
- Synchronous display - 16 channels
- Decoding capabilities -
- Enable AI via NVR: 20 channels at 1080p (30 fps)
- Disable AI via NVR: 32ch@1080p (30fps)
- Dual-stream recording support
- Stream type - video, video and audio
- Audio Compression - G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

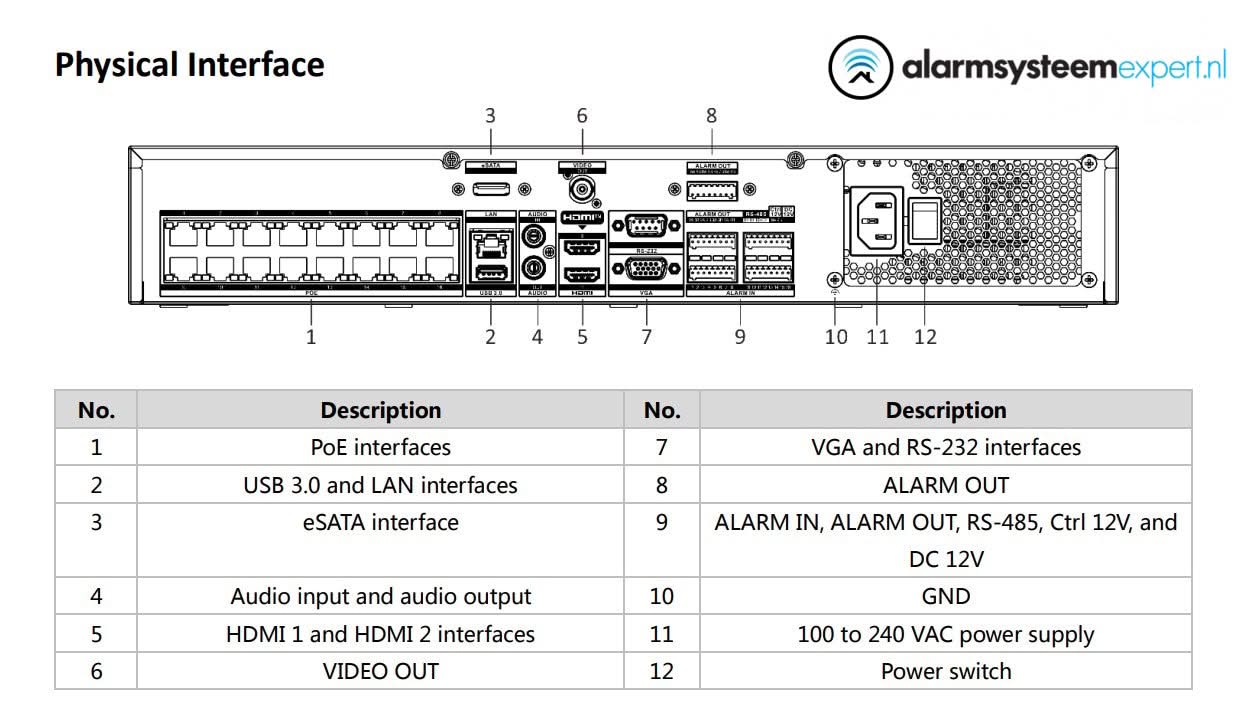

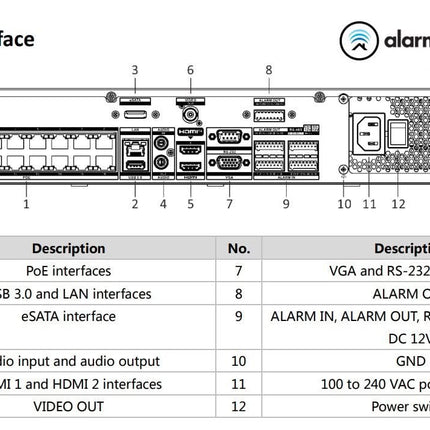

Network
- Network Interface - 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Network Protocol - TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- API - ONVIF (profile S/G); SDK; ISAPI
- Compatible browser - IE11, Chrome V57, Firefox V52, Safari V12, Edge V89 or later
PoE
- Interface - 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power - ≤ 200 W
- Standard - IEEE 802.3 af/at
Help interface
- SATA - 4 SATA interfaces
- eSATA - 1 eSATA interface
- Capacity - Up to 10TB capacity for each drive
- Alarm on/off - 16/9
- USB Interface - Front Panel: 2 × USB 2.0; Rear Panel: 1 × USB 3.0
- Control - 12V Adjustable 12 VDC, 0.5 A output power for external alarm device.
- DC 12V - 12 VDC, 1 A output power
General
- Power supply - 100 to 240 VAC, 50 to 60 Hz
- Consumption - ≤ 30 W (without HDD and PoE off)
- Operating Temperature - -10° C to 55° C (14° F to 131° F)
- Operating humidity - 10% to 90%
- Chassis - 19-inch rack-mounted 1.5U chassis

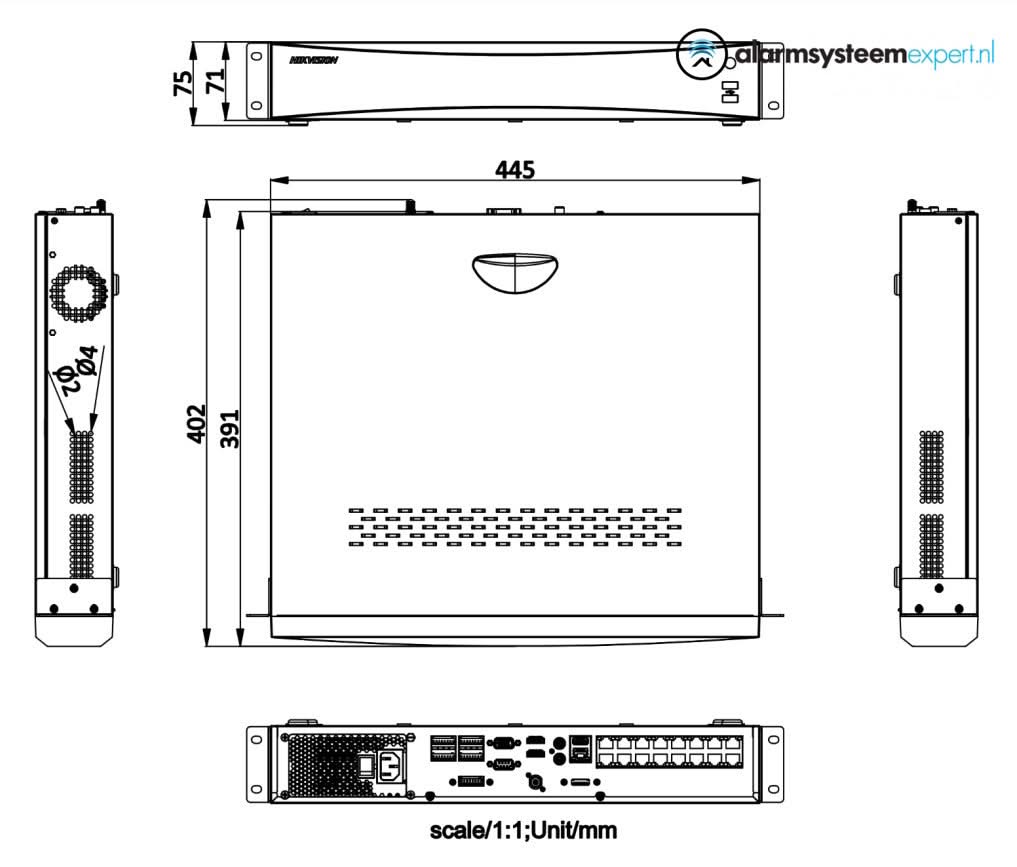

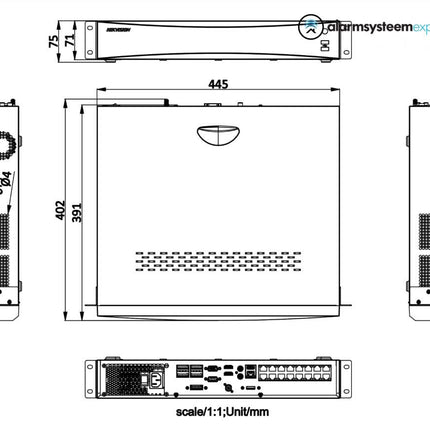

- Dimensions - (W × D × H) 440 × 391 × 75 mm (17.3" × 15.4" × 3.0")
- Weight - ≤ 3.6 kg (without HDD, 7.9 lb.)
