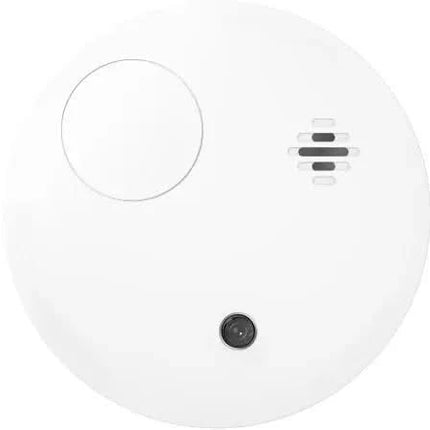

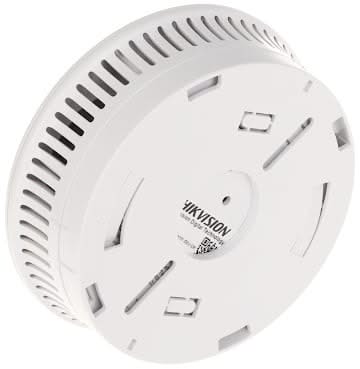

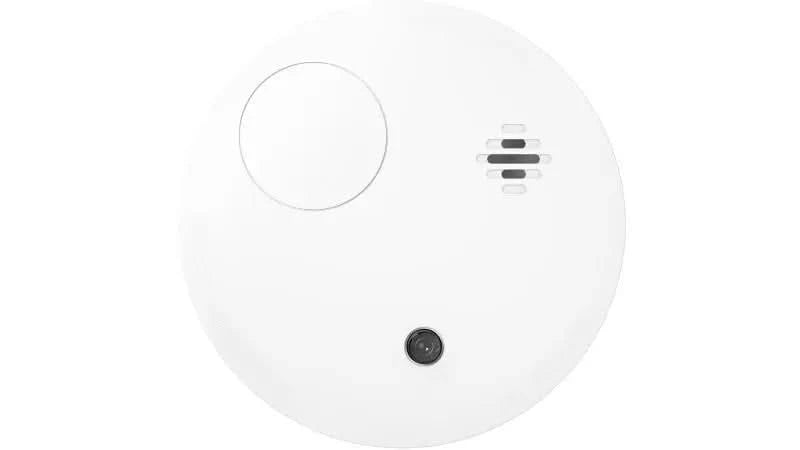

DS-PDSMK-E-WE Wireless optical smoke detector

Description

Key Features:

The DS-PDSMK-E-WE is a fully monitored two-way wireless optical smoke detector for the AX PRO system , with built-in siren and the smoke detector complies with the EN14604 standard.

Optical smoke detectors, also called photoelectric smoke detectors, are less prone to false alarms than standard smoke detectors (ionization) and are slightly faster at detecting slow, smoldering fires that often produce a lot of smoke. This type of fire is usually caused by cladding or overheated wiring.

The detector can operate on battery power for up to 10 years.

Frequency band operation: 868 MHz
Wireless range: Up to 1600m (in open field)
Wireless technology: Tri-X
Wireless security: AES-128
Siren: ≥ 85 dB @ 3m
Alarm LED: red
Battery: 2 x L91 battery (non-replaceable)
1x CR123A battery for RF communication (replaceable)
Battery life: 10 years (detector)
5 years (RF communications)
Operating temperature: -10…+50 °C
Storage temperature: -20…+60 °C
Maximum humidity: 10 to 90%
Dimensions: Ø120 x 48 mm
Weight: 190.5 g
According to EN 14604: Yes

DS-PDSMK-E-WE Wireless optical smoke detector

Product form
Free pickup in our shop(s)

€98,00 Incl. VAT

      • Free shipping from 99,-
      • Free returns within 30 days

      Description

      Key Features:

      The DS-PDSMK-E-WE is a fully monitored two-way wireless optical smoke detector for the AX PRO system , with built-in siren and the smoke detector complies with the EN14604 standard.

      Optical smoke detectors, also called photoelectric smoke detectors, are less prone to false alarms than standard smoke detectors (ionization) and are slightly faster at detecting slow, smoldering fires that often produce a lot of smoke. This type of fire is usually caused by cladding or overheated wiring.

      The detector can operate on battery power for up to 10 years.

      Frequency band operation: 868 MHz
      Wireless range: Up to 1600m (in open field)
      Wireless technology: Tri-X
      Wireless security: AES-128
      Siren: ≥ 85 dB @ 3m
      Alarm LED: red
      Battery: 2 x L91 battery (non-replaceable)
      1x CR123A battery for RF communication (replaceable)
      Battery life: 10 years (detector)
      5 years (RF communications)
      Operating temperature: -10…+50 °C
      Storage temperature: -20…+60 °C
      Maximum humidity: 10 to 90%
      Dimensions: Ø120 x 48 mm
      Weight: 190.5 g
      According to EN 14604: Yes
