DS-2DF8836IX-AEL | 8 Megapixel | Indoor/Outdoor | Night Vision | 36x Zoom | Smart Tracking

Description

DS-2DF8836IX-AEL | 8 Megapixel | Indoor/Outdoor | Night Vision | 36x Zoom | Smart Tracking

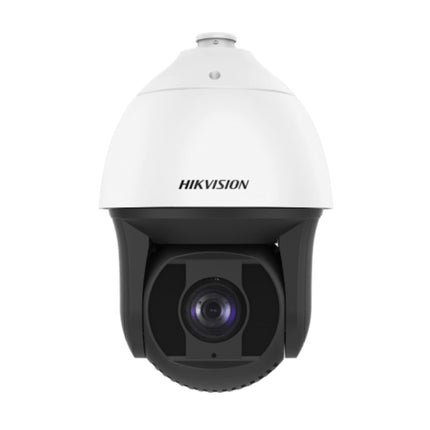

Hikvision Darkfighter PTZ camera:
The Hikvision Darkfighter PTZ cameras are capable of producing high-quality color images in low-light conditions, starting at 0.002 lux (color). The camera also features True WDR (120dB) and provides 8MP images. With its 36X optical zoom Day/Night lens, the camera offers greater detail over large areas. A unique feature of this PTZ camera is its 20-degree horizontal rotation, allowing the PTZ to rotate upwards even when zoomed in to provide optimal images.

Smart Features:
The Darkfighter PTZ camera also features a wide range of smart features, such as facial recognition, intrusion detection, and crossline detection. These features are combined with smart tracking, allowing the camera to detect and track even gradually moving objects. Smart anti-fog and EIS (Electronic Image Stabilization) are also used to improve image quality in challenging conditions. The Darkfighter Smart PTZ opens up new possibilities for 24/7 camera surveillance.

Intelligent Rapid Focus
The intelligent Rapid Focus function ensures that any location in the image can be sharply focused at lightning speed. By focusing at all points in the image and saving these parameters, the PTZ can move to any location and focus instantly from memory. This lightning-fast focusing technique is aptly called Rapid Focus.

Specifications:

  • 2/3” HD CMOS sensor
  • Up to 4096 × 2160 resolution
  • 36X Optical Zoom
  • Min. Illumination: Color: 0.005 Lux @(F1.5, AGC ON) B/W: 0.0005 Lux @(F1.5, AGC ON) 0 Lux with IR
  • Smart Tracking
  • Smart Detection
  • 200m IR distance
  • Optional wiper(-W)
  • Hi-PoE / 24VAC power supply
  • Support H.265+/H.265 video compression
  • Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection
  • Rapid focus
  • IP67, IK10
Camera
Image Sensor: 2/3" progressive scan CMOS
Effective Pixels: 4096x2160
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.005 Lux @(F1.5, AGC ON)
B/W: 0.0005 Lux @(F1.5, AGC ON)
0 Lux with IR
AGC: Auto/Manual
BLC: ON/OFF
HLC: Support
Smart defog: Support
WDR: DWDR
Shutter Time: 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
Day & Night: ICR
Digital Zoom: 16X
Privacy Masking: 24 privacy masks programmable
Auto Focus: Auto / Semi-automatic / Manual
Lens
Focal Length: 7.5mm to 270mm, 36× Optical
Zoom Speed: Approx. 7.8 s (optical lens, wide-telephoto)
Angle of View: Horizontal field of view: 56.1° to 2.0° (wide-tele)
Vertical field of view: 33.4° to 1.1° (wide-tele)
Diagonal field of view: 62.9° to 2.3° (wide-tele)
Minimum Working Distance: 10-1500mm(Wide-Tele)
Aperture Range: F1.5~F4.5
Pan & Tilt
Pan Range: 360° endless
Pan Speed: Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s
Tilt Range: -20°~90°(Auto Flip)
Tilt Speed: Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: 300
Patrol: 8 patrols, up to 32 presets per patrol
Pattern: 4 patterns, with the recording time not less than 10 minutes per pattern
Power-off Memory: Support
Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display: ON/OFF
Smart tracking: Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger
Wiper: Optional
Infrared
IR irradiation distance: 200m
IR irradiation angle: Adjustable by zoom
Alarm
Alarm Input: 7 Inputs
Alarm Output: 2
Alarm Actions: Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel
Network
Ethernet: 10Base-T, /100Base-TX, RJ45 Connector
Sub Stream: 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream: 50Hz: 25fps(704×576, 640×480, 352×288);
60Hz: 30fps(704×480, 640×480, 352×240)
Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
ROI encoding: Support
Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Mode: OFF/Audio input/Audio output
Number of Simultaneous Users: Up to 20 users
Three-Stream: Support
Mini SD Card: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Security Measures: User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering
Client GUI
Camera Control: Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display: Time: Week: Date, 6 formats on the Client
Client: Support iVMS-4200
Web Browser: IE 7+, Chrome 18 - 42, Firefox 5.0+, Safari 5.02+
General
RS-485 Protocols: HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power Supply: 24 VAC & Hi-PoE
Power Consumption: 24 VAC (Max. 60 W)
Hi-PoE (Max. 50 W)
Working Temperature/Humidity: -40°C ~ 65°C (-40°F ~ 149°F)
Protection Level: IP67 Standard, IK10 (only supported by camera without wiper), TVS 6,000V Lightning Protection, Surge Protection and Voltage Transient Protection

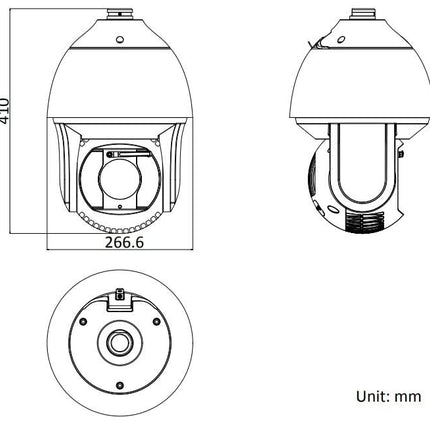

Dimensions: Φ 266.6 mm × 410 mm (Φ 10.50" × 16.14")
Weight (approx.): 8kg (approx. 17.64lb)

DS-2DF8836IX-AEL | 8 Megapixel | Indoor/Outdoor | Night Vision | 36x Zoom | Smart Tracking

Product form
Free pickup in our shop(s)

€5.990,00 Incl. VAT

    • Shipped today? Order within: Oct 26, 2025 17:00:00 +0100
    • Free shipping from 99,-
    • Free returns within 30 days

    Description

    DS-2DF8836IX-AEL | 8 Megapixel | Indoor/Outdoor | Night Vision | 36x Zoom | Smart Tracking


    Hikvision Darkfighter PTZ camera:
    The Hikvision Darkfighter PTZ cameras are capable of producing high-quality color images in low-light conditions, starting at 0.002 lux (color). The camera also features True WDR (120dB) and provides 8MP images. With its 36X optical zoom Day/Night lens, the camera offers greater detail over large areas. A unique feature of this PTZ camera is its 20-degree horizontal rotation, allowing the PTZ to rotate upwards even when zoomed in to provide optimal images.

    Smart Features:
    The Darkfighter PTZ camera also features a wide range of smart features, such as facial recognition, intrusion detection, and crossline detection. These features are combined with smart tracking, allowing the camera to detect and track even gradually moving objects. Smart anti-fog and EIS (Electronic Image Stabilization) are also used to improve image quality in challenging conditions. The Darkfighter Smart PTZ opens up new possibilities for 24/7 camera surveillance.

    Intelligent Rapid Focus
    The intelligent Rapid Focus function ensures that any location in the image can be sharply focused at lightning speed. By focusing at all points in the image and saving these parameters, the PTZ can move to any location and focus instantly from memory. This lightning-fast focusing technique is aptly called Rapid Focus.

    Specifications:

    • 2/3” HD CMOS sensor
    • Up to 4096 × 2160 resolution
    • 36X Optical Zoom
    • Min. Illumination: Color: 0.005 Lux @(F1.5, AGC ON) B/W: 0.0005 Lux @(F1.5, AGC ON) 0 Lux with IR
    • Smart Tracking
    • Smart Detection
    • 200m IR distance
    • Optional wiper(-W)
    • Hi-PoE / 24VAC power supply
    • Support H.265+/H.265 video compression
    • Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection
    • Rapid focus
    • IP67, IK10
    Camera
    Image Sensor: 2/3" progressive scan CMOS
    Effective Pixels: 4096x2160
    Signal System: PAL/NTSC
    Minimum Illumination: Color: 0.005 Lux @(F1.5, AGC ON)
    B/W: 0.0005 Lux @(F1.5, AGC ON)
    0 Lux with IR
    AGC: Auto/Manual
    BLC: ON/OFF
    HLC: Support
    Smart defog: Support
    WDR: DWDR
    Shutter Time: 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
    Day & Night: ICR
    Digital Zoom: 16X
    Privacy Masking: 24 privacy masks programmable
    Auto Focus: Auto / Semi-automatic / Manual
    Lens
    Focal Length: 7.5mm to 270mm, 36× Optical
    Zoom Speed: Approx. 7.8 s (optical lens, wide-telephoto)
    Angle of View: Horizontal field of view: 56.1° to 2.0° (wide-tele)
    Vertical field of view: 33.4° to 1.1° (wide-tele)
    Diagonal field of view: 62.9° to 2.3° (wide-tele)
    Minimum Working Distance: 10-1500mm(Wide-Tele)
    Aperture Range: F1.5~F4.5
    Pan & Tilt
    Pan Range: 360° endless
    Pan Speed: Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s
    Tilt Range: -20°~90°(Auto Flip)
    Tilt Speed: Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s
    Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
    Number of Preset: 300
    Patrol: 8 patrols, up to 32 presets per patrol
    Pattern: 4 patterns, with the recording time not less than 10 minutes per pattern
    Power-off Memory: Support
    Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
    PTZ Position Display: ON/OFF
    Smart tracking: Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger
    Wiper: Optional
    Infrared
    IR irradiation distance: 200m
    IR irradiation angle: Adjustable by zoom
    Alarm
    Alarm Input: 7 Inputs
    Alarm Output: 2
    Alarm Actions: Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel
    Network
    Ethernet: 10Base-T, /100Base-TX, RJ45 Connector
    Sub Stream: 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
    Third Stream: 50Hz: 25fps(704×576, 640×480, 352×288);
    60Hz: 30fps(704×480, 640×480, 352×240)
    Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
    Sub-Stream: H.265/H.264/MJPEG
    Third Stream: H.265/H.264/MJPEG
    ROI encoding: Support
    Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
    Audio Mode: OFF/Audio input/Audio output
    Number of Simultaneous Users: Up to 20 users
    Three-Stream: Support
    Mini SD Card: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
    Security Measures: User authentication (ID and PW),
    Host authentication (MAC address)
    IP address filtering
    Client GUI
    Camera Control: Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
    Date & Time Display: Time: Week: Date, 6 formats on the Client
    Client: Support iVMS-4200
    Web Browser: IE 7+, Chrome 18 - 42, Firefox 5.0+, Safari 5.02+
    General
    RS-485 Protocols: HIKVISION, Pelco-P, Pelco-D, self-adaptive
    Power Supply: 24 VAC & Hi-PoE
    Power Consumption: 24 VAC (Max. 60 W)
    Hi-PoE (Max. 50 W)
    Working Temperature/Humidity: -40°C ~ 65°C (-40°F ~ 149°F)
    Protection Level: IP67 Standard, IK10 (only supported by camera without wiper), TVS 6,000V Lightning Protection, Surge Protection and Voltage Transient Protection
    Dimensions: Φ 266.6 mm × 410 mm (Φ 10.50" × 16.14")
    Weight (approx.): 8kg (approx. 17.64lb)
