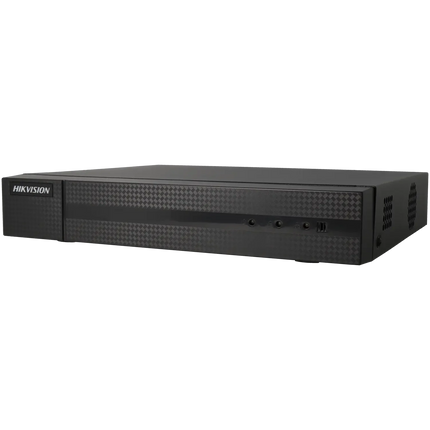

HWN-4104MH-4P, 4 Channel 4K NVR, PoE

Description

Please note: A hard drive is not included.

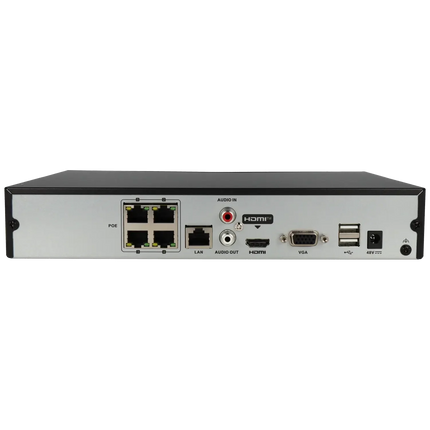

Hikvision Network Recorder (NVR) with 4 channels for connecting IP cameras with image quality up to 4K (8 megapixels). The NVR recorder has a built-in PoE switch, allowing you to power the cameras directly via the network cable. The recorder has one HDMI input, allowing you to display images up to 4K on a monitor, and one VGA input, allowing you to stream images up to Full HD. The Hikvision NVR recorder supports a maximum resolution of 8 megapixels.

Specifications:

  • Video and Audio

    • IP Video Input
      4-channels
    • HDMI Output
      HDMI: 1-channel, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output
      VGA: 1-channel, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output
    • VGA Output
      1920 1080/60Hz, 1280 1024/60Hz, 1280*720/60Hz
    • Incoming Bandwidth
      40 Mbps
    • Outgoing Bandwidth
      80 Mbps
    • Audio Output
      1-channel, RCA (Linear, 1 KΩ)
    • Two-Way Audio
      1-channel, RCA (2.0 Vp-p, 1 k Ω)

  • Decode

    • Decoding Format
      H.265+, H.265, H.264+, H.264
    • Decoding capacity
      4 channels @ 1080p
    • Synchronous Display
      4-channels
    • Recording Resolution
      8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

  • Network

    • Network Protocol
      TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
    • Network interface
      1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
    • PoE Interface
      4-channels

  • Current

    • Power supply
      48 VDC, 1.35 A
    • Standard
      IEEE 802.3 af/at

  • RAID

    • RAID Type
      No

  • Utility Interface

    • SATA
      1 SATA interface
    • Capacity
      Up to 8TB capacity per drive

  • USB Interface
    2 × USB 2.0

  • General

    • Power consumption
      ≤ 65 W
    • Consumption
      ≤ 10 W
    • Working temperature
      -10 to +55º C (+14 to +131º F)
    • Working humidity
      10 to 90%
    • Housing
      1U
    • Dimensions (W × D × H)
      265 × 225 × 48 mm (10.2" × 8.9" × 1.9")
    • Weight
      ≤ 1 kg (2.2 lb)
