JA-100+, Fire alarm system (basic kit)

Description

JA-100+, Fire alarm system (basic kit)

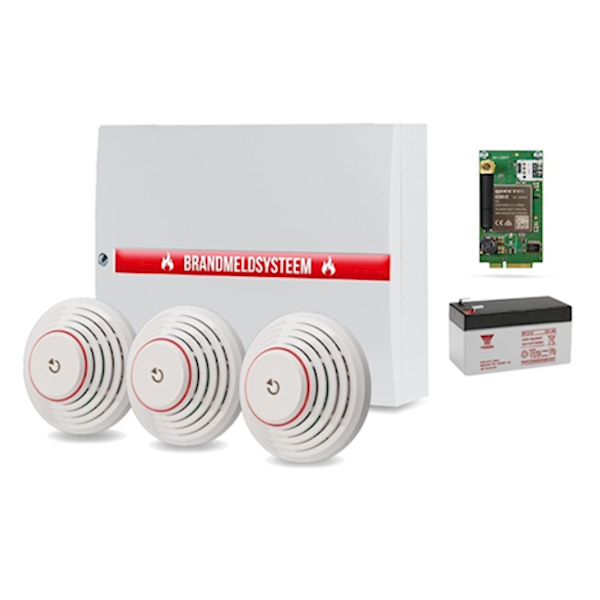

  • Kit includes: 1 x JA103KR, 1 x JA-194Y, 3 x JA-151ST-A and 1 x UL2.6-12
  • Central Alarm Unit
  • Connectable smoke detectors
  • Adjustable to heat and fire
  • Direct notification via the Jablotron App and control room
  • A loud internal siren
  • Equipped with a backup battery
  • Equipped with a 4G GSM communicator
  • Completely wireless
  • Expansion up to 50 smoke detectors
  • 5 Year Full Warranty
  • Excluding SIM card and/or CO2 detector (wired or wireless)

  • Specifications:
  • General specifications central unit:

    - Central including 4G GSM dialer
    - Operating frequency: 868.1 MHz
    - Power source 110 – 230 V / 50 – 60 Hz
    - Backup battery 12V, 2.6 Ah
    - Maximum battery charging time is 72 hours
    - Max. continuous consumption from the control panel is approximately 1000 mA
    - Continuous consumption backup of 12 hours is 80 mA without LAN and 53 mA with LAN
    - Maximum number of peripherals up to 50
    - LAN communicator concerns an Ethernet interface, 10/100BASE-T
    - Dimensions: 268 × 225 × 83 mm
    Weight with backup battery is 1809g and without backup battery is 919g.
    - Event history: 7 million latest events with date & time
    - Power source A (according to EN 50131-6)
    - Security level classification 2
    - Environmental class II (in accordance with EN 50131-1)
    - Operating temperature range: -10 to +40 °C
    - Average operating humidity: 75% RH, without condensation
    - In accordance with, among others, EN 50131-1 ed. 2+A1+A2, EN 50131-3, EN 50131-5-3A1, EN 50131-6 ed. 2+A, EN 50136-1, EN 50136-2, EN 50581
    - Electrical safety according to EN 62368-1+A11
    - Operating conditions according to VO-R/10, VO-R/1
    Certification body: Trezor Test sro (no. 3025)
    - Caller Identification (CLIP): ETSI EN 300 089

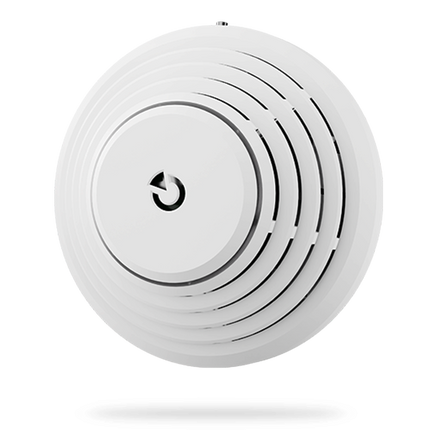

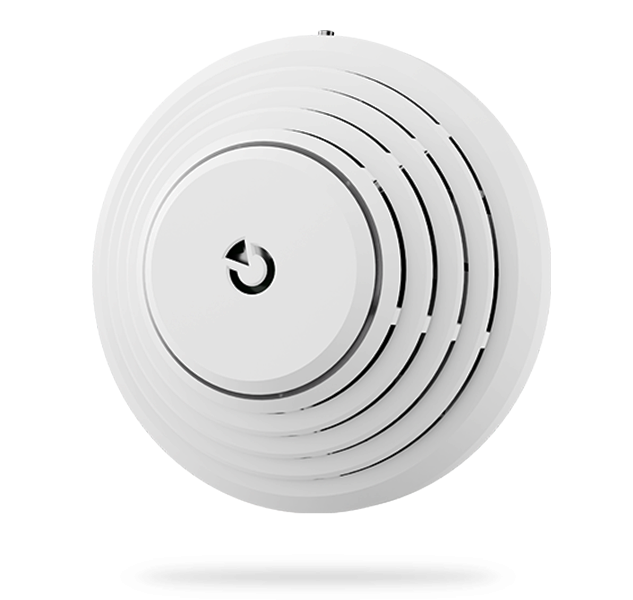

  • General specifications smoke detector:

    - Power source: 3× alkaline batteries AA 1.5V/2.4Ah/3× lithium batteries FR6 (AA) 1.5V / 3.0 Ah
    - Batteries are not included in the product package.
    - Typical battery life: approx. 3 years
    - Smoke detection: optical light scattering
    - Sensitivity of the smoke detector: m= 0.11 ÷ 0.13 dB/m according to EN 14604, EN 54-7
    - Temperature detection: class A1 according to EN 54-5
    - Alarm temperature: 60 °C to 65 °C
    - Operating frequency: 868.1 MHz
    - Communication range: about 300m (in open space)
    - Dimensions: diameter 126 mm, height 50 mm
    - Operating temperature: –10 °C to 70 °C
