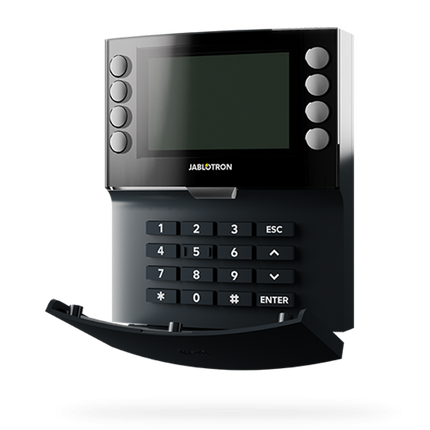

JA-115E-AN, Wired control panel with keypad, LCD and RFID reader

Description

JA-115E-AN, Wired control panel with keypad, LCD and RFID reader

The keypad is part of the JABLOTRON system. It
serves to control and indicate the current system status.
It is equipped with four segments, the descriptions of which are
displayed on the LCD screen. The device must be
installed by a trained technician with a valid certificate
that has been issued by an authorized distributor. The keyboard
is compatible with the following control panels JA-102K, JA-103K and
JA-107K.

Specifications:

Type of control device B
Power supply to control panel bus 12 V DC (8-15 V)
Power consumption in standby mode 18 mA
Power consumption for cable selection 150 mA
RFID frequency 125 kHz
Maximum RFID magnetic field strength -5.4 dBμA/m (measured at 10 m)
Dimensions 110 x 136 x 33 mm
Weight 285 g
Classification Security class 2/Environmental class II according to EN 50131-1
General environment General
Operating temperature range -10 °C to +40 °C
Average operating humidity 75% RH, non-condensing
Certification body Trezor Test sro (nr. 3025)
In accordance with ETSI EN 300 330, EN 50130-4, EN 55032, EN IEC 62368-1, EN IEC 63000, EN 50131-1, EN 50131-3
Can be performed according to ERC REC 70-03
Recommended screw 4 x ø 3.5 x 40 mm (semi-circular head)

JA-115E-AN, Wired control panel with keypad, LCD and RFID reader

Product form
Free pickup in our shop(s)

€216,65 Incl. VAT

      • Free shipping from 99,-
      • Free returns within 30 days

      Description

      JA-115E-AN, Wired control panel with keypad, LCD and RFID reader

      The keypad is part of the JABLOTRON system. It
      serves to control and indicate the current system status.
      It is equipped with four segments, the descriptions of which are
      displayed on the LCD screen. The device must be
      installed by a trained technician with a valid certificate
      that has been issued by an authorized distributor. The keyboard
      is compatible with the following control panels JA-102K, JA-103K and
      JA-107K.

      Specifications:

      Type of control device B
      Power supply to control panel bus 12 V DC (8-15 V)
      Power consumption in standby mode 18 mA
      Power consumption for cable selection 150 mA
      RFID frequency 125 kHz
      Maximum RFID magnetic field strength -5.4 dBμA/m (measured at 10 m)
      Dimensions 110 x 136 x 33 mm
      Weight 285 g
      Classification Security class 2/Environmental class II according to EN 50131-1
      General environment General
      Operating temperature range -10 °C to +40 °C
      Average operating humidity 75% RH, non-condensing
      Certification body Trezor Test sro (nr. 3025)
      In accordance with ETSI EN 300 330, EN 50130-4, EN 55032, EN IEC 62368-1, EN IEC 63000, EN 50131-1, EN 50131-3
      Can be performed according to ERC REC 70-03
      Recommended screw 4 x ø 3.5 x 40 mm (semi-circular head)
