Description

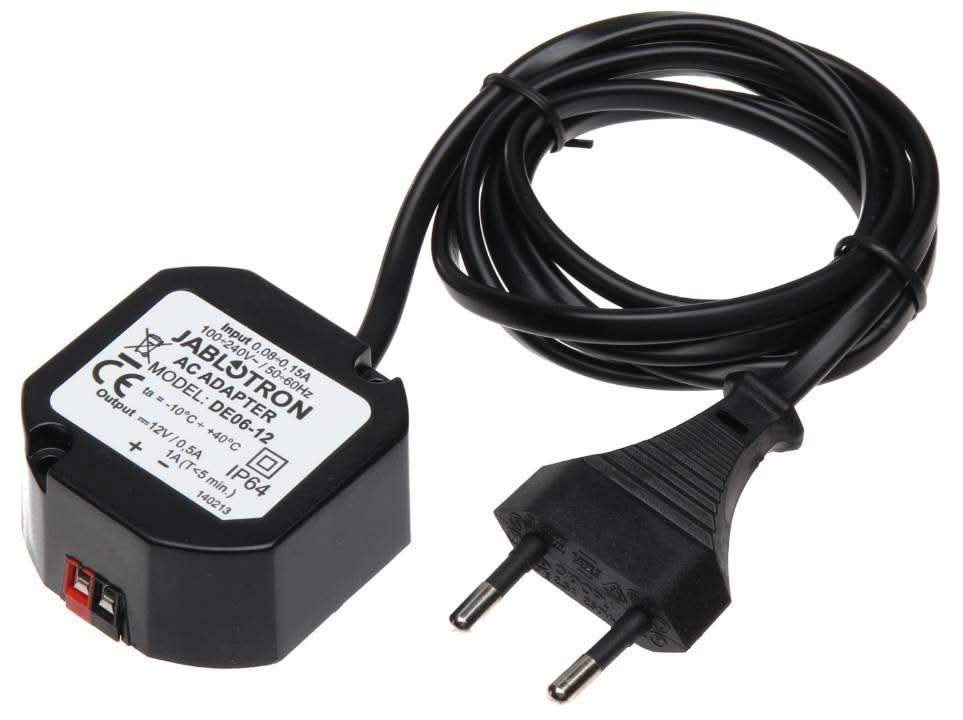

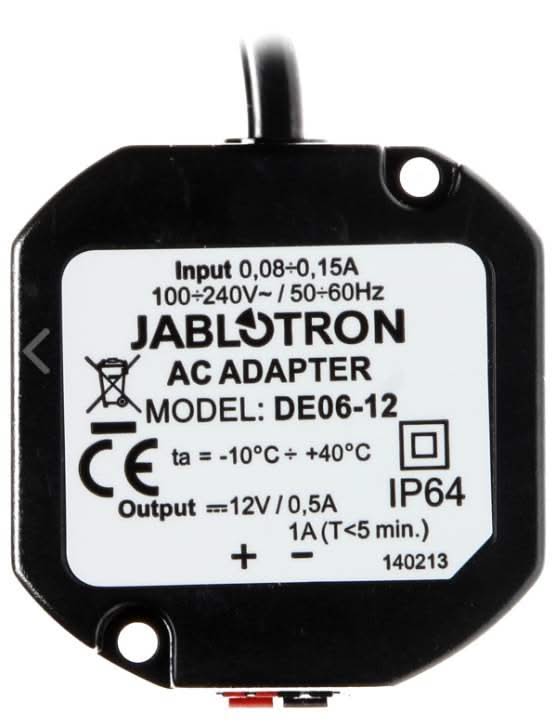

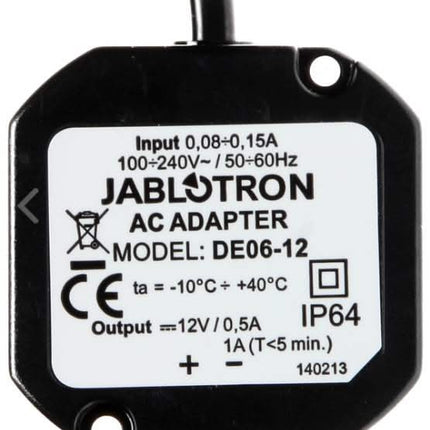

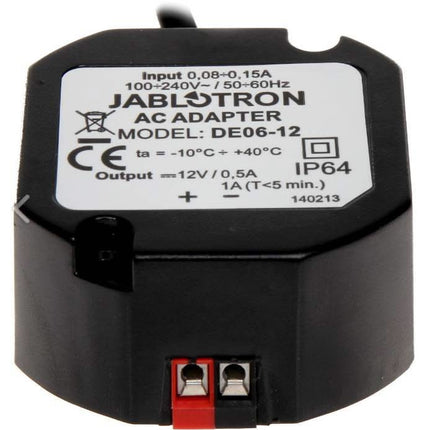

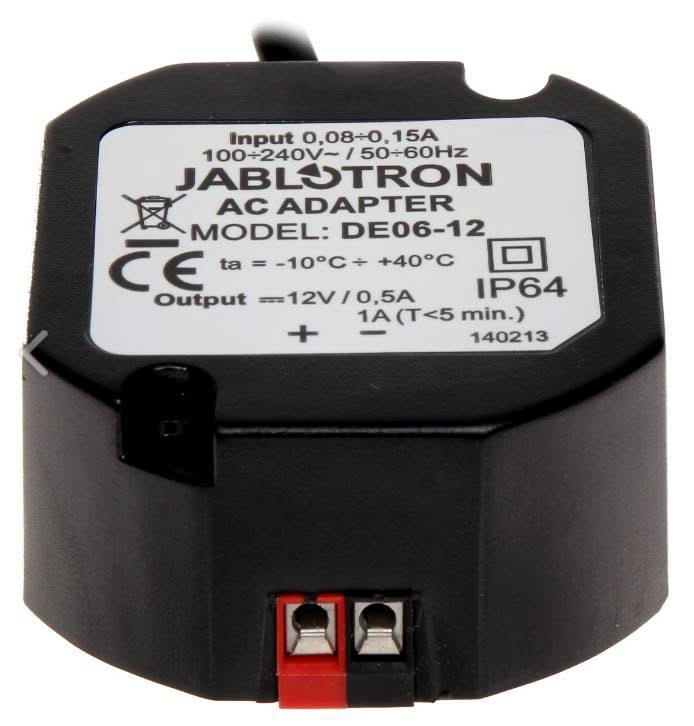

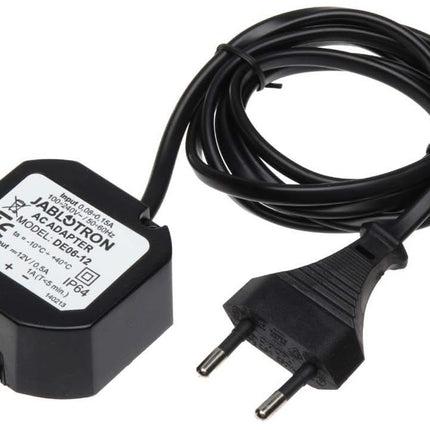

Jablotron DE06-12 Power supply12V / 0.5A
The Jablotron DE06-12 Power Supply 12V / 0.5A is intended for powering wireless control panels and also for powering other 12V DC devices such as intercom outdoor stations, electric strike plates, IP and analog 12 volt cameras.
The compact dimensions of the enclosure allow the module to be placed in a standard electrical installation box for concealed installation beneath wall-mounted Jablotron products, such as those mentioned above. The M3 screw holes are also useful for installation in typical fuse/switch boxes where mounting is required.
• supply voltage 100 ~ 240VAC, protection class II
• output voltage 12V DC (± 2%)
• output current 500 mA
• peak output current T <5 min. 1000 mA
• output power 12W max.
• short circuit and overload protection
• IP64 housing
• dimensions 50x48x25 mm
• input cables length 110 mm (230 V), diameter 1.3 mm (16 AWG)
• operating conditions according to EN 50131-1 II. environmental class
• working temperature -10 ° C to +40 ° C
• complies with EN 50130-4, EN 55022, EN 60950-1
