JA-111H BUS module interface for wired detectors

Description

Jablotron JA-111H BUS module interface for wired detectors

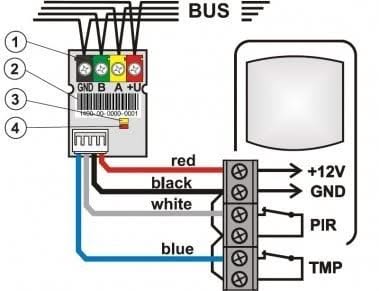

The Jablotron JA-111H BUS module is designed to connect a wired detector to the alarm system.

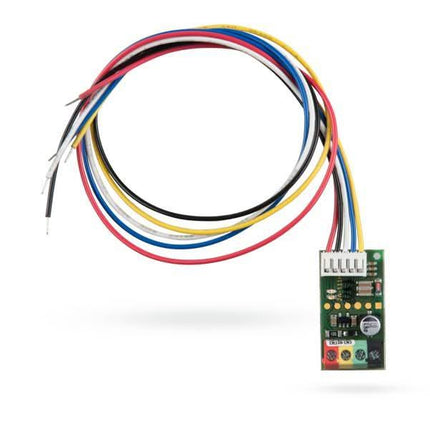

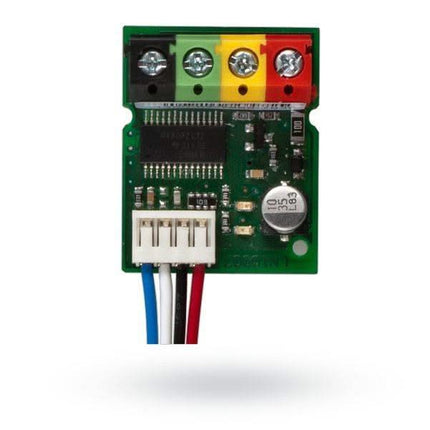

The module communicates and is powered by the control panel's BUS. It is available as a PCB and can be installed in the wired detector. It offers an NC or NO input. It allows the user to set a minimum trigger time (0.5s, 1s, 2s, or 5s).

• Power supply: via the BUS of the central unit, 12V (9 - 15 V)
• Standby power consumption: 2 mA
• Maximum standby current consumption of the connected detector: 50 mA
• Dimensions: 22 x 27 x 14 mm
• Safety class 2 in accordance with EN 50131-1, EN 50131-3
• Environment in accordance with EN 50131-1, EN 50131-3: II, indoors
• Operating temperature: -10 to 40 °C

JA-111H BUS module interface for wired detectors

Product form
Free pickup in our shop(s)

€39,00 Incl. VAT

      • Free shipping from 99,-
      • Free returns within 30 days

      Description

      Jablotron JA-111H BUS module interface for wired detectors


      The Jablotron JA-111H BUS module is designed to connect a wired detector to the alarm system.

      The module communicates and is powered by the control panel's BUS. It is available as a PCB and can be installed in the wired detector. It offers an NC or NO input. It allows the user to set a minimum trigger time (0.5s, 1s, 2s, or 5s).

      • Power supply: via the BUS of the central unit, 12V (9 - 15 V)
      • Standby power consumption: 2 mA
      • Maximum standby current consumption of the connected detector: 50 mA
      • Dimensions: 22 x 27 x 14 mm
      • Safety class 2 in accordance with EN 50131-1, EN 50131-3
      • Environment in accordance with EN 50131-1, EN 50131-3: II, indoors
      • Operating temperature: -10 to 40 °C
