Description
ASE (Alarm System Expert) Network Video Recorders is our own brand of IP cameras and Network Video Recorders from the Hikvision factory. This is a selection of the very best Network Video Recorders in 4K Ultra HD resolution, combined for sharp color nighttime images. The cameras and recorders are assembled by us using the best technology and are fully supported by firmware and updates. They are very attractively priced and can be easily combined with an ASE Ultra HD camera or a Hikvision branded camera via plug and play.

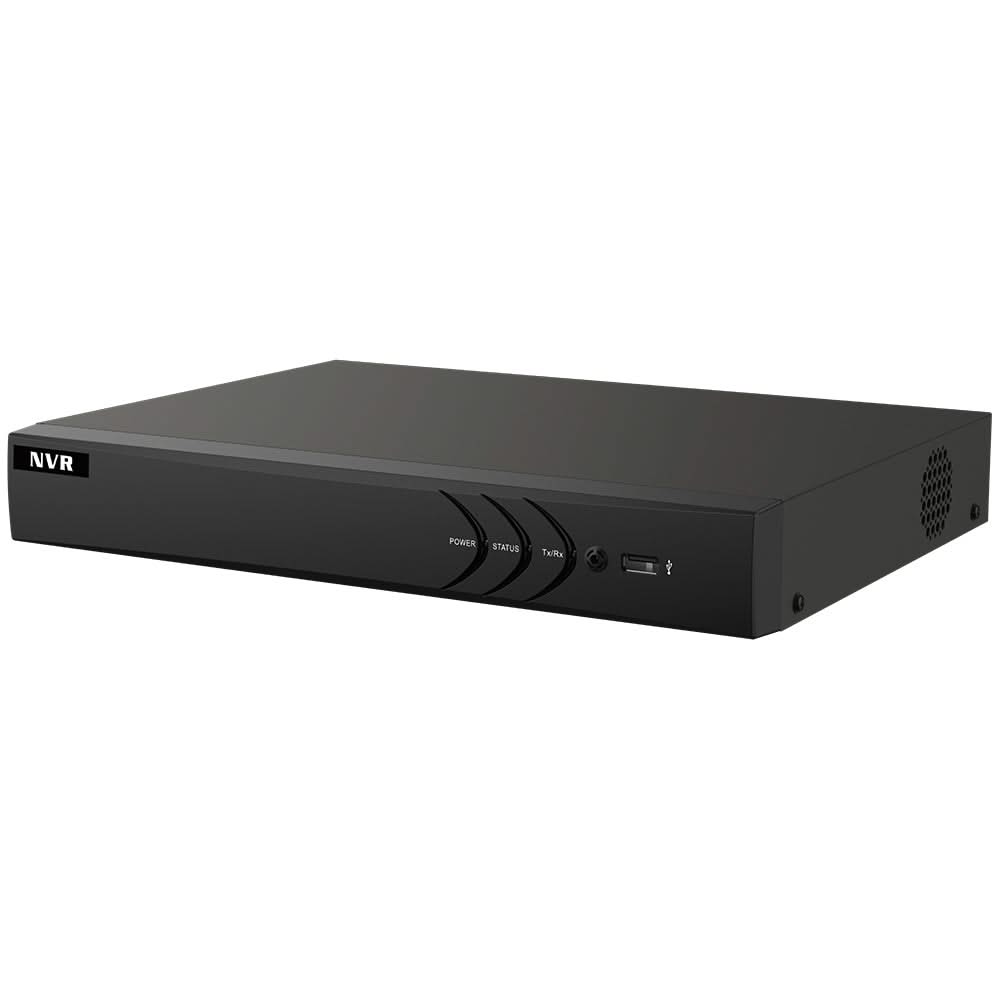

Record and manage video footage from up to eight cameras with the Alarm System Expert NVR608 8-channel 4K UHD NVR. With two SATA ports, this NVR can be configured for internal storage up to 12TB. H.265, H.265+, H.264, and H.264+ compression ensures manageable file sizes without sacrificing quality. Two-way audio communication is supported. The NVR608 offers HDMI and VGA video outputs, and the app allows for easy camera viewing.
Specifications:
- Motion detection 2.0
- Human/Vehicle Analysis 4
Video and audio
- IP video input 8-channel

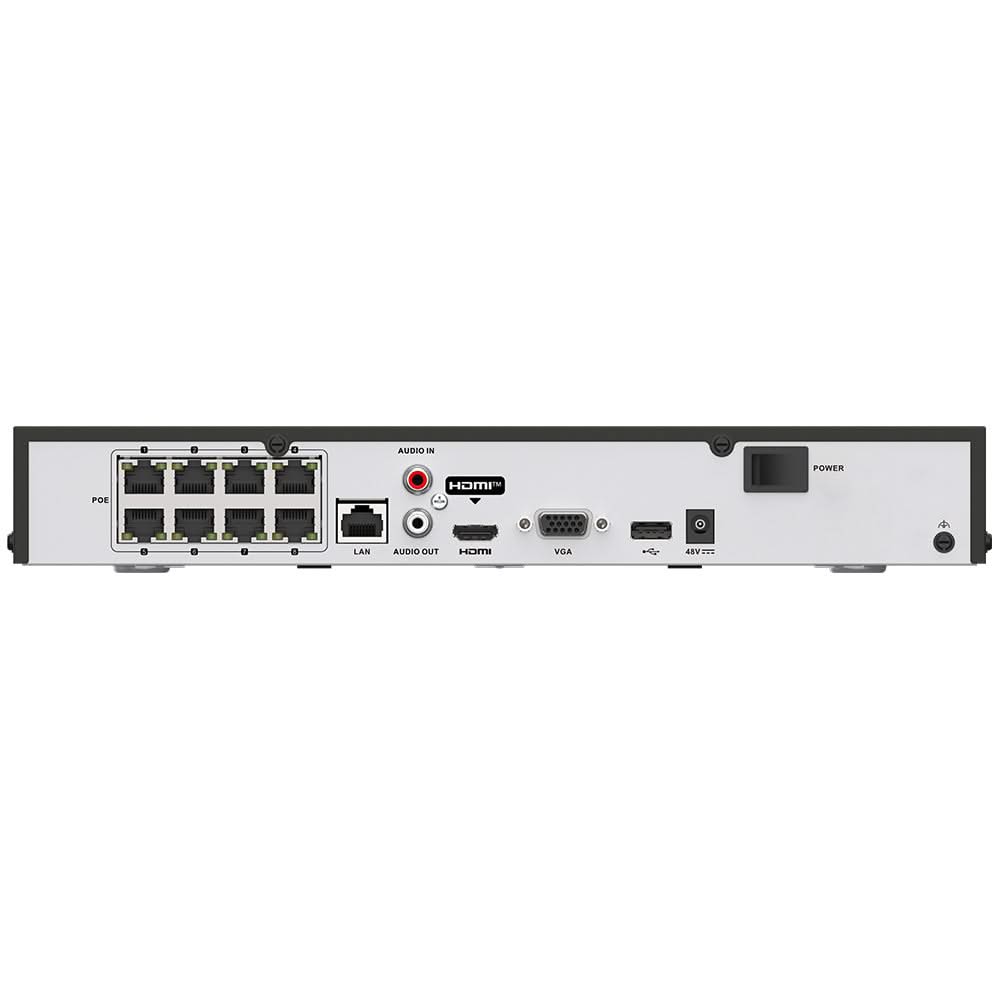

- HDMI output 1 channel, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280x720/60Hz
- VGA Output 1-channel, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode HDMI/VGA simultaneous output
- Incoming bandwidth 80 Mbps
- Outgoing bandwidth 80 Mbps
- Audio output 1-channel, RCA (linear, 1 KΩ)
- Two-way audio 1-channel, RCA (2.0 Vp-p, 1 kΩ)
Decode
- Decoding format H.265+,H.265,H.264+,H.264
- Decoding capacity 1-channel @ 8 MP (30 fps) / 5-channel @ 1080p (30 fps)
- Synchronous display 8-channel
- Recording resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Network
- Network protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Network interface 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
- Interface 8-channel
- Power ≤ 80W
- Standard IEEE 802.3 af/at
Help interface
- SATA -2
- Capacity Up to 8TB capacity for each drive
- USB interface 2 × USB 2.0
General
- Power supply 48V|2.5A MAX
- Consumption ≤ 15W
- Operating temperature -10 to +55º C (+14 to +131º F)
- Operating humidity 10 to 90%
- Enclosure 1U enclosure
- Dimensions (W × D × H) 385 × 315 × 52 mm (15.2" × 12.4" × 2.0")
- Weight ≤ 2.6 kg (5.7 lb)
