Description
S64H 4xPoE+ 2x uplink 100Mbit switch in IP56 outdoor cabinet
Info:

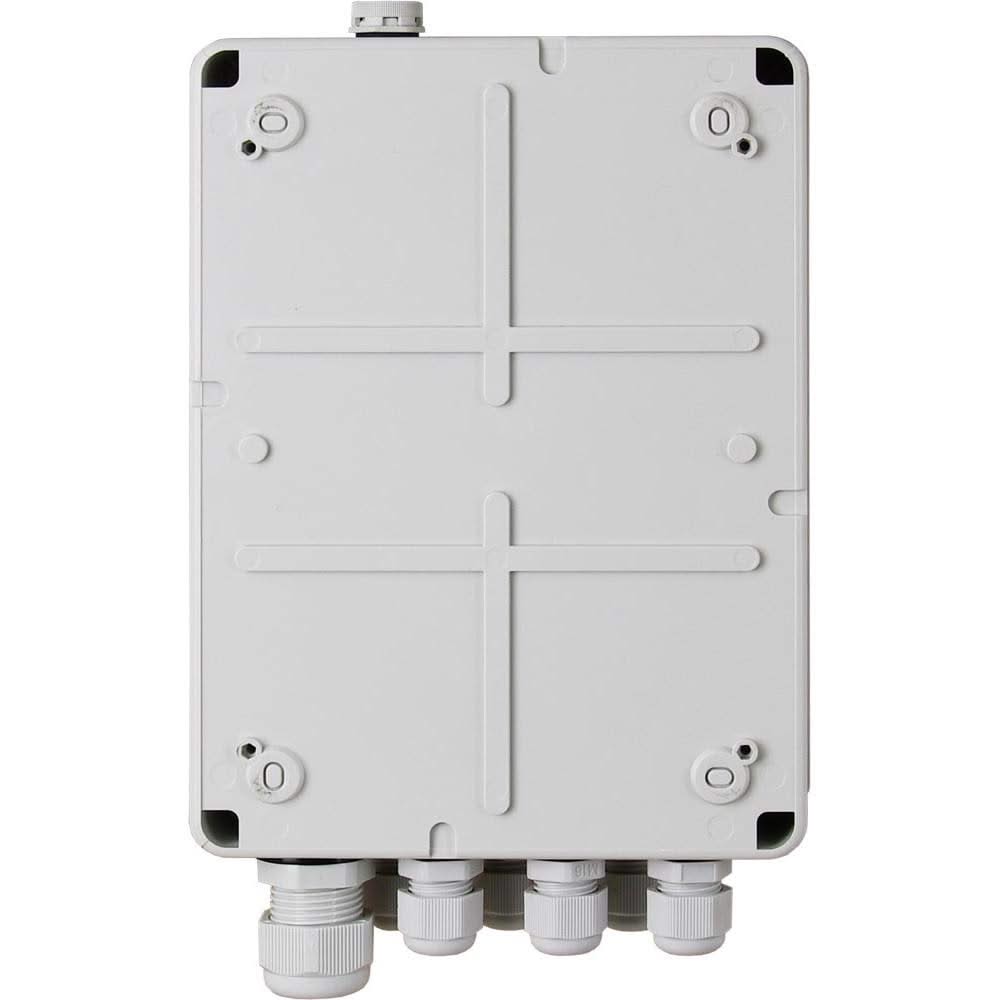

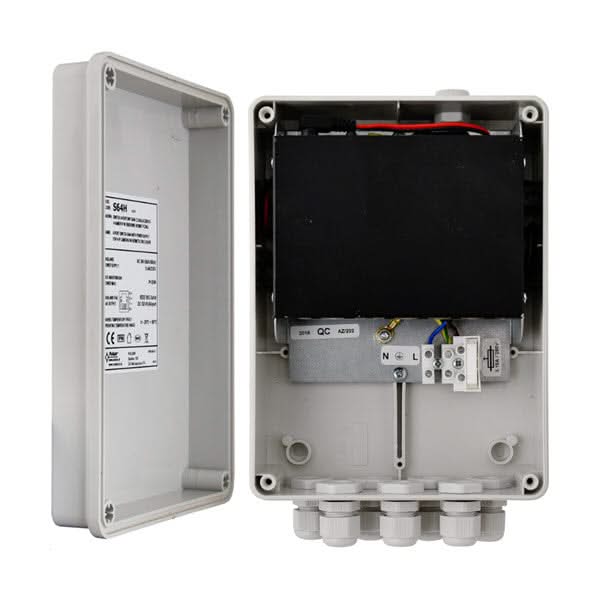

Outdoor cabinet with built-in switch with 4xPoE+ and 2x Uplink.
S64H:
S64H, 6x 10/100 ports of which 4 PoE+ ports with a PoE budget of 30W per PoE port.
This switch features 4 PoE (Power over Ethernet) ports, is suitable for any network, and simplifies the installation of IP cameras. The switch comes in a water-resistant housing that also protects it from dust.
General properties:
- 4x PoE+ port and 2x uplink
- IP56 housing incl. 7 glands
- Suitable for dusty and humid environments. Also suitable for outdoor use.
- Suitable for pole mounting in combination with OZB2
Specifications:
Management functions:
Data transmission:
- Capacity: 1.6Gbit/s
- Speed: 100 Mbit/s
Network:
- Standard: IEEE802.3, 802.3u, 802.3x CSMA/CD, TCP/IP
- Auto MDI/MDI-X
Interface:
- 2 network ports 10/100Mb/s (UpLink)
- 4 PoE ports 10/100Mb/s
- PoE budget: 30W per PoE port
Housing specifications:
- Dimensions: 196 x 146 x 78mm
- Weight: 1.2 kg (incl. switch)
- Working temperature: -10°C~40°C
- Wrenches: 7
- IP56
