Description

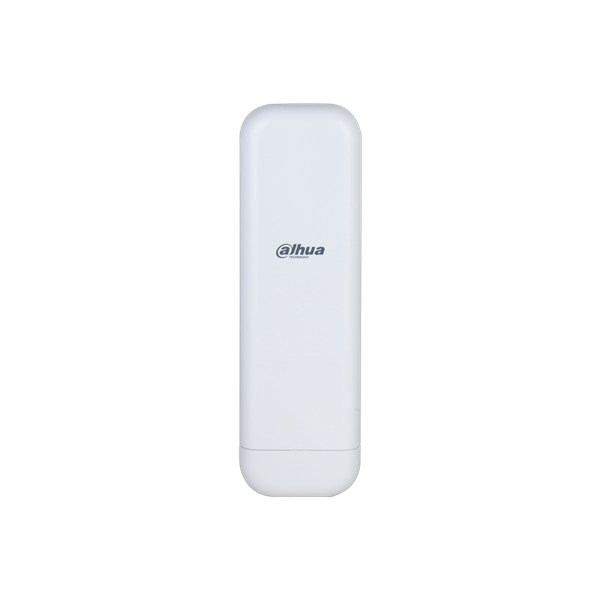

Dahua's wireless bridges offer reliable and powerful wireless connectivity for camera applications, among other things. These bridges have dedicated antennas with PoE input and output, suitable for point-to-point, point-to-multipoint, and back-to-back applications. Each antenna has a convenient Wi-Fi management function for local network management, configuration, and monitoring via the WebUI, with easy-to-follow installation indicators on the side. Dahua's wireless bridges offer flexible and high-performance solutions for wireless video applications.
The Dahua WBC5 series is an ideal solution for establishing wireless connections with camera products. Specifications are for reference only; final performance will depend on the environment. This solution is ideal for wireless connections to, for example, camera masts or outbuildings without dedicated network facilities. The feasibility of the connection is indicated in kilometers.
Clear line of sight is required for good stable operation:
For proper operation, the antennas must have a clear line of sight to each other. Buildings, trees, and other obstacles should be avoided. The antennas have a signal indicator that provides a direct view of the connection quality.

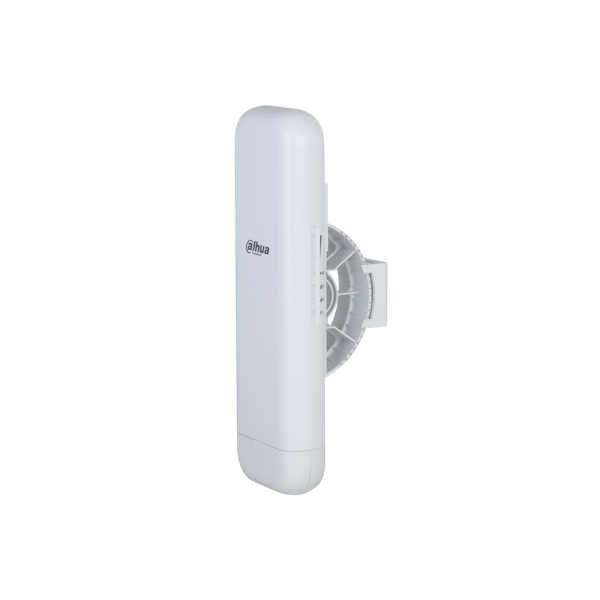

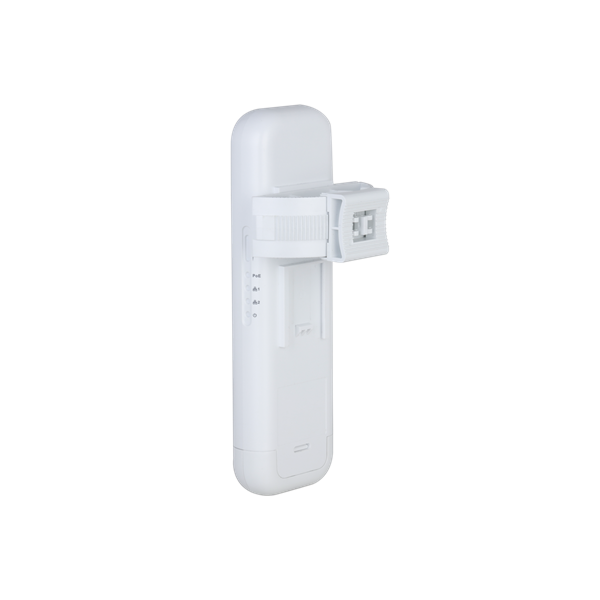

The antennas are supplied with mounting hardware and hose clamps. The included hose clamp is suitable for poles with a diameter between 59 and 82 mm.
A longer clamp is available as an accessory.
Specifications:
|
Hardware
|
Interface |
1 × PoE RJ–45 (1000 Mbps);
1 × LAN RJ–45 (100 Mbps) |
|
Power module connector |
1 × PoE RJ–45 (IN: 30 W) |
|
Wireless standard |
2.4GHz: 802.11b/g/n;
5GHz: 802.11a/n/ac |
|
Power supply |
PoE IN: 802.3at;
PoE OUT: 802.3af |
|
Power adapter included |
Yes |
|
Included antenna |
Yes |
|
Ethernet ports |
2 |
|
Ethernet port speed |
10/100/1000 Mbps |
|
Reset button |
1 |
|
Energy consumption |
< 30 W |
|
External port |
2 × RJ-45; 1 × Reset |
| |
Indicator lights |
1 × power indicator;
2 × LAN port indicators;
1 × PoE indicator;
3 x wireless signal strength indicators |
| Features
|
Encryption mode |
WPA-PSK/AES/TKIP |
|
Manage and log |
Syslog; NTP |
|
Web Page Configuration |
Management via web configuration |
|
Firmware update |
Web update |
|
Wireless Certification |
CE/FCC |
|
Security mechanism |
WPA/WPA2; hidden SSID |
|
Network protocol |
UDP; TCP; HTTPS; IPv4; NTP; DHCP |
|
TDMA improvement |
Yes |
|
TDMA |
Yes |
| General
|
Reach |
Up to 5KM at an angle of 30° |
|
Operating temperature |
–30 °C to +65 °C (–22 °F to +149 °F) |
|
Storage temperature |
–40 °C to +80 °C (–40 °F to +176 °F) |
|
Operating humidity |
5%–95% (RH), non-condensing |
|
Gross weight |
0.46 kg (1.01 lb) |
|
Net weight |
0.37 kg (0.82 lb) |
|
Packaging dimensions |
297 mm × 110 mm × 108 mm (11.7" × 4.33" × 4.25") |
|
Product dimensions |
268 mm × 82 mm × 35 mm (10.55" × 3.23" × 1.38") |
|
Memory |
1 GB |
|
Assembly |
Mounting bracket for pole included |
|
Static Protection |
Air discharge: 15 kV;
Contact discharge: 8 kV |
|
Lightning protection |
Common mode: 6 kV;
Differential mode: 4 kV |
|
Installation |
Pole mounting |
