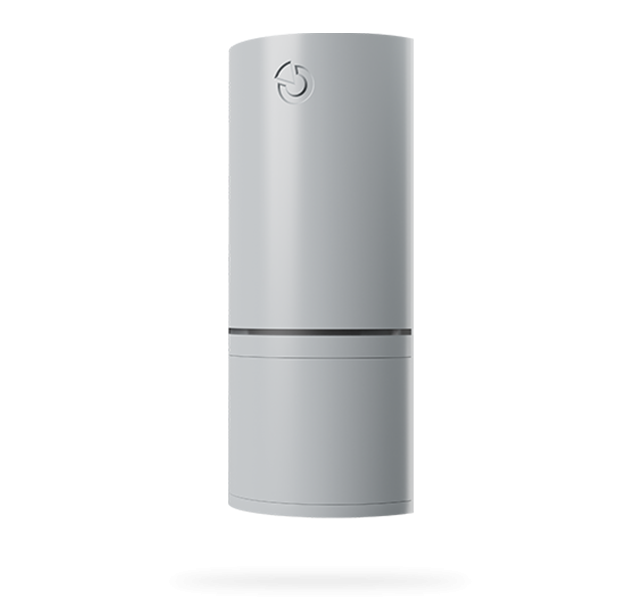

Jablotron JA-162PW-GR, Wireless Designline Dual MW PIR
JA-162PW-GR, Wireless Designline Dual MW PIR This product is a wireless device from the JABLOTRON 100+ system. This detector is designed to detect human body movements inside buildings. High immunity to false alarms is achieved thanks to the combination of PIR and microwave (MW) detection. The detector works like a traditional PIR detector, but if the PIR detects movement in a monitored area, the MW section is activated, confirming the previous PIR activation. Specifications: Power source 2 lithium batteries, type CR123A (3 V/1500 mAh); batteries are not included Typical battery life 4 years Low battery charge level < 2.7 V Quiescent current consumption 65 μA Maximum power consumption 50 mA Communication band 868.1 MHz, JABLOTRON protocol Maximum MW radio frequency power (Effective Radiated Power – ERP) 25 mW Communication range approx. 300 m (open space) Recommended installation height 2.2 – 2.5 m above floor level Detection angle/PIR coverage 90°/12 m Detection angle/MW coverage 80°/12 m MW frequency 24.125 GHz Maximum Effective Radiated Power (ERP) 30 mW Sizes 150 x 63 x 40 mm Weight (without batteries) 125 g Classification Safety grade 2/Environmental class II (according to EN 50131-1) Operating temperature range -10 °C to +40 °C Average operating humidity 75% relative humidity, no condensation Certification body Trezor Test sro (nr. 3025) In accordance with ETSI EN 300 440, EN 50130-4, EN 55032, EN 62368-1, EN 50581, EN 50131-1, EN 50131-2-4 Operating conditions according to general authorization ERC REC 70-03
€199,35
