ALLNET Powerline Adapter Set with PoE, 1200 Mbit, RJ45, SmartLink

Description

The ALLNET Powerline PoE Adapter Set consists of two powerful Powerline adapters that allow you to easily create a fast and stable network using your existing electrical wiring. Thanks to advanced HomePlug AV2 technology and SmartLink MIMO functionality, not only the live and neutral wires but also the ground wire are used for data transmission. This allows you to benefit from higher speeds, greater range, and a more reliable connection than with traditional Powerline solutions.

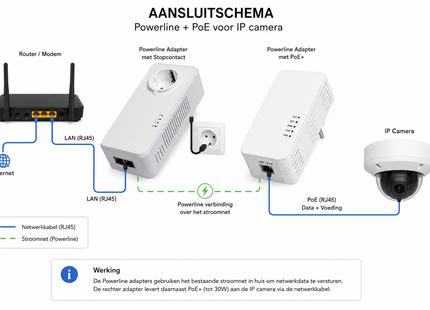

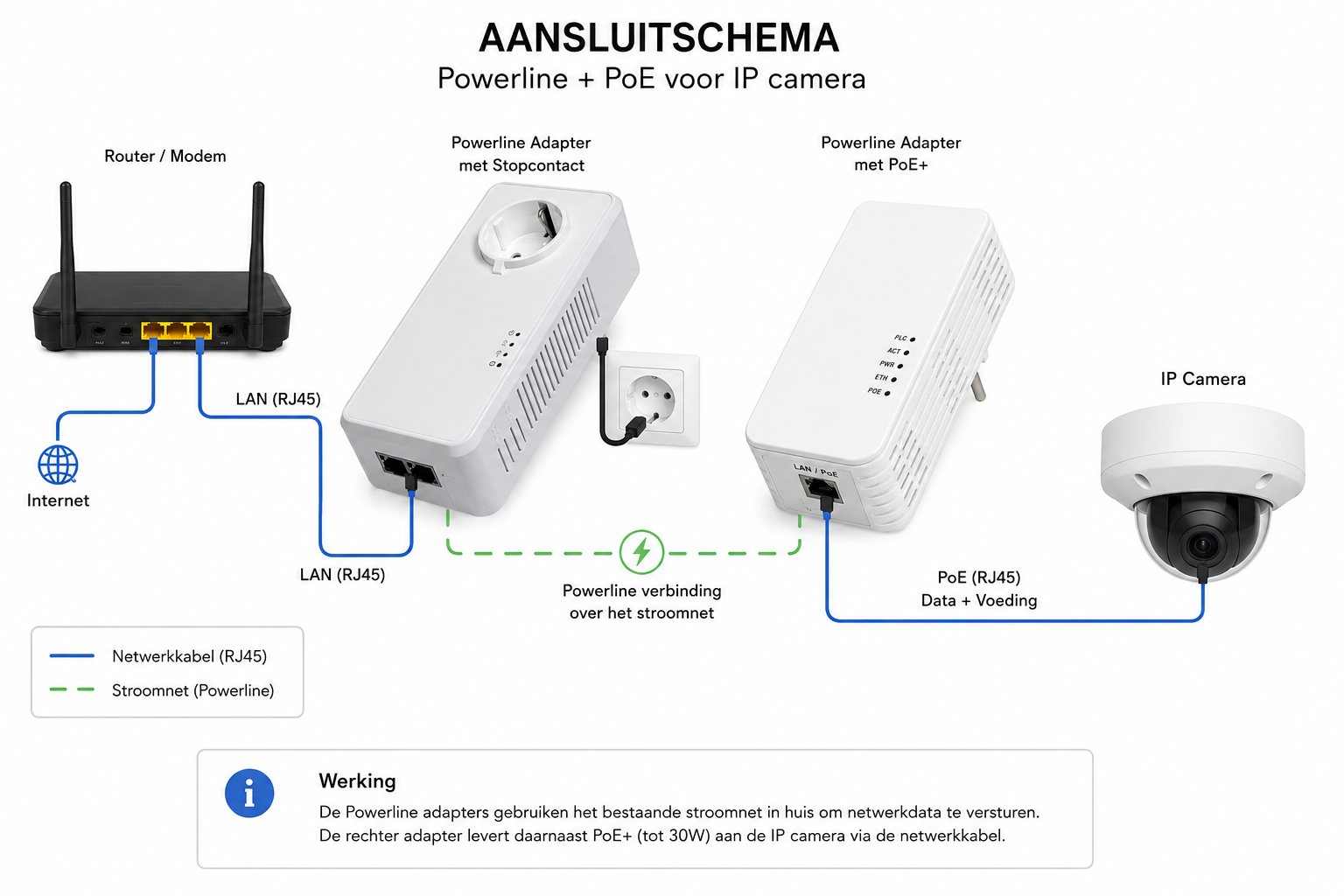

To establish a connection via the power grid, you always need two adapters. Place the HomePlug near your internet router and the Slave PoE adapter near the camera. All ALLNET adapters from the “SmartLink” series are compatible with each other. You can connect up to 15 slave adapters to a single home adapter.

With a maximum transfer speed of up to 1200 Mbps and two Gigabit Ethernet ports per adapter, this set is ideal for connecting computers, smart TVs, NAS systems, game consoles, and IPTV receivers. Thanks to the integrated passthrough outlet, the power outlet remains fully usable for other devices. Plug & Play setup and 128-bit AES encryption ensure quick deployment and a secure network connection.

Key Features

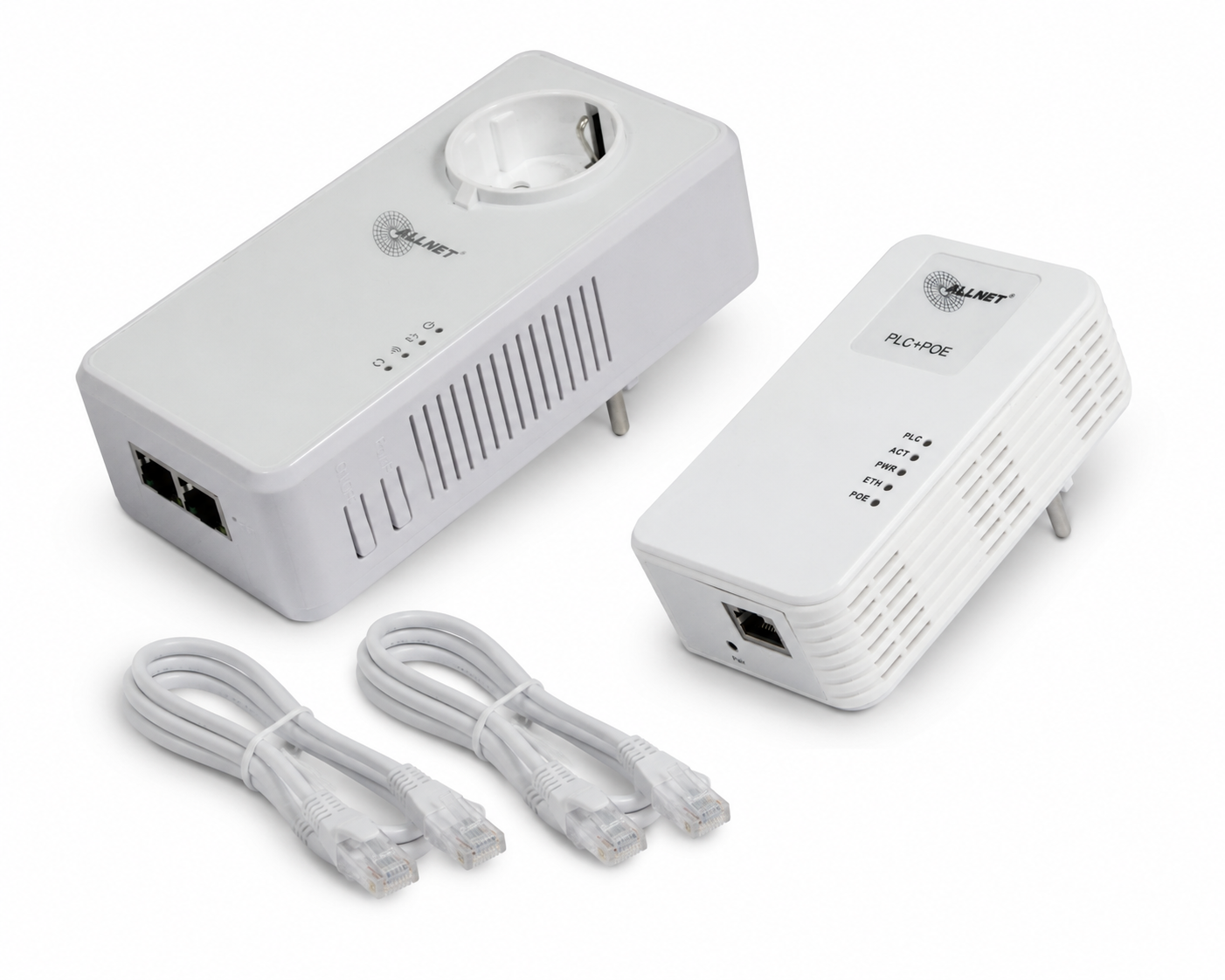

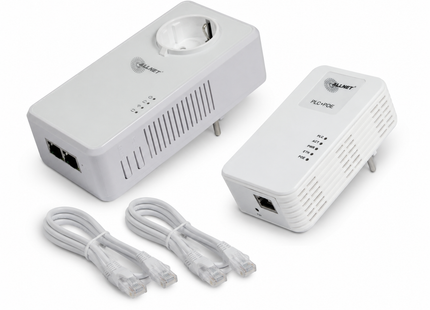

  • Set of 2 Powerline adapters
  • HomePlug AV2 SmartLink technology
  • Data speeds up to 1200 Mbps
  • MIMO support for higher performance and greater range
  • 2× Gigabit RJ45 network ports on the HomePlug; 1× Gigabit RJ45 on the slave
  • Integrated passthrough outlet
  • Compatible with HomePlug AV, HomePlug AV2, and IEEE1901
  • 128-bit AES network security
  • Plug-and-play installation without software
  • Suitable for HD video, IPTV, online gaming, and VoIP
  • Automatic selection of the best communication path via the power grid
  • Notch Filter (26.96 – 27.41 MHz) to protect amateur radio frequencies

Specifications

  • Product number: Allnetpowerline set Poe
  • Type: Powerline 1200 Mbit 2-pack (2 adapters)
  • Technology: HomePlug AV2 SmartLink
  • Maximum Powerline Speed: up to 1200 Mbps (PHY)
  • Ethernet ports: 2× Gigabit RJ45 (10/100/1000 Mbps) per adapter
  • SmartLink technology: uses phase, neutral, and ground for improved performance
  • MIMO support: Yes
  • Chipset: Qualcomm Atheros QCA7500 + QCA8334
  • Frequency range: 2 – 68 MHz
  • Modulation technology: OFDM
  • Security: 128-bit AES hardware encryption
  • Quality of Service (QoS): Yes
  • Compatibility: IEEE1901, HomePlug AV, HomePlug AV2, and GreenPHY
  • Pass-through outlet: Yes, integrated outlet remains available
  • Plug & Play installation: Yes, no software configuration required
  • Notch Filter: 26.96 – 27.41 MHz (protection of amateur radio frequencies)
  • LED indicators: Power (PWR), PLC, Ethernet (ETH)
  • Power supply voltage: AC 100–240 V, 50/60 Hz
  • Operating temperature: 0°C to +70°C
  • Humidity: 10% – 90% non-condensing
  • Dimensions: 145 × 70 × 43 mm (L × W × H)
  • Weight: 300 grams per adapter (0.6 kg per set)
  • Plug type: EU Type F (Schuko)
  • Certifications: CE, RoHS
  • Supported operating systems: Windows, macOS, and Linux


ALLNET Powerline Adapter Set with PoE, 1200 Mbit, RJ45, SmartLink

Product form
En stock — envío rápido desde nuestro almacén
🚚
Entrega estimada: calculando...
Plazo de entrega previsto: 1 a 3 días laborables.
📍
Recogida en Rojales
Disponible en 1 día laborable con cita previa.
Haz tu pedido hoy y lo prepararemos lo antes posible.

€279,00  €239,00 Incl. VAT
