Jablotron sirens and strobes

General Type: JA‑113A‑BASE-RB (bus external siren basic module)  Function: Basic unit for communication with the control panel and a number of internal functionalities such as tamper detection, can be combined with optional covers for acoustic and optical alarm display  Technical specifications Connection: 12 V DC via BUS system (range 8–15 V) with average current consumption approx. 2.5 mA (stand-by) up to max. 450 mA Backup battery (optional, not included as standard): NiMH 4.8 V / 1,800 mAh (BAT‑4V8‑LH1800) with typical service life approx. 5 years. Low voltage detection Siren output: piezo element with ~100 dB at 1 m (hanging new battery)  Dimensions & weight Dimensions: 200 × 300 × 72 mm (with JA-1X1A-C cover) or 200 × 300 × 62 mm (with JA-1X2A-C cover)  Weight: ± 413 g without battery  Environmental and certification Use: for outdoor installation, ambient temperature from −25 °C to +60 °C and humidity up to ~75 % RH without condensation Security class: Grade 2 / environmental class IV according to EN 50131‑1, EN 50131‑4 certification. Installation Assembly: use two screws through mounting holes, built-in spirit level for accurate alignment  Bus connection: always install with the power off, guide the cable through the appropriate opening and secure it with clips  Tamper surveillance: sensor detects opening of the front cover — automatic calibration after installation, closure must be complete to avoid error messages  Compatibility System compatibility: works with JABLOTRON 100 and 100+ control panels such as JA-102K, JA-103K and JA-107K  Required cover: becomes the basic unit supplied without cover; these must be purchased separately. Available COVERS: JA‑1X2A‑C‑WH (white plastic, transparent flash) JA‑1X2A‑C‑GR (gray plastic) JA‑1X2A‑C‑AN (anthracite plastic) JA‑1X1A‑C‑ST (red LED on stainless steel) JA‑1X1A‑C‑ST‑B (blue LED on stainless steel)

Read more less

Jablotron JA-1X1A-C-GR Plastic cover for outdoor sirenJA-1X1A-C-GR Cover for sirens JA-111A, JA-151A, red flash, gray cover made of weatherproof polycarbonate.

Read more less

Jablotron JA-163A RB base plate wireless siren for outdoor useThe Jablotron JA-163A RB base plate is a wireless outdoor siren with flash and designed for audible alarms, tones and PG output activation or deactivation. This base plate must be supplemented with a hood that is placed on the base plate. You can choose from a white, gray or stainless steel hood. Those are the following covers; JA-1X1A-C-WH, JA-1X1A-C-GR or JA-1X1A-C-ST Stainless steel cover. The base plate has a built-in spirit level so adjustments can easily be made during installation. The components of the JA-163A RB product (base, top housing) are supplied separately. The reason for this is a free selection from a number of top housings.Don't forget to order the BAT-100 battery.Unlike the 151A base plate, it is completely wireless and does not require a 12-volt cable to be connected to an adapter.Product Info

Read more less

Professional flash, low modelSuitable for indoor and outdoor use, robust flash, power supply 9-60Vdc.75 flashes per minute. See the photos for the connection diagram for Jablotron 100Specifications; CPD/Certificate/Incert number Pending Standard - Wired, Wireless or Hybrid wired Pet tolerant n/a Detection range n/a Detection principle  n/a Security Grade n/a Switch distance n/a Surface-mounted or built-in construction Clamps or molded cable (mtr) clamps Polarized magnetic contact n/a Way of operating n/a Housing material ABS, PC lens Color white Weight (kg) 0.15 Product size (mm) 93x65 IP value IP54 Temperature range -25°C - +70°C Supply voltage 9-60 Vdc Power consumption (W) 2.7 Switching power (W) - Transmit power (mW) - Transmission range (m) - Switch voltage and current - Batteries used - Number of Batteries / Batteries n/a / n.a. Battery / accumulator included? n/a Autonomy n/a

Read more less

Jablotron JA-1X1A-C-ST cover made of brushed stainless steelCover for sirens JA-111A, JA-151A, Red flash, brushed stainless steel.

Read more less

Professional flash, low model, orange flash light Suitable for indoor and outdoor use, robust flash, power supply 9-60Vdc.75 flashes per minute.Specifications; CPD/Certificate/Incert number Pending Standard - Wired, Wireless or Hybrid wired Pet tolerant n/a Detection range n/a Detection principle  n/a Security Grade n/a Switch distance n/a Surface-mounted or built-in construction Clamps or molded cable (mtr) clamps Polarized magnetic contact n/a Way of operating n/a Housing material ABS, PC lens Color Orange Weight (kg) 0.15 Product size (mm) 93x65 IP value IP54 Temperature range -25°C - +70°C Supply voltage 9-60 Vdc Power consumption (W) 2.7 Switching power (W) - Transmit power (mW) - Transmission range (m) - Switch voltage and current - Batteries used - Number of Batteries / Batteries n/a / n.a. Battery / accumulator included? n/a Autonomy n/a

Read more less

 JA-152A, Pro siren socketThe product is a wireless system device for the Jablotron Midway Pro and Essex Pro. The siren is designed to indicate alarms in a building. The siren can also be used for other acoustic indications such as activation of PG outputs, entry/exit delay or as a doorbell. By pressing the siren button an alarm can be suppressed or an emergency alarm can be activated. The device is equipped with a backup battery in case of a power failure. The siren is further equipped with a tamper sensor for detection of disconnection. The siren occupies one position in the system. There are up to 4 different tones for the doorbell. Product Info

Read more less

JA-110A IIbimportant features: The JA-110A bus siren is for indoor use and is designed to sound alarms, as well as entry and exit delays and PG activations in the security system The siren button is equipped with programmable responses The siren communicates with and is powered by the bus Addressable and occupies one position in the alarm system Product Info

Read more less

JA-150A II Wireless Internal SirenAn indoor wireless siren, the JA-150A II is designed for acoustic alarm signaling, entry and exit delays and PG output activation in the security system.Product Info

Read more less

Jablotron JA-1X1A-C-AN Plastic cover for outdoor siren AnthraciteJA-1X1A-C-AN Cover for sirens JA-111A, JA-151A, red flash, Anthracite cover made of weatherproof polycarbonate.

Read more less

Jablotron Bat-100 battery for JA-163A RB, Lithium battery 3.6V 13Ah 1xDProduct Info

Read more less

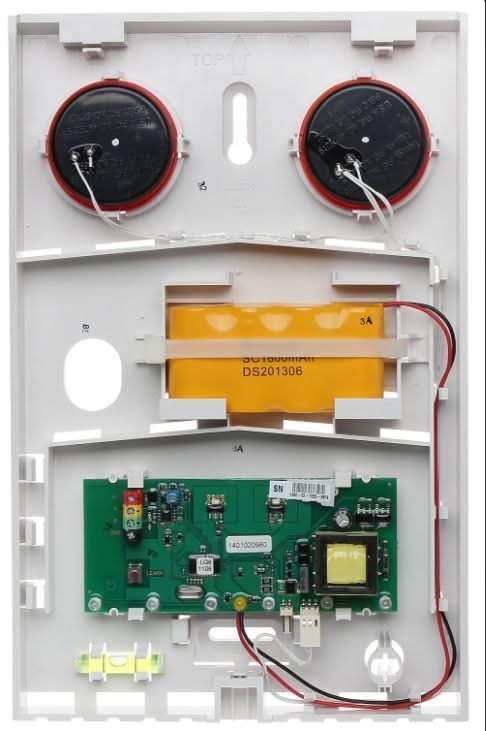

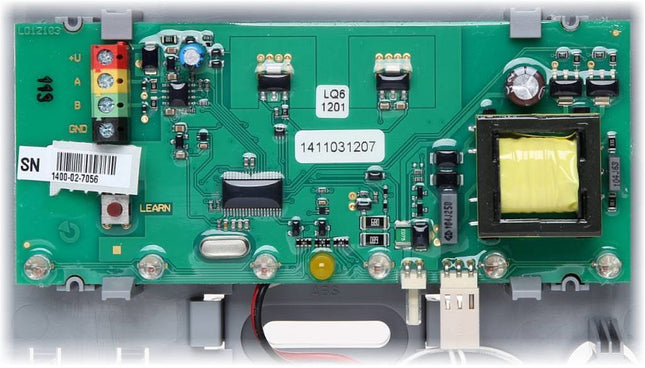

Jablotron JA-111A BUS external siren base The Jablotron JA-111A BUS external siren base is designed for audible alarms, tones and PG output activation and deactivation. The siren communicates and is powered by the BUS of the control panel. In the event of a power failure, the implemented energy saving function will be used. The siren also has a built-in spirit level so that adjustments can easily be made during installation. It is possible to assign it a zone and it only occupies one position in the alarm system.Specifications: Power from control panel BUS 12 V (9…15 V) Current consumption in standby mode 5mA Current consumption for cable choice 50mA Backup battery NiCd pack 4.8 V/1800 mAhlifetime approx. 3 years - minimum loaded voltage 4.0V - maximum voltage 6.0V reusable battery strap Piezoelectric siren 110 dB/m (with fully charged battery) Dimensions (with cover) 200 x 300 x 70 mm Classification Security grade 2 according to EN 50131-1, EN 50131-4 Environment class IV. general outdoor -25 °C to +60 °C Security grade IP44 Also complies with EN 50130-4, EN 55022, EN 60950-1, EN 50581 Product Info

Read more less

Jablotron JA-1X1A-C-WH plastic cover for outdoor sirenCover for sirens JA-111A, JA-151A, Red flash, white cover made of weatherproof polycarbonate cover.

Read more less

Professional flash, low model, white flash light Suitable for indoor and outdoor use, robust flash, power supply 9-60Vdc.75 flashes per minute.Specifications; CPD/Certificate/Incert number Pending Standard - Wired, Wireless or Hybrid wired Pet tolerant n/a Detection range n/a Detection principle  n/a Security Grade n/a Switch distance n/a Surface-mounted or built-in construction Clamps or molded cable (mtr) clamps Polarized magnetic contact n/a Way of operating n/a Housing material ABS, PC lens Color white Weight (kg) 0.15 Product size (mm) 93x65 IP value IP54 Temperature range -25°C - +70°C Supply voltage 9-60 Vdc Power consumption (W) 2.7 Switching power (W) - Transmit power (mW) - Transmission range (m) - Switch voltage and current - Batteries used - Number of Batteries / Batteries n/a / n.a. Battery / accumulator included? n/a Autonomy n/a

Read more less
