Description

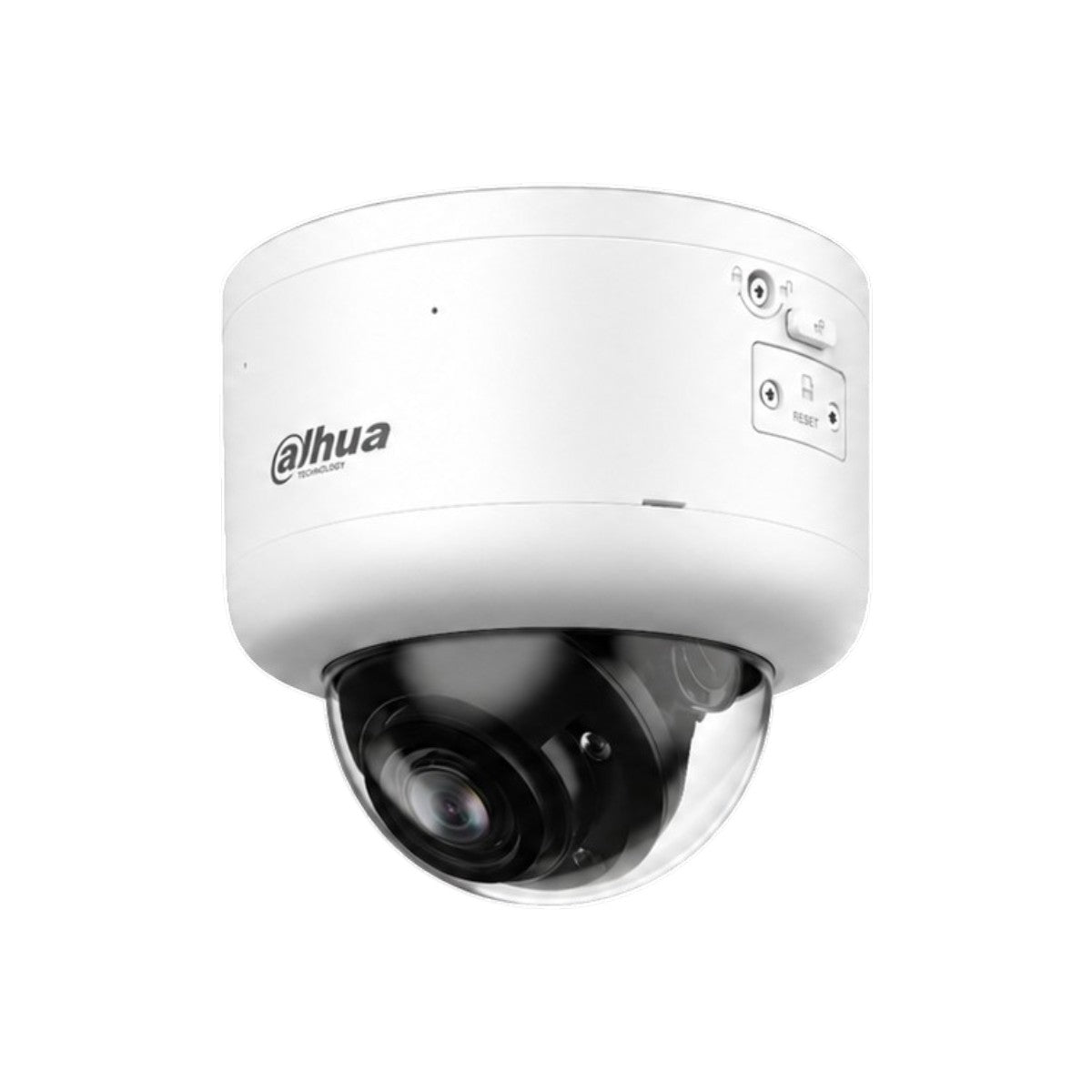

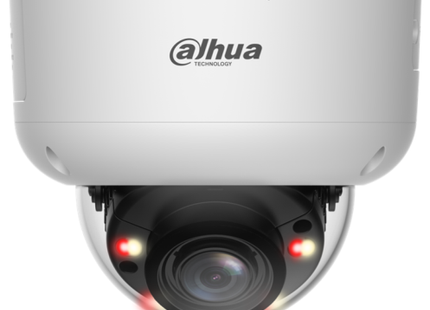

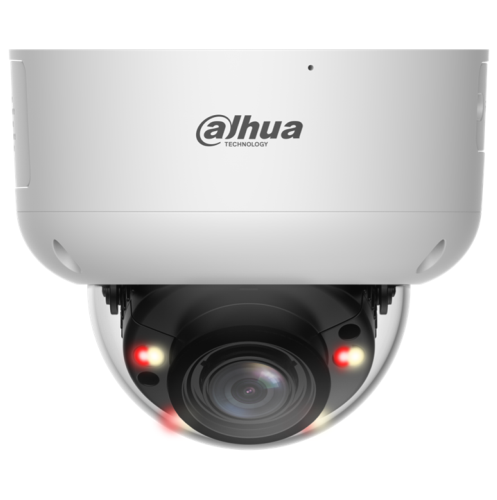

The Dahua IPC-HDBW5459Z-ZHE-PV-PRO is a professional 4MP WizMind dome camera featuring WizColor technology, a fast F1.2 lens, and advanced AI capabilities. Thanks to its large 1/1.8" CMOS sensor, the camera delivers highly detailed images, even in low-light conditions.
The motorized 2.7–12 mm varifocal lens allows the field of view to be precisely adjusted to the situation. With PTRZ technology, pan, tilt, rotation, and zoom can be adjusted remotely, which significantly simplifies installation and fine-tuning.
For nighttime surveillance, this camera features Smart Dual Light with both infrared and warm-white lighting. The infrared range is up to 60 meters, and the warm-white light range is up to 50 meters. In combination with WizColor, the camera can deliver usable color images even under very dark conditions.
WizMind AI technology supports features such as perimeter security, AcuPick, face detection, video metadata, and people counting. For perimeter detection, the camera can distinguish between people, vehicles, and animals, among other things, allowing for better filtering of false alarms.
In addition, the camera features a built-in dual microphone and speaker for two-way audio. Thanks to its rugged metal housing with IP67 and IK10 ratings, the camera is suitable for demanding indoor and outdoor applications.
Key Features
• 4MP resolution – up to 2688 × 1520 pixels•
Large 1/1.8"
CMOS image sensor• Dahua WizColor for excellent low-light performance•
Fast F1.2
lens• Motorized 2.7–12 mm varifocal lens•
Horizontal field of view from approximately 114° to
48°• PTRZ –
remote-adjustable pan, tilt, rotation, and zoom• Smart Dual Light with infrared and warm white light•
Infrared night vision up to 60 meters•
Warm white illumination up to 50 meters•
140 dB WDR for situations with strong
backlighting• Advanced WizMind AI analysis•
Perimeter security with classification of people, vehicles, and animals•
Support for AcuPick, face detection, video metadata, and people
counting• Built-in dual microphone and
speaker• Supports two-way audio•
Support for MicroSD cards up to 1
TB• H.265 / H.264 and Smart H.265+ / Smart H.264+
compression• Up to 4 video streams•
PoE+ (802.3at), ePoE, or 12V DC power supply•
2 alarm inputs and 2 alarm outputs•
Audio input and audio output•
RS-485 connection•
Built-in window heating to protect against moisture, ice, snow, and condensation•
Metal
housing• IP67
weatherproof• IK10
vandal-resistant• Operating temperature range from -40 °C to +60 °C
Technical Specifications
Resolution: 4MP (2688 × 1520)
Image sensor: 1/1.8" CMOS
Lens: 2.7–12 mm motorized varifocal
Aperture: F1.2, P-Iris
Horizontal field of view: 114°–48°
Vertical field of view: 59°–27°
WDR: 140 dB
IR range: up to 60 meters
Warm light range: up to 50 meters
Minimum illumination: 0.0003 lux color / 0.0001 lux black-and-white
Frame rate: up to 25/30 fps at 4MP and up to 50/60 fps at 1080p
Video compression: H.265, H.264, MJPEG, Smart H.265+/H.264+, and AI H.265/H.264
Audio: built-in dual microphone + speaker, audio in/out
Storage: MicroSD up to 1 TB
Alarm: 2× input / 2× output
Power: 12V DC / PoE+ (802.3at) / ePoE
Protection: IP67 / IK10
Material: metal
Dimensions: 150 × Ø159 mm
Weight: approx. 1.4 kg
Operating temperature: -40 °C to +60 °C
