Description

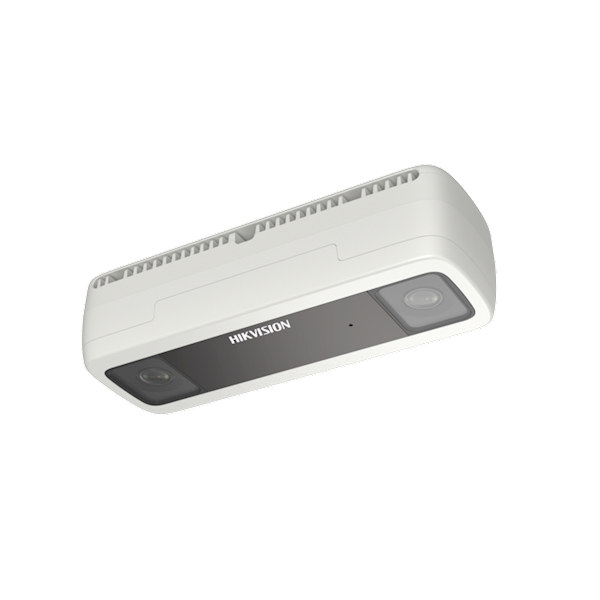

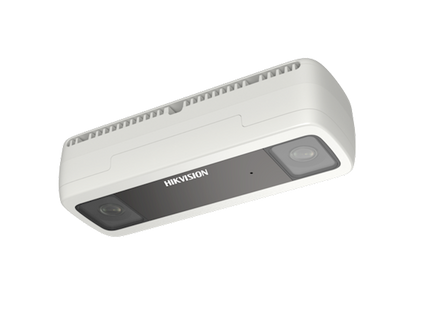

The people counting network camera Hikvision DS-2CD6825G0/C-IVS incorporates deep learning algorithms and offers high accuracy and with a dual-lens configuration that provides 3D imaging to distinguish people from inanimate objects and shadows, achieves an accuracy of more than 97%. In addition to excelling in ease of use, the DS-2CD6825G0/C-IVS camera also makes downloading and interpreting stored data easier than ever before.
Users can export the information to Excel and can view all information on a daily, weekly, monthly or annual basis as needed. This provides a very detailed overview of the number of people entering, leaving or passing through the building during a certain period.
Specifications:
- Camera
-
Image Sensor1/2.7" Progressive Scan CMOS
-
Max. Resolution2560 × 1440
-
Min. IlluminationColor: 0.0176 Lux @ (F2.25, AGC ON),B/W: 0.0035 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
-
Shutter Time1/25 s to 1/100,000 s
-
Day & NightIR cut filter
- Lens
-
Lens TypeFixed focal lens, 2mm
-
Focal Length & FOV2mm, horizontal FOV 104.5°, vertical FOV 70.5°, diagonal FOV 112°
-
Lens mountM12
-
ApertureF2.25
- Illuminator
-
Supplement Light TypeIR
-
Supplement Light RangeUp to 6 m
-
IR Wavelength850nm
- Video
-
MainStream
- 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
-
Sub Stream
- 50 Hz: 25 fps (704 × 576, 640 × 480)
- 60 Hz: 30 fps (704 × 480, 640 × 480)
-
Video Compression
- Main stream: H.265+/H.265/H.264+/H.264,
- Sub stream: H.265/H.264/MJPEG
-
Video Bit Rate32 Kbps to 8 Mbps
-
H.264 TypeBaseline Profile, Main Profile, High Profile
-
H.265 TypeMain Profile
-
Scalable Video Coding (SVC)H.264 and H.265 encoding
-
Region of Interest (ROI)4 fixed region(s) for main stream and sub-stream
- Audio
-
Audio Type-S: Mono sound
-
Audio Compression-S: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
-
Audio Bit Rate-S: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
-
Audio Sampling Rate-S: 8kHz/16kHz/32kHz/44.1kHz/48kHz
-
Environment Noise Filtering-S: Yes
- Network
-
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
-
Simultaneous Live ViewUp to 20 channels
-
APIOpen Network Video Interface (Profile S, Profile G),ISAPI,SDK
-
User/Host Up to 32 users 3 user levels: administrator, operator, and user
-
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
-
ClientiVMS-4200,Hik-Connect
-
Web Browser
Plugin required live view: IE 10, IE 11,
Plugin free live view: Chrome 57.0+, Firefox 52.0+,
Local service: Chrome 57.0+, Firefox 52.0+, Safari12+
- Image
-
Image SettingsSaturation, brightness, contrast, sharpness, adjustable by client software or web browser
-
Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger (-S)
-
Wide Dynamic Range (WDR)120 dB
-
Image EnhancementBLC,HLC,3D DNR,defog
-
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
- Interface
-
Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
-
On Board StorageBuilt-in eMMC storage, up to 8 GB for people counting data
-
Built-in MicrophoneYes
-
Audio
-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
-S: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
-
Alarm-S: 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
-
RS-485-S: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Event
-
Basic EventMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
-
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
- Deep Learning Function
-
People Counting
Counts people entering and exiting separately
Supports real-time uploading and uploading by statistic cycle
Sends email reports on daily, weekly, monthly or annual basis
Supports target filtering by height
- General
-
Power
- 12 VDC ± 20%, 0.58 A, max. 7.0 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
- PoE: 802.3af, Type 1, Class 3, 36 V to 57 V, 0.24 A to 0.15 A, max. 8.5 W
-
MaterialFront cover: plastic, camera body: metal
-
Dimension168mm × 61mm × 41mm (6.6" × 2.4" × 1.6")
-
Package Dimension235 mm × 120 mm × 125 mm (9.2" × 4.7" × 4.9")
-
WeightApprox. 435g (1 lb.)
-
With Package WeightApprox. 835g (1.6 lb.)
-
Storage Conditions-30 °C to 60 °C (-22 °F to 144 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions
