Description

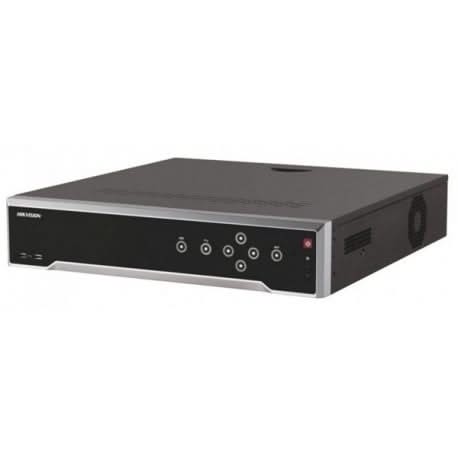

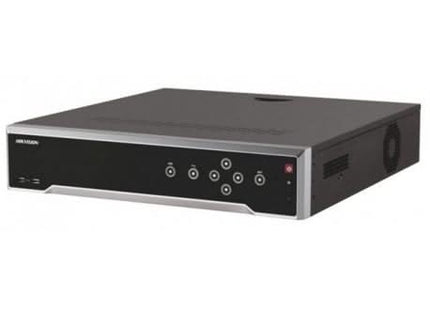

DS-7732NI-M4, 32 Channel, 4 x Bay HDD, "M Series", 4K NVR
The Hikvision DS-7732NI-M4 is a powerful Network Video Recorder (NVR) from the "M series". Designed to tackle advanced video surveillance applications, this NVR model offers excellent performance and versatility. Here are some key features and specifications of this NVR model:
32 Channels: The DS-7732NI-M4 supports up to 32 IP cameras, making it suitable for large-scale security systems where many cameras are needed.
4K Ultra HD Resolution: This NVR model is capable of capturing and playing back video in 4K Ultra HD resolution, ensuring extremely detailed and sharp video quality.
4 Bay HDD Slots: The NVR has four hard disk drive (HDD) bays for storage, providing ample storage capacity to record and store video footage. The exact storage capacity depends on the size and number of hard drives installed.
HDMI and VGA outputs: The NVR system supports HDMI and VGA outputs for connecting a monitor or TV to view live video.
Network Access: This NVR model provides remote access over the network, allowing users to view live video, play recorded videos and manage the system remotely.
Advanced Security Features: Hikvision NVRs are equipped with advanced security features such as password protection, authorization management and secure connections to ensure the integrity and confidentiality of video data.
This NVR model is ideal for situations where advanced surveillance needs, high image quality and large storage capacity are required. It can be deployed in large-scale security systems such as commercial buildings, large shopping centers, urban surveillance, and other environments where reliable video surveillance is critical. With support for 8K resolution and multiple cameras, this NVR model provides excellent video performance and storage capacity for extensive surveillance applications.
Specifications:
| Number of video channels |
32 |
| HDD Slots |
4x SATA |
| Recording capacity |
320Mbps |
| Stream capacity |
400Mbps |
| Storage capacity |
56TB |
| Video connections |
2x HDMI, 2x VGA |
| Video output |
32x 1080p |
| Audio connections |
1x RCA output |
| Alarm input/outputs |
16x input, 9x output |
| Network ports |
2x 10/100/1000 Mbps |
| PoE |
Without PoE |
| PoE support |
None |
| PoE capacity |
None |
| USB ports |
2x USB 2.0, 1x USB 3.0 |
| Video compression |
H.265+ |
