Description

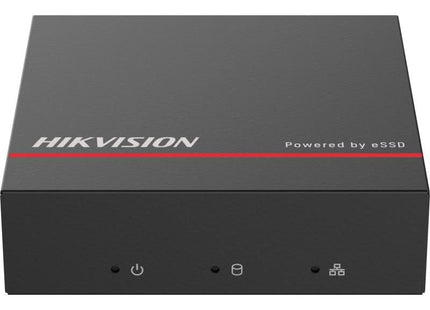

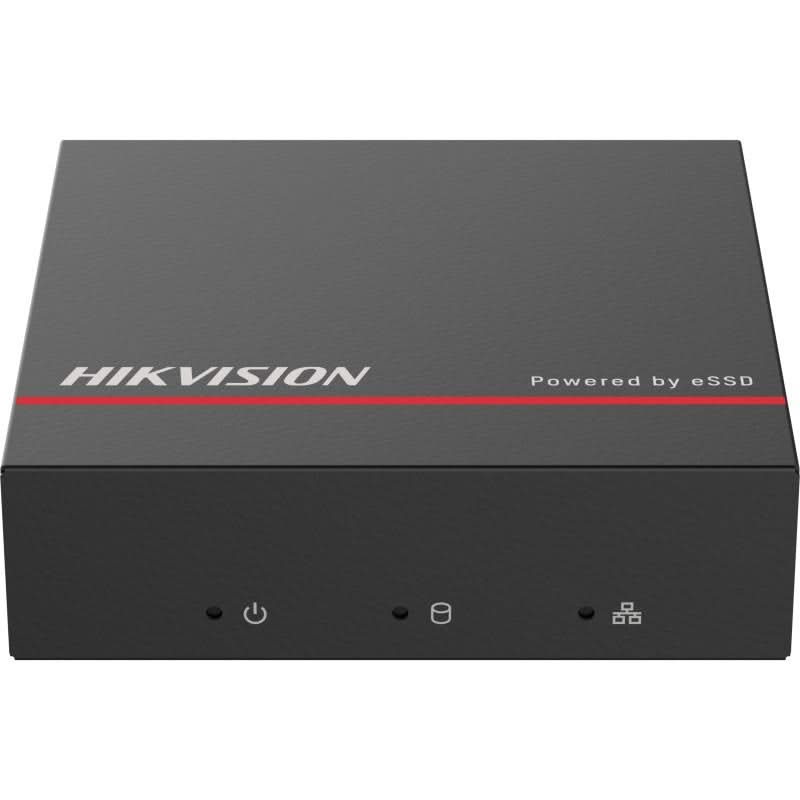

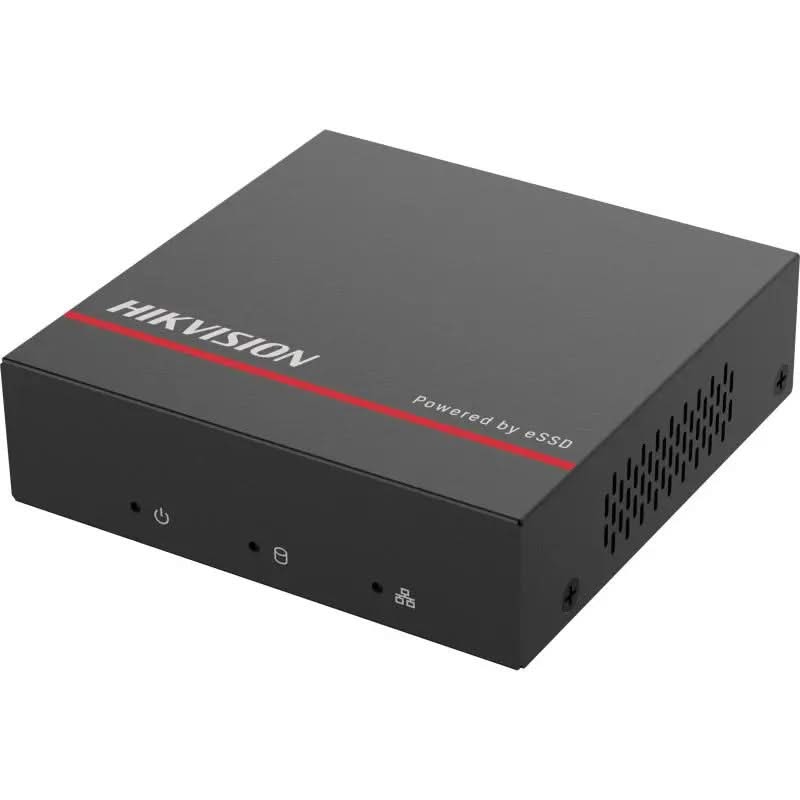

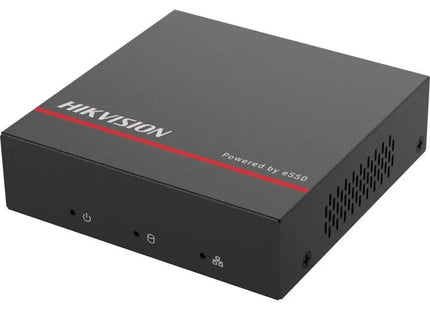

Hikvision DS-E08NI-Q1, Incl. 2TB SSD, Suitable for 8 IP cameras. Without PoE, so you need a PoE switch with this model.
Hikvision eSSD NVR is an updated look at what NVRs will look like. This recorder is particularly compact and energy efficient. The recorder is suitable for recording cameras up to 4MP. The views is maximum 1080p and has an outgoing bandwidth of 60Mbps. The eNVRs are available with PoE and without PoE
Compact NVR with full functionality
Due to its very compact size, the NVR can be easily placed anywhere. In the meter cupboard, TV cabinet or directly behind the monitor. Despite its compact size, the NVR functions just like other recorders from Hikvision. Includes support for AcuSense detection
Energy efficient, stable and shock resistant
This NVR is thanks to the use of an SSD hard drive. This drive consumes much less energy than traditional hard drives. An SSD is also less sensitive to vibrations and damage. Which also makes the NVR extremely suitable for mobile solutions or temporary camera masts
Completely silent
Because the eSSD NVR does not have a fan. The SSD heats up less than a traditional drive. This means no additional cooling is required. An SSD drive is also quieter than a traditional hard drive
Environmentally friendly:
The eSSD consumes approximately 44% energy compared to an equal NVR with a traditional hard drive. Due to its compact size, the recorder also takes up less space and weight during transport and the packaging in which the NVR comes is completely biodegradable
Available with PoE ports for Plug & Play operation.
The eSSD NVR is available with and without PoE ports. The models with PoE ports are suitable for plug & play with Hikvision cameras
HDMI output and Decoding capacity for 4x 1080P or 2x 4MP, up to 60Mbps outgoing bandwidth.
The data processing capacity of an eSSD is currently somewhat lower than a traditional drive, so that the eSSD has a longer lifespan. To keep the NVR compact, it is also equipped with a slightly lighter GPU. As a result, the specifications for the display capacity of the local HDMI output are somewhat lower than other NVR
In the box:
- DS-E08NI-Q1, 2TB
- Lan cable
- Mouse
- Manual
Specifications:
| Camera channels |
4 |
| Interface |
1x HDMI |
| Resolution HDMI 1 |
1920x1080 |
| Simultaneous playback |
4 |
| Compression |
H.265, H.264 |
| Resolution |
4MP, 3MP, 1080p, 720p |
| Incoming bandwidth |
60Mbps |
| Outgoing bandwidth |
60Mbps |
| Synchronized playback |
4 |
| Ethernet |
1x 10/100Mbps |
| PoE ports |
None |
| Including HDD |
2TB |
| Number of ports |
1x |
| USB |
2x |
| RS-232 |
No |
| RS-485 |
No |
| Nutrition |
12 VDC, 1.36 A |
| Consumption |
<10W (without HDD) |
| Work environment |
-10 to +45° |
| Dimension |
95mm × 97mm × 27mm |
