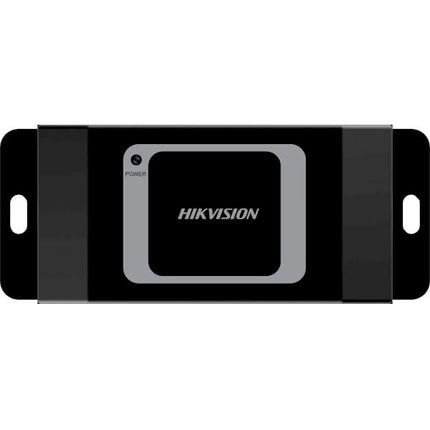

DS-K2M061 Secure module

Description

The DS-K2M060 Secure module is the control link between the access control terminal and the lock, including the magnetic door, the lock, the exit button and so on. It can be applied to keep the door closed when the door is damaged.

With stand-alone modules and intercom applications, the lock can be switched in the outdoor station or card reader. To prevent the switching from taking place on the non-secured side.

Product specifications:

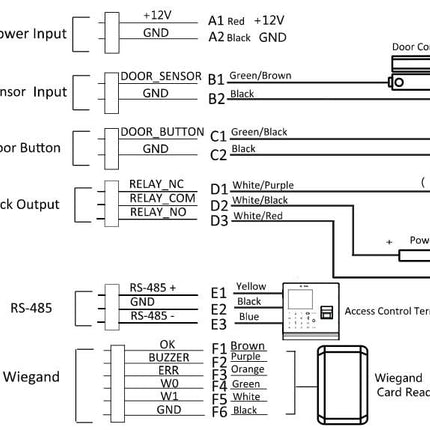

  • Communicates with the access control terminal via RS-485 to execute the terminal's commands, including door open, door close, normally open and normally closed
  • Collects the magnetic door signal, exit button signal and tamper signal and sends them to the access control terminal
  • Supports tamper alarm
  • Supports RS-485 communication indicators to display communication status
  • 4-channel DIP switch that ID no. configuration supports
  • Supports Wiegand interface to connect Wiegand card reader to enter/exist access control terminal by swiping the card
  • Fire interface and exit button link

Product Info

DS-K2M061 Secure module

Product form

In stock, delivery time 1 to 3 working days

€67,00 Incl. VAT

      • Free shipping from €99
      • Free returns within 30 days

      Description

      The DS-K2M060 Secure module is the control link between the access control terminal and the lock, including the magnetic door, the lock, the exit button and so on. It can be applied to keep the door closed when the door is damaged.

      With stand-alone modules and intercom applications, the lock can be switched in the outdoor station or card reader. To prevent the switching from taking place on the non-secured side.

      Product specifications:

      • Communicates with the access control terminal via RS-485 to execute the terminal's commands, including door open, door close, normally open and normally closed
      • Collects the magnetic door signal, exit button signal and tamper signal and sends them to the access control terminal
      • Supports tamper alarm
      • Supports RS-485 communication indicators to display communication status
      • 4-channel DIP switch that ID no. configuration supports
      • Supports Wiegand interface to connect Wiegand card reader to enter/exist access control terminal by swiping the card
      • Fire interface and exit button link
