Description

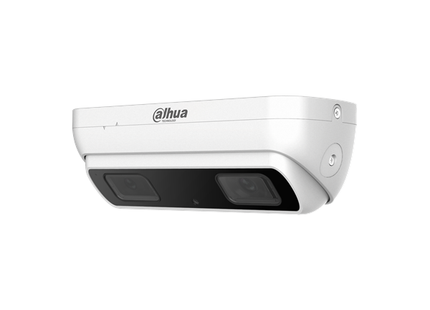

The People Count camera has been specifically developed for counting people. For example, the camera counts both incoming and outgoing people and the camera has various options for processing this report. To get optimal results, the camera has crucial and advanced technology. An important part of this are the 2 lenses. Thanks to these 2 lenses, the camera is able to recognize and track people in 3 dimensions. This enables the camera to distinguish people from other objects. Partly because of this, the result of the count is very accurate.
Specifications:
-
Camera
- Number of image sensors: 1
- Image sensor: 1/2.8
- Resolution: 2560 x 1440
- Number of pixels: 4MP
- Minimum lighting strength (in color): 0.007 lux
- Minimum lighting intensity (LED on (black/white)): 0 Lux
- Lighting: IR
- LED distance: up to 20m
- LED On/Off (Day/Night): Auto/Manual
- Number of LED(s): 1 LED
- Noise reduction: 3DNR
- Video Output: Yes
- Video Output Note: For adjustment only
-
Lens
- Lens type: Fixed lens
- Iris: Auto Iris
- Focal length: 2.8mm
- Maximum aperture: F1.6
- Horizontal opening angle: 95°
- Vertical opening angle: 52°
- Focus controls: None
-
Video
- Stream option: 3 streams
- Video compression: H.264, H.264+, H.265, H.265+, MJPEG
- Frames per second (Main stream): 25fps @2560 × 1440
- 2nd stream: 25fps D1: 720 x 576
- 3rd stream: 25fps @1920 x 1080
- Bit rate: H.264: 32 kbps–8192 kbps, H.265: 12 kbps–8192 kbps
- Day/Night: Auto (filter), Color, Black/White
- Light compensation: BLC, HLC, SSA, WDR(120dB)
- Motion detection: On/Off
- Smart Features:
- AI Face Capture/Attributes
- AI People Counting
- AI Perimeter Protection
- TripWire
- Smart IR: Yes
- Electronic Image Stabilization (EIS): No
- Defog: Yes
- Privacy masking: No
-
Audio
- Built-in microphone: Yes
- Audio input: Yes
- Audio Output: Yes
- Audio Compression: AAC, G.711 A, G.711 MU, G.726
-
Network
- Ethernet: RJ-45 (100/1000Base-T)
- SD card storage option: Yes
- Maximum Storage Capacity SD Card: 512 GB
-
Interface
- RS-485: No
- Alarm: Yes
- Number of channels in: 2x
- Number of channels out: 2x
-
Electric
- Including power supply: No
- Power supply: 12V DC, PoE (Type IEEE 802.3af)
- Max Consumption: 12.9W
-
Environment
- Working temperature: -30°C ~ + 60°C
- Water resistance: IP67
-
Construction
- Material: Metal
- Height: 62mm
- Width: 204mm
- Depth: 78mm
- Weight: 0.8 Kg
