Description

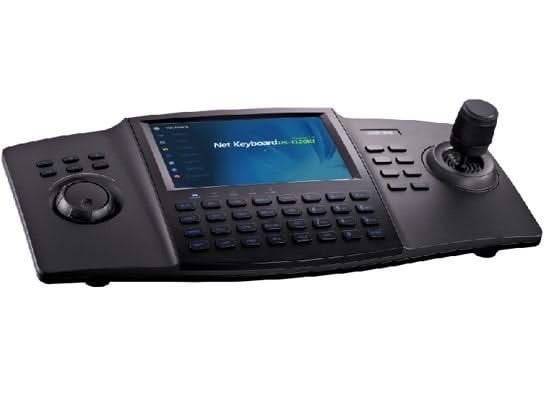

Hikvision DS-1100K
Keyboard For Controlling Hikvision DVR, PTZ dome cameras
DS-1100KI Keyboard with joystick from Hikvision, 800 × 480 LCD touch panel, resolution up to 1080p, 3-axis joystick RS232, RS485 & Network Connection, Joystick Control & PTZ Functions, Keyboard to control: Hikvision DVR Standalone, Hikvision Speed Dome.
Product description
DS-1100KI Keyboard with joystick from Hikvision.
• Ergonomic design with 800 × 480 LCD touch panel
• Live display and playback of on-screen video at up to 1080p resolution
• 1-channel video decoding for local preview
• Video recording and recording to local U-flash disk
• Compatible with DVR / DVS, matrix, network camera / dome, PC DVR, etc.
• Support 15 operators, and each user is allowed to control 256 devices
| Control mode |
|
| Audio Input/Output |
| Line In: |
1-ch, 3.5mm connector (2.0Vp-p, 1kO) |
| Audio Out: |
1-ch, 3.5mm connector (Linear, 600O) |
|
| External interface |
| Communication interface: |
1 RJ45 10M/100M/1000M adaptive Ethernet interface;
1 RS-232 interface;
1 RS-485 interface;
1 USB2.0 interface |
|
| General |
| LCD screen: |
7” TFT LCD monitor with touch panel |
| Joystick: |
3-axis joystick |
| Power supply: |
12VDC |
| Power consumption: |
=15W |
| Working temperature: |
-10°C ~ +55°C |
| Dimensions: |
110mm×193mm×435mm |
| Weight: |
2Kg |
|
