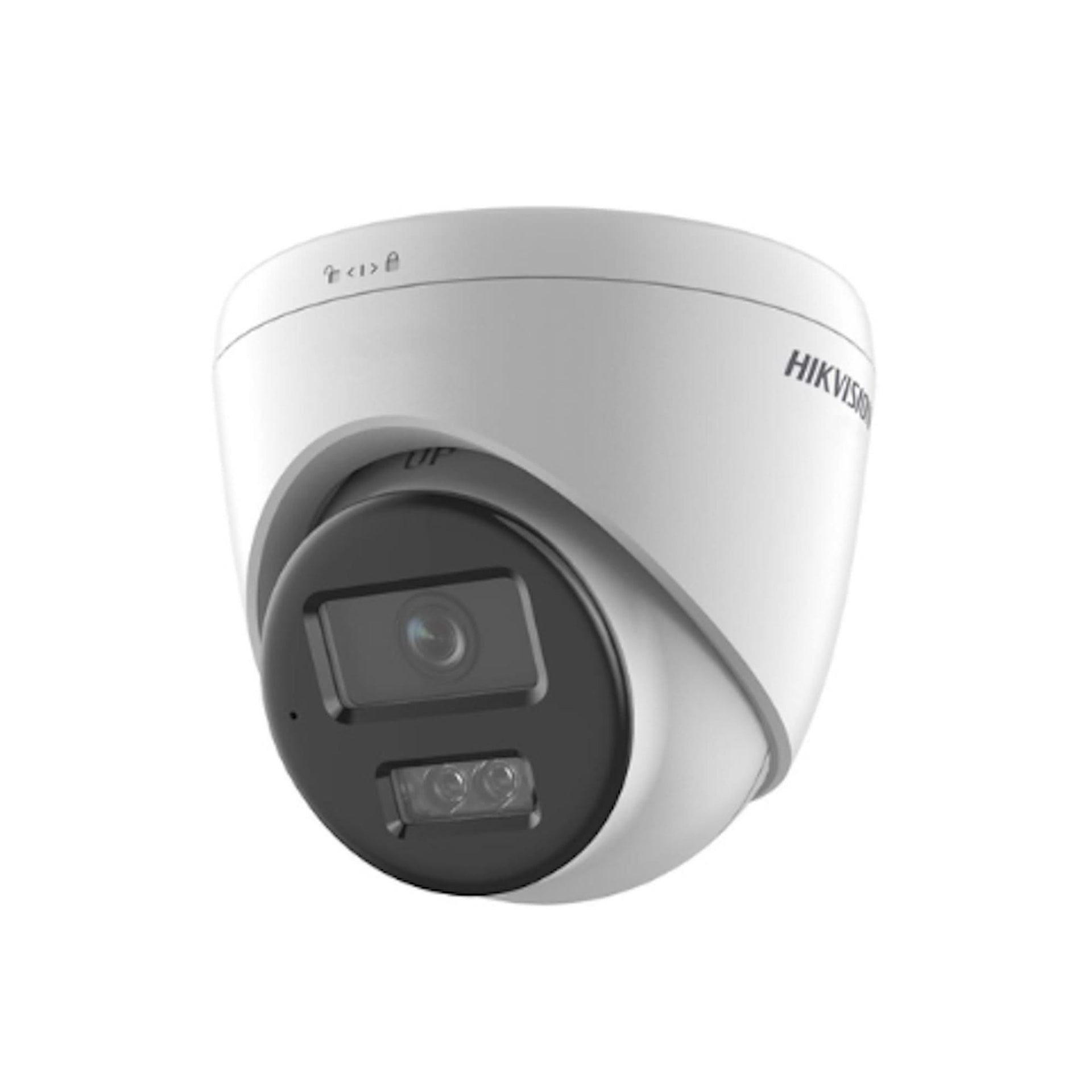

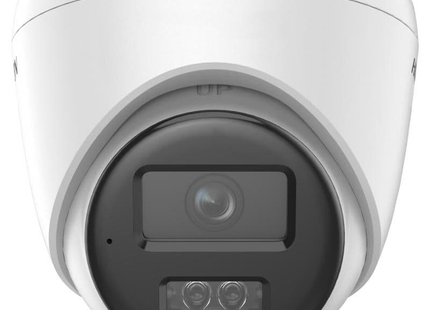

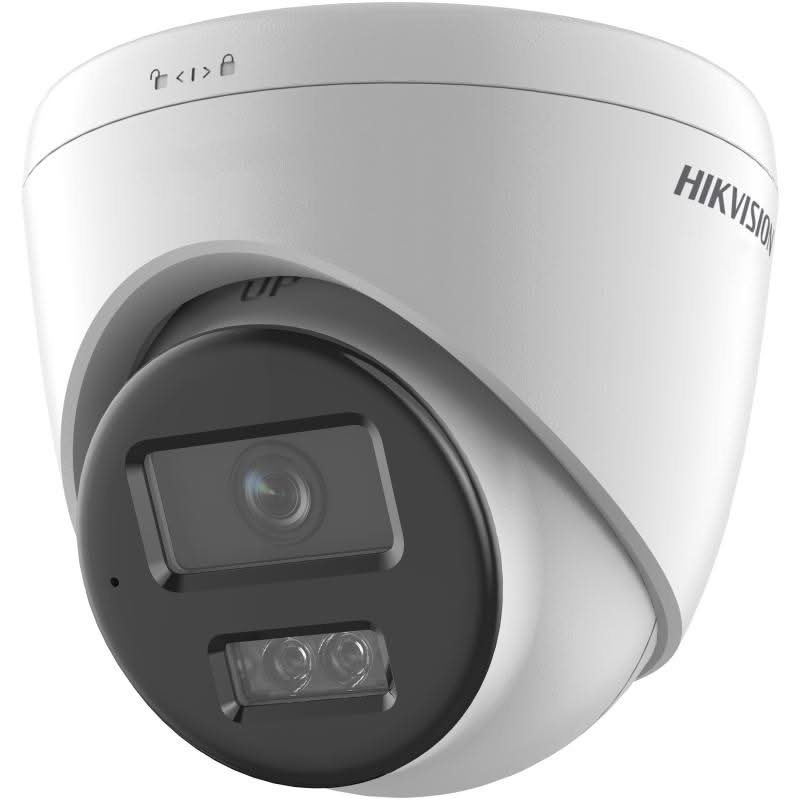

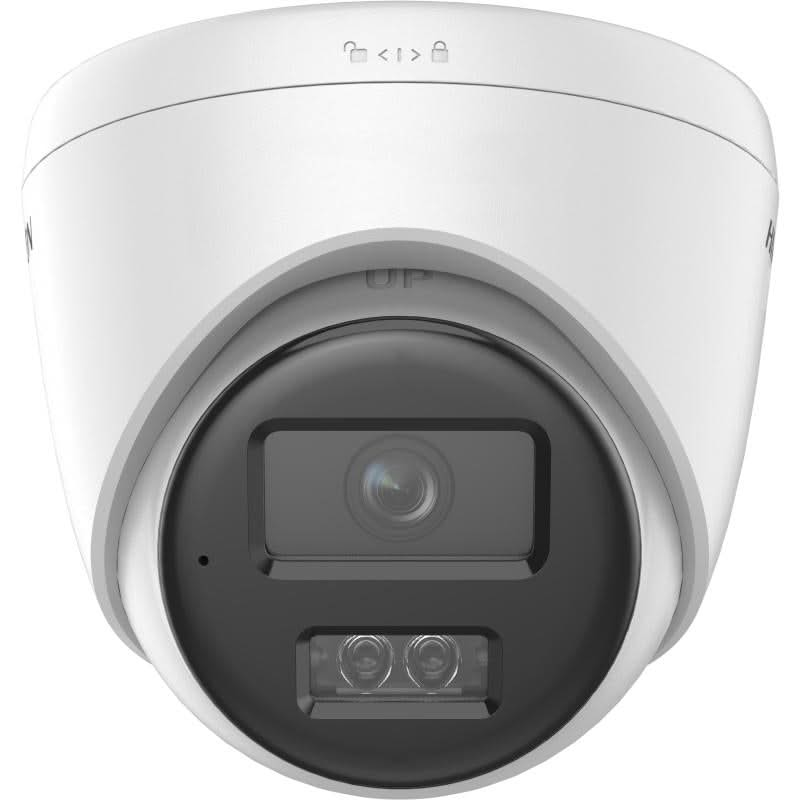

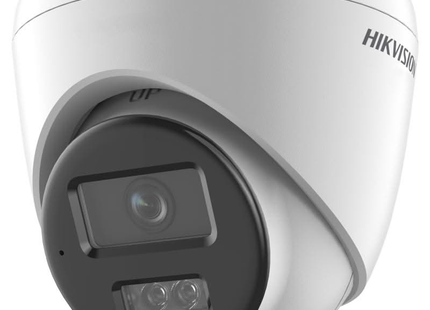

Hikvision DS-2CD1383G2-LIU(F), 8MP/4K Turret Camera, Smart Hybrid Light, PoE, Micro SD slot, Smart Detection DEMO

Description

Available from our showroom in original packaging and in complete condition. Like new. 2-year warranty.
The Hikvision DS-2CD1383G2-LIU(F) is an advanced network camera designed for high image quality and reliable security. This camera is part of the Hikvision “ColorVu” series, which means it delivers excellent color images even in very low-light conditions. This model is ideal for both indoor and outdoor applications, such as in parking lots, on streets, or at building entrances.

Key features:
  • 8 MP Resolution (4K UHD): The camera offers a super-high resolution of 8 megapixels, enabling detailed images for the accurate identification of objects and people.
  • ColorVu Technology: Thanks to its built-in smart lighting and advanced sensor, the camera can capture color images even in virtually no light (0.0005 lux). This makes the camera particularly well-suited for 24/7 surveillance.
  • Built-in microphone: This model is equipped with a built-in microphone, allowing you to hear what is being said.
  • Smart IR: The camera features infrared lighting that automatically adjusts depending on the situation, ensuring optimal brightness and visibility in the dark without overexposure.
  • 3D image enhancement: The camera is equipped with technology that optimizes image quality, even in dynamic or challenging lighting conditions.
  • IP67 Certification: The camera’s weather-resistant design makes it suitable for use in all weather conditions, from rain and snow to extreme heat.
  • External storage option: Supports local image storage via a microSD card (up to 256 GB) for redundant storage.
  • Power over Ethernet (PoE): Simple, single-cable installation for both power and network connectivity, reducing installation costs and time.

Applications:

  • Residential neighborhoods and buildings
  • Commercial buildings and stores
  • Parking lots
  • Public spaces and streets

The Hikvision DS-2CD1383G2-LIU(F) combines the power of high resolution and excellent night vision capabilities with user-friendly functionality, making it a versatile choice for high-quality surveillance solutions.

Specifications:

  • Camera

    • Image Sensor: 1/2.7" Progressive Scan CMOS
    • Maximum Resolution: 3840 × 2160
    • Minimum Illumination: Color: 0.01 Lux @ (F2.0, AGC ON), Black-and-White: 0 Lux with IR
    • Shutter Speed: 1/3 s to 1/100,000 s
    • Day & Night: IR-cut filter
    • Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

  • Lens

    • Lens Type: Fixed focal length lens, 2.8 mm and 4 mm optional
    • Focal Length & FOV:
      • 2.8 mm: Horizontal FOV 113°, Vertical FOV 62°, Diagonal FOV 134°
      • 4 mm: Horizontal FOV 90°, Vertical FOV 49°, Diagonal FOV 108°
    • Lens Mount: M12
    • Aperture: F2.0
    • DORI (Detection, Observation, Recognition, Identification):
      • 2.8 mm: D: 79 m, O: 31 m, R: 15 m, I: 7 m
      • 4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m

  • Illumination

    • Supplementary Illumination Type: IR, White Light
    • Additional Lighting Range: Up to 30 m
    • Smart Auxiliary Lighting: Yes
    • IR Wavelength: 850 nm

  • Video

    • Main Power:
      • 50 Hz: 12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
      • 60 Hz: 15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    • Substream:
      • 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
      • 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
    • Video compression:
      • Main stream: H.265+/H.265/H.264+/H.264
      • Substream: H.265/H.264/MJPEG
    • Video bitrate: 32 Kbps to 16 Mbps
    • H.264 Type: Baseline Profile, Main Profile, High Profile
    • H.265 Type: Main Profile
    • Bitrate Control: CBR, VBR
    • Region of Interest (ROI): 1 fixed region for main stream
    • Scalable Video Coding (SVC): H.264 and H.265 encoding

  • Audio

    • Audio Type: Mono audio
    • Ambient Noise Filtering: Yes
    • Audio Sampling Frequency: 8 kHz/16 kHz
    • Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
    • Audio Bitrate:
      • 64 Kbps (G.711ulaw/G.711alaw)
      • 16 Kbps (G.722.1)
      • 16 Kbps (G.726)
      • 32 to 160 Kbps (MP2L2)
      • 16 to 64 Kbps (AAC-LC)

  • Network

    • Security: Password protection, advanced password, watermark, basic and digest authentication for HTTP, WSSE, Open Network Video Interface (ONVIF), security log, host authentication (MAC address)
    • Simultaneous Live View: Up to 6 channels
    • API: ONVIF (Profile S, Profile T, Profile G (only supported by the -F model)), ISAPI, SDK
    • Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
    • Users/Hosts: Up to 32 users, 3 user levels: administrator, operator, and user
    • Client: iVMS-4200, Hik-Connect
    • Web browser: Plug-in required for live view: IE 10, IE 11; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Image

    • Wide Dynamic Range (WDR): 120 dB
    • SNR (Signal-to-Noise Ratio): ≥ 52 dB
    • Day/Night Switch: Day, Night, Auto, Schedule
    • Image Enhancement: BLC, HLC, 3D DNR
    • Image Settings: Rotation Mode, Saturation, Brightness, Contrast, Sharpness, Gain, White Balance, adjustable via client software or web browser
    • Privacy Mask: 4 programmable polygon privacy masks

  • Interface

    • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
    • On-Board Storage: -F: Integrated memory card slot, supports microSD/microSDHC/microSDXC cards, up to 512 GB
    • Built-in Microphone: Yes
    • Reset Button: -F: Yes

  • Events

    • Basic Events: Motion detection (supports alarm triggering by specific target types (people and vehicles)), video tampering detection, exceptions
    • Linkage: Upload to FTP/memory card (-F), send email, notifications to monitoring center, trigger recording (-F), trigger capture

  • General

    • Power Supply: 12 VDC ± 25%, 0.41 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W
    • Material: Metal & Plastic
    • Dimensions: Ø110 mm × 93 mm
    • Packaging Dimensions: 150 mm × 150 mm × 141 mm
    • Weight: Approximately 385 g
    • Weight with Packaging: Approximately 586 g
    • Storage conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
    • Start-up and operating conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
    • Language: English
