Description

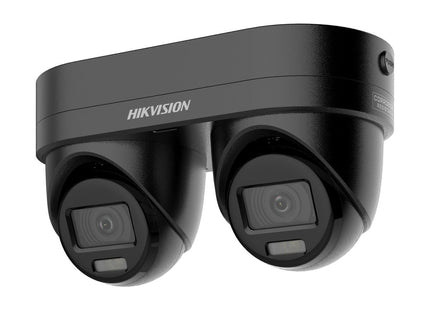

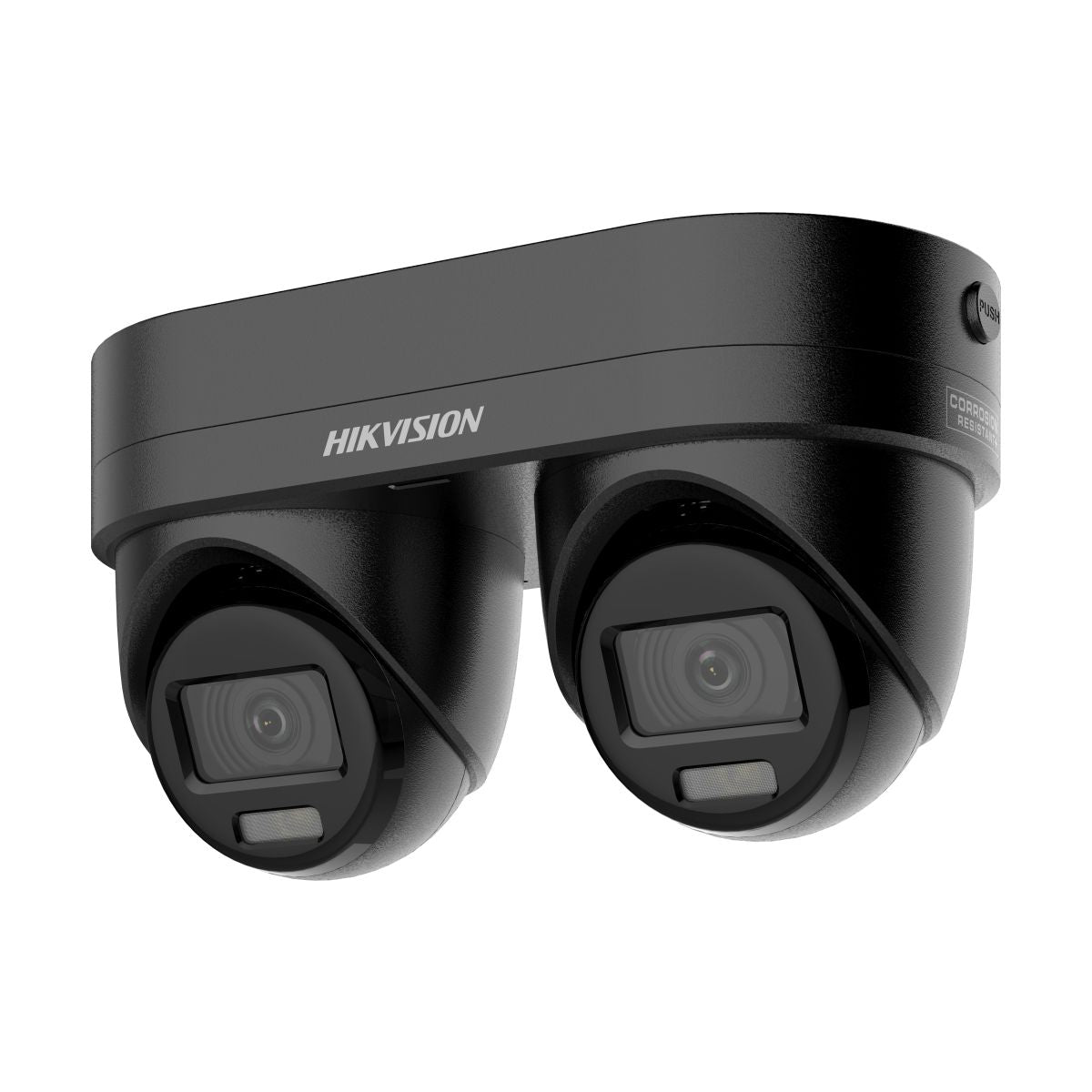

The Hikvision DS-2CD2346G3D-IZ2UY/SL is an advanced turret network camera that combines two independent 4MP cameras in a single compact housing. With a total image resolution of 8MP, smart AcuSense detection, and excellent low-light performance, this camera offers a powerful solution for professional video surveillance of commercial properties, entrances, parking lots, and outdoor areas.
Thanks to the motorized varifocal lenses with adjustable focal lengths of 2.8 and 4 mm, the image can be tailored to the desired observation area. DarkFighter technology ensures clear images in low ambient light, while the infrared illumination provides support for surveillance in the dark up to 30 meters.
The intelligent AcuSense technology uses deep learning to distinguish people and vehicles from other moving objects. This reduces unnecessary alerts and allows for more accurate detection of relevant events. Features such as line crossing, area intrusion, and entering or leaving a zone enable targeted security.
For active prevention, the DS-2CD2346G3D-IZ2UY/SL features a white strobe light and a built-in speaker for an audible alarm. When an event is detected, the camera can not only send an alert but also immediately warn and deter potential intruders. The dual built-in microphones also provide audio recording with noise reduction.
The camera supports Power over Ethernet (PoE+) for power and network connectivity via a single cable. Footage can be stored locally on a microSD card with up to 512 GB of storage or via a compatible network storage system. Thanks to its IP67 protection rating and corrosion-resistant NEMA 4X design, the camera is suitable for demanding indoor and outdoor applications.
Key Features
- Two independent camera channels in a single housing, each with 4MP resolution
- Total resolution of 8MP for detailed surveillance images
- Motorized 2.8- and 4-mm varifocal lenses
- DarkFighter technology for excellent image quality in low-light conditions
- Infrared night vision up to 30 meters
- AcuSense AI detection to distinguish between people and vehicles
- Smart perimeter security with line-crossing and zone detection
- White strobe light and built-in speaker for active deterrence
- Dual microphones with noise cancellation
- Support for PoE+ and local storage via microSD up to 512 GB
- IP67 protection and corrosion-resistant NEMA 4X housing
Specifications:
-
-
Model: DS-2CD2346G3D-IZ2UY/SL
-
Camera type: Dual-lens turret IP camera
-
Image sensor: 2 × 1/3" Progressive Scan CMOS
-
Resolution: 2 × 4 MP (2688 × 1520 pixels)
-
Lens: Motorized varifocal lens, 2.8 mm and 4 mm
-
Field of view: Horizontal 99.3° (2.8 mm) / 80° (4 mm)
-
Minimum illumination: 0.001 lux in color
-
Night vision: Infrared up to 30 meters
-
Image technology: Powered by DarkFighter
-
-
AI Detection: AcuSense with person and vehicle classification
-
Perimeter security: Line crossing, intrusion detection, and zone entry/exit
-
Active deterrence: White strobe light and built-in speaker
-
Audio: Dual built-in microphones with noise cancellation
-
Video compression: H.265+, H.265, H.264+, and H.264
-
Frame rate: Up to 25 fps at 50 Hz or 30 fps at 60 Hz
-
Network connection: 1 × RJ45 10/100 Mbps
-
Power supply: 12 V DC or PoE+ (IEEE 802.3at)
-
Maximum power consumption: 18 W via PoE+
-
Local storage: MicroSD/SDHC/SDXC up to 512 GB
-
-
Corrosion resistance: NEMA 4X
-
-
Dimensions: 199.9 × 120.1 × 97.2 mm
-
Weight: Approximately 1,200 grams
-
Operating temperature: -30 °C to +60 °C
-
Compatibility: Hik-Connect, iVMS-4200, and HikCentral
-
Network standards: ONVIF Profile S and G
