Description
About this product

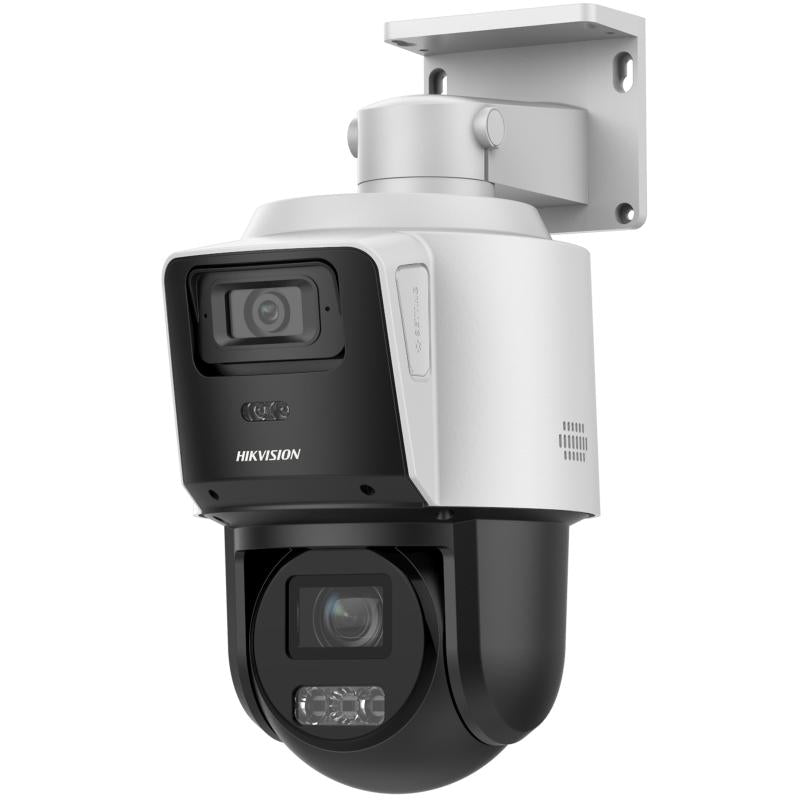

The Hikvision DS-2SE3C404MWG-E/14 is a 4MP+4MP TandemVu Network Speed Dome. The camera combines two image channels in one housing: a fixed 4MP bullet camera that continuously captures the overview, and a 4MP PTZ camera with 4x optical zoom that can pan, tilt and zoom. Both channels use a 1/2.8" progressive scan CMOS sensor with a maximum resolution of 2560 × 1440. The camera is intended for monitoring vast areas such as roads, squares, parks, parking lots and industrial estates.
Main benefits
- Overview and detail at the same time thanks to TandemVu (fixed bullet + movable PTZ)
- Sharp color image in low light thanks to DarkFighter technology
- Fewer false alarms due to built-in person and vehicle detection
- Suitable for harsh outdoor conditions (IP66, -30 °C to 50 °C)
Main features
- 4MP bullet + 4MP PTZ, both 2560 × 1440
- 4x optical zoom and 16x digital zoom (PTZ channel)
- Hybrid lighting: IR + white light (bullet), IR (PTZ)
- IR up to 40 m (PTZ) and 30 m (bullet); white light up to 30 m (bullet)
- WDR 120 dB, HLC, BLC, 3D DNR, defog
- H.265/H.264/MJPEG compression
- Built-in microphone and speaker
- MicroSD slot up to 512 GB
- Power supply via 12V DC or PoE+ (max. 13.5 W)
Application
Intended for outdoor surveillance of large, open areas where both overview and detailed observation are required: perimeter security, infrastructure, parking lots, industrial estates and public spaces.
Why choose this product?
With one camera you can cover both the broad overview and targeted detailed shots, which can limit the number of cameras required. The combination of DarkFighter night vision, smart detection and a robust IP66 housing makes the camera suitable for demanding outdoor applications, day and night.
In the packaging
Not confirmed in the official Hikvision documentation. One supplier mentions an included 12V DC 2A power supply, but this is not confirmed in the official source and should be checked.
Technical specifications
| Property |
Specification |
| Brand |
Hikvision |
| Model |
DS-2SE3C404MWG-E/14(2.8mm) |
| Type |
TandemVu Network Speed Dome (PTZ + bullet) |
| Image sensor |
1/2.8" progressive scan CMOS (both channels) |
| Resolution |
2560 × 1440 (4MP) per channel |
| Min. lighting (bullet) |
Color 0.01 lux @ F1.6; B/W 0.005 lux; 0 lux with IR |
| Min. lighting (PTZ) |
Color 0.01 lux @ F1.5; B/W 0.005 lux; 0 lux with IR |
| Focal length |
Bullet: 2.8mm; PTZ: 2.8–12mm |
| Zoom |
PTZ: 4x optical, 16x digital |
| Diaphragm |
Bullet F1.6; PTZ F1.5–F2.9 |
| Angle of view (bullet) |
H 114.9° / V 62.4° |
| Angle of View (PTZ) |
H 98°–34.2° / V 52°–19.2° |
| Lighting |
Bullet: IR + white light (hybrid); PTZ: IR |
| IR range |
PTZ up to 40m; bullet up to 30 m; white light 30 m |
| PTZ pan range |
0°–350° |
| PTZ tilt range |
PTZ: -5° to 90°; bullet 7°–17° (manual) |
| Presets |
300 |
| Video compression |
H.265, H.264, MJPEG |
| Bitrate |
32kbps – 16384kbps |
| WDR |
120 dB |
| Defog |
Digital |
| Audio |
1 built-in microphone + 1 built-in speaker |
| Network API |
ONVIF (Profile S/G/T), ISAPI, SDK, ISUP |
| Client/app |
iVMS-4200, Hik-Connect |
| Ethernet |
RJ45 10M/100M self-adaptive |
| Storage |
MicroSD/SDHC/SDXC up to 512 GB |
| Smart events |
Line crossing, intrusion, region entrance/exiting, audio exception |
| Nutrition |
12V DC, PoE+ (max. 13.5 W) |
| Operating temperature |
-30°C to 50°C, ≤95% RH (non-condensing) |
| Housing |
PC (polycarbonate) |
| Protection class |
IP66, with overvoltage/peak protection |
| Dimensions |
311.5 × 223.5 × 156 mm |
| Weight |
approx. 1.37 kg |
| DORI (tele) |
Detect 156.5 m / Observe 62.1 m / Recognize 31.3 m / Identify 15.7 m |
| EAN |
6942160466514 |
