Description

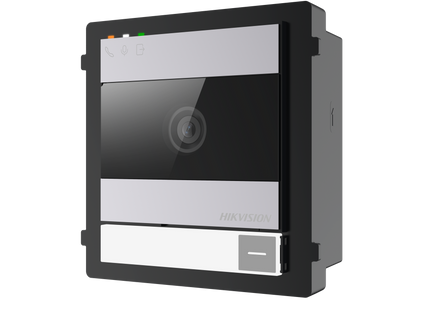

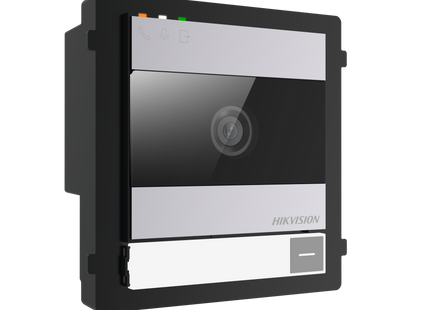

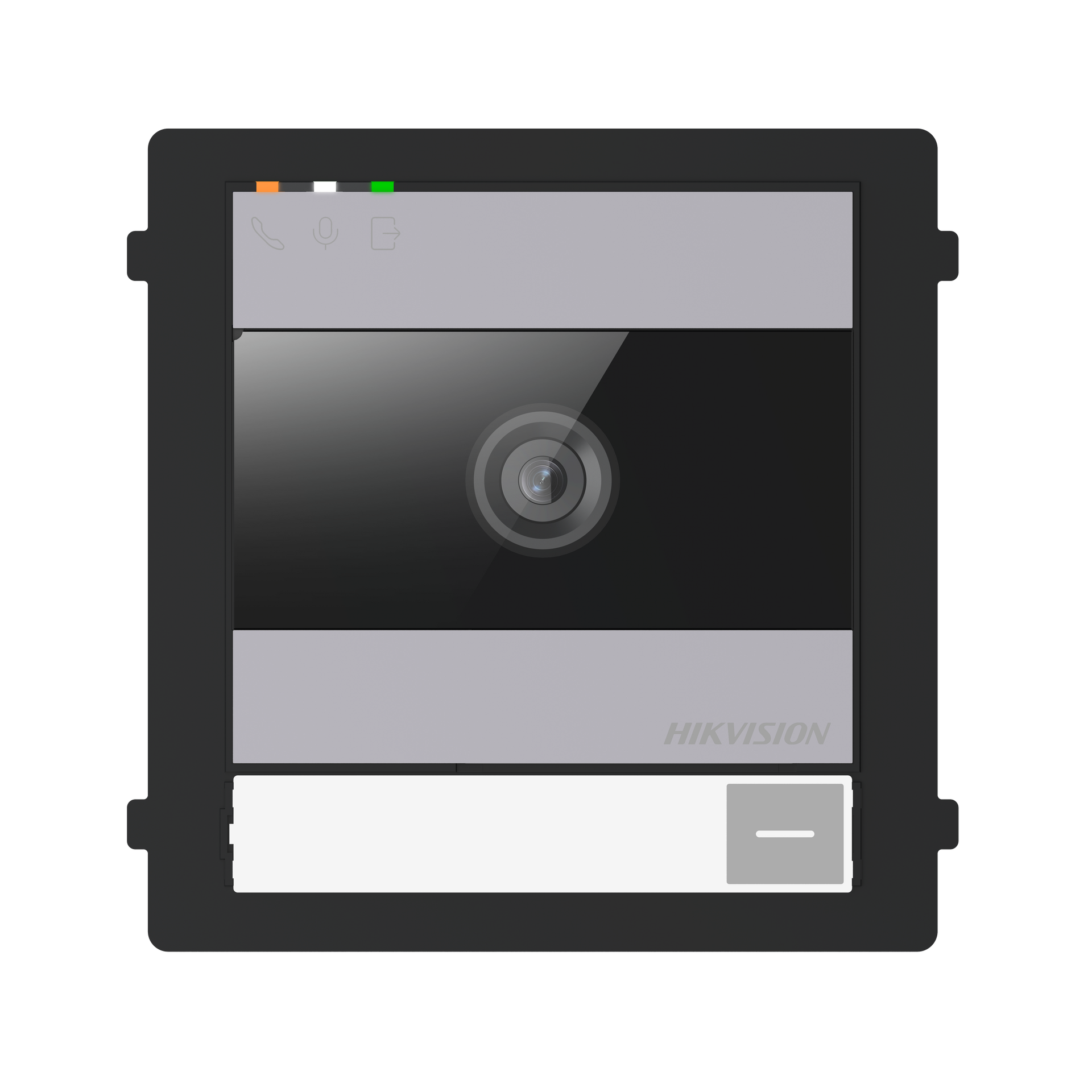

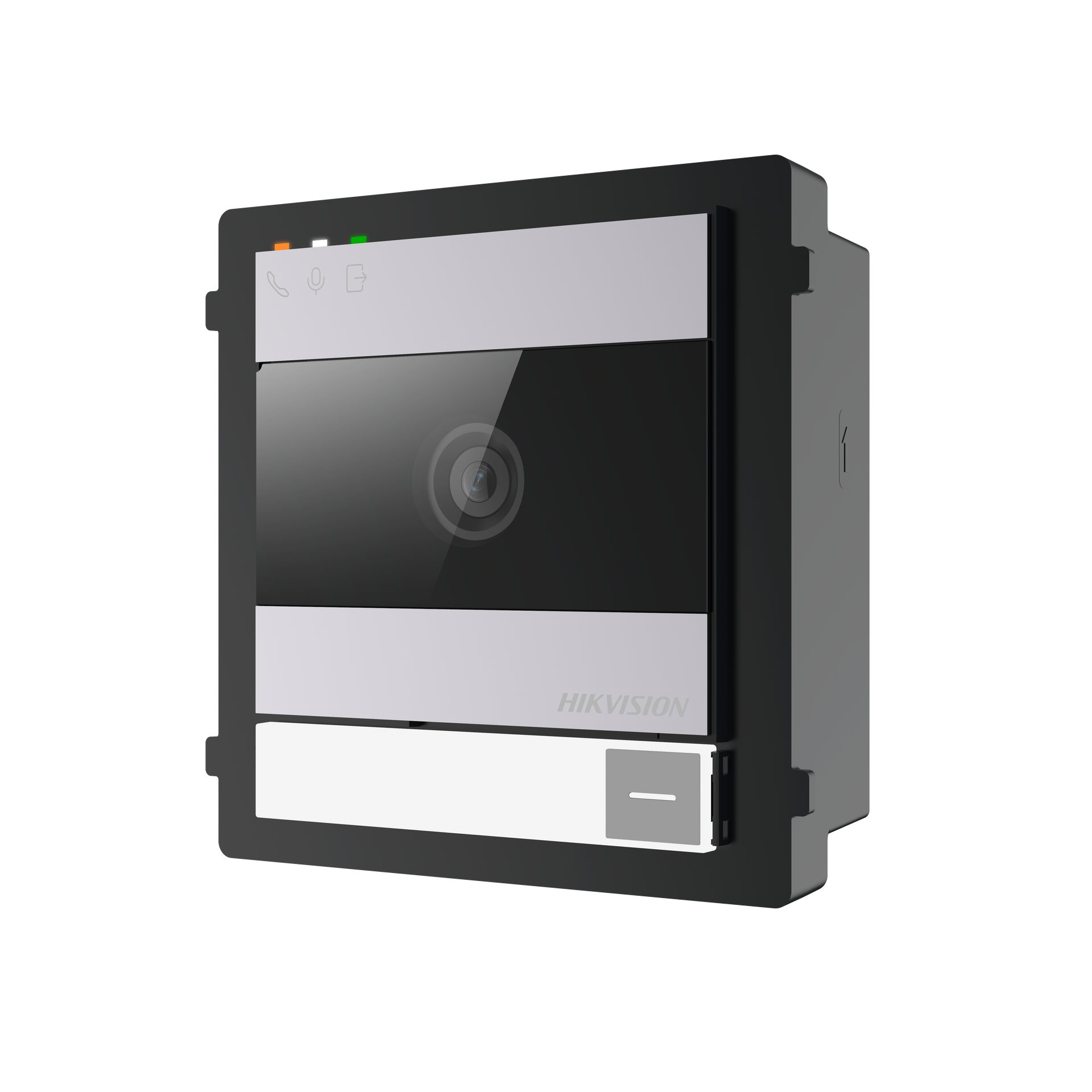

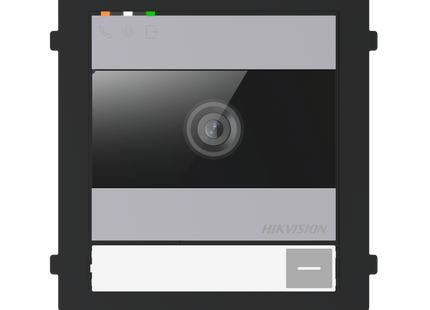

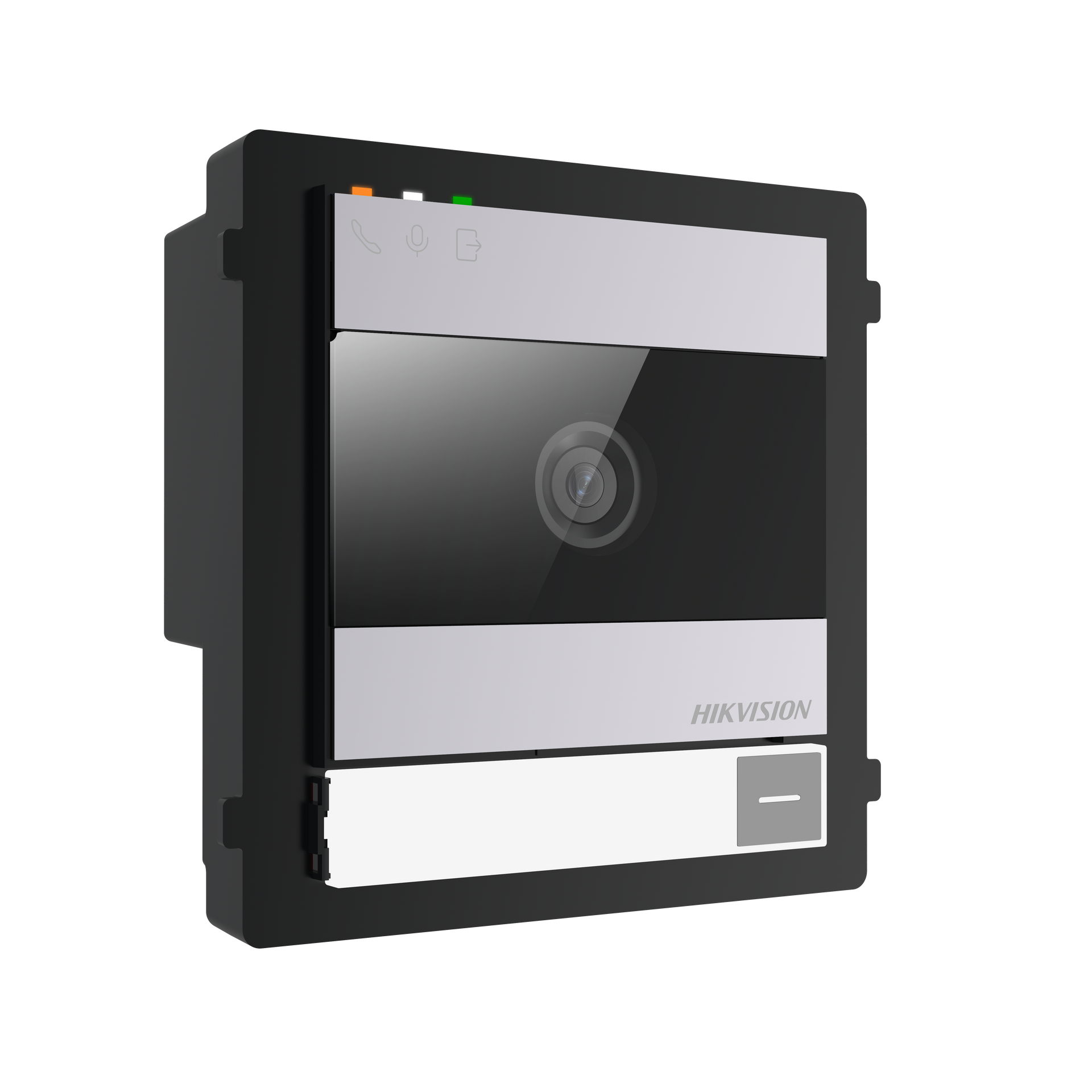

The Hikvision DS-KD8005-IME1 is the main module of the modular KD8 IP video intercom series. Thanks to the integrated 5 megapixel camera, high-quality audio and robust aluminum housing, this outdoor station offers a professional solution for access control in homes, apartments and business premises.
The module has a large viewing range 134° horizontally and 82° vertical, so visitors are always clearly visible. The built-in microphone and speaker are provided noise reduction and echo cancellation for clear communication.
The DS-KD8005-IME1 is fully modular and can be expanded with various Hikvision KD8 modules, such as a keypad, card reader, information display or nameplate module. This makes the intercom easy to adapt to the needs of each installation. The main module supports 0, 1 or 2 call buttons, allowing both single-family homes and smaller multi-family homes to be built.
Installation is easy thanks Power over Ethernet (PoE), so that both power and network run via one UTP cable. The outpost is also resistant to severe weather conditions thanks to the IP65-classification and vandalism resistant according to IK08. The intercom is easy to configure and manage remotely via the web interface.
Main features
- 5 MP camera (3200 × 1800) for razor-sharp images
- Modular KD8 system, can be expanded with various Hikvision modules
- Flexible configuration with 0, 1 or 2 call buttons
- Built-in microphone and speaker with noise and echo cancellation
- Wide field of view of 134° horizontally
- Support for H.264, H.265 and MJPEG video compression
- Power supply via standard PoE (IEEE 802.3af) or 12 VDC
- Control of two electric door locks
- IP65 weatherproof and IK08 vandalism resistant
- Suitable for surface and recessed mounting
- Easy management via the integrated web interface
Technical specifications
- Camera: 5MP
- Resolution: 3200 × 1800
- Viewing angle: 134° (H) / 82° (V)
- Audio: Full duplex with noise reduction and echo cancellation
- Network: RJ45 10/100 Mbps
- Power supply: PoE (IEEE 802.3af) or 12 VDC
- Protection class: IP65 / IK08
- Operating temperature: -40°C to +60°C
- Maximum power consumption: ≤ 5 W
- Installation: Surface-mounted or flush-mounted
- Material: High-quality aluminum
