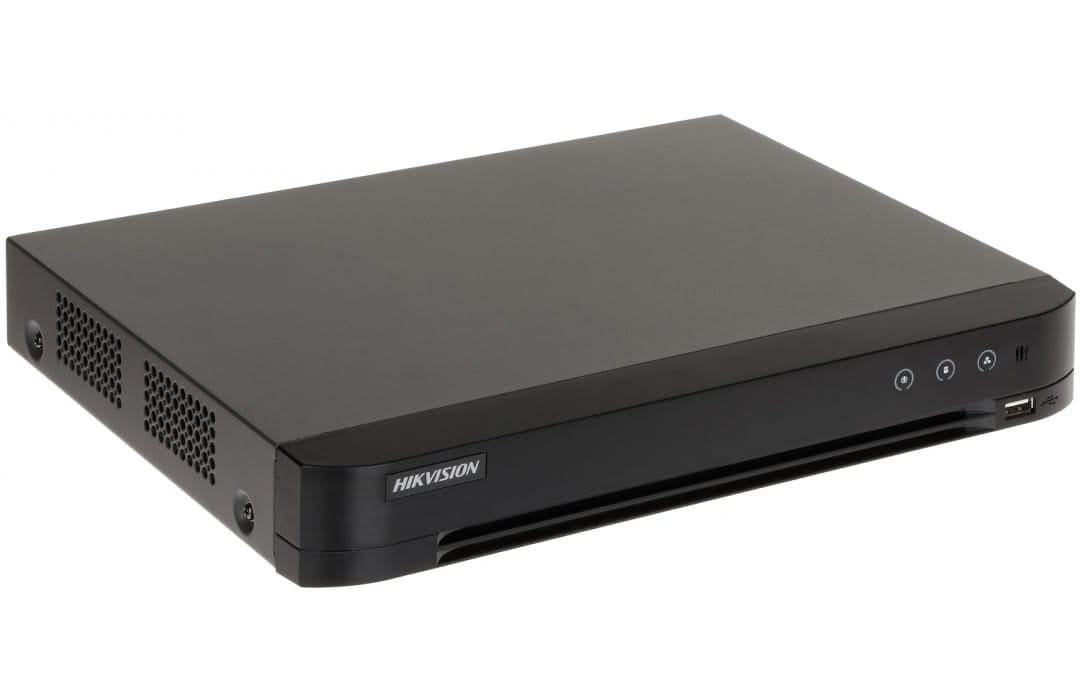

Hikvision iDS-7208HUHI-M2/P(C), 8x PoC, Without Storage, 8 channels CVI/TVI/AHD, Analog and IP

Description

iDS-7208HUHI-M2/P(C)/4A+8/4ALM, 8x PoC, Without Storage, 8 channels CVI/TVI/AHD, Analog and IP

Turbo HD 4.0 recorders have the HD-TVI technology developed by Hikvision. This technology makes it possible to apply high-resolution cameras to COAX cabling. The advantage of HD-TVI technology is that it is easy to apply, also to the infrastructure of existing analog camera systems. Thanks to this technology, there is little delay in the image and distances of up to 700 meters can be achieved.

The Mid Level Turbo HD 4.0 recorder is the Full-HD HD-TVI recorder from Hikvision. The recorder supports H.265 and is suitable for resolutions up to 5MP/25fps real-time. The recorder is also suitable for HD-CVI, AHD and IP cameras.

In addition, this recorder has: PoC (Power Over Coax). With this technology, the camera is powered over the coaxial cable to distances of up to 300 meters. This means that a separate power supply and additional cabling are not required.

Specifications:

Channels 8
HDCVI 4MP, 1080p, 720p
Explanation HDCVI 4MP, 1080p, 720p @25fps
HDTVI 8MP, 5MP, 4MP, 3MP, 1080p, 720p
Explanation HDTVI 8MP@15fps, 5MP, 4MP, 3MP, 1080p, 720p@25fps / 720p@50fps
AHD 5MP, 4MP, 1080p, 720p
Explanation AHD 5MP, 4MP, 1080p, 720p @25fps
CVBS PAL/NTSC
IP camera 8+8 channels, each channel up to 8MP
Configuration example IP Camera 8x HD-CVI/TVI/AHD/Analog + 8x IPC or total 16x IPC, Incoming bandwidth: Max 64Mbps
PoC 8x PoC.AT maximum
Interface 1x HDMI, 1x VGA
Resolution HDMI 1 3840x2160
Resolution VGA 1 1920x1080
Video output mode HDMI 1 and VGA 1 are the same
CVBS output 1-Channel, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576
Simultaneous playback 8 channels
Compression H.265, H.264
Resolution 8MP, 5MP, 4MP, 3MP, 1080p, 720p
Incoming bandwidth 64Mbps
Synchronized playback 8 Channels
Recording speed Main stream 8 MP@8fps, 5 MP@12fps, 4 MP@15fps, 3 MP@18fps 1080p, 720p, WD1, 4CIF, VGA, CIF@25fps
Ethernet 1x 10/100Mbps
PoE ports None
Including HDD No
Number of ports 2x
Max number of TB per port 10TB
USB 2x
Alert 8
Alarm off 4
Audio in 4x
Audio off 1x
Two-way speaking 1 channel, RCA (uses audio input)
RS-232 No
RS-485 1x
Nutrition 48 VDC, 1 A
Consumption <15W (without HDD)
Work environment -10 to +50°
Dimension 380×320×48mm

Hikvision iDS-7208HUHI-M2/P(C), 8x PoC, Without Storage, 8 channels CVI/TVI/AHD, Analog and IP

Product form
En stock — envío rápido desde nuestro almacén
🚚
Entrega estimada: calculando...
Plazo de entrega previsto: 1 a 3 días laborables.
📍
Recogida en Rojales
Disponible en 1 día laborable con cita previa.
Haz tu pedido hoy y lo prepararemos lo antes posible.

€568,00  €499,00 Incl. VAT

    • Free shipping from €99
    • Free returns within 30 days
