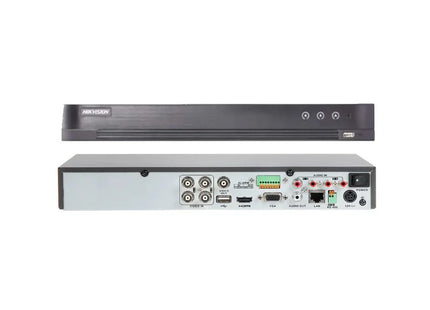

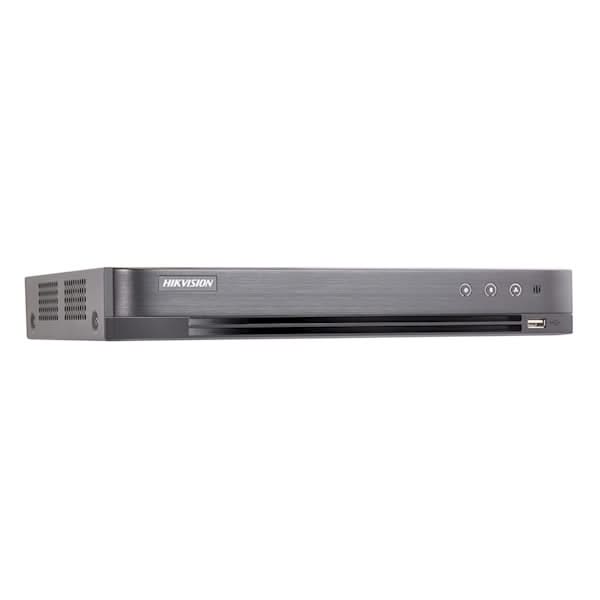

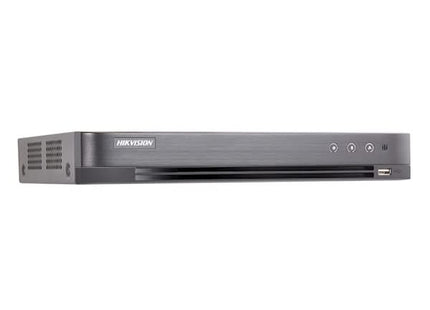

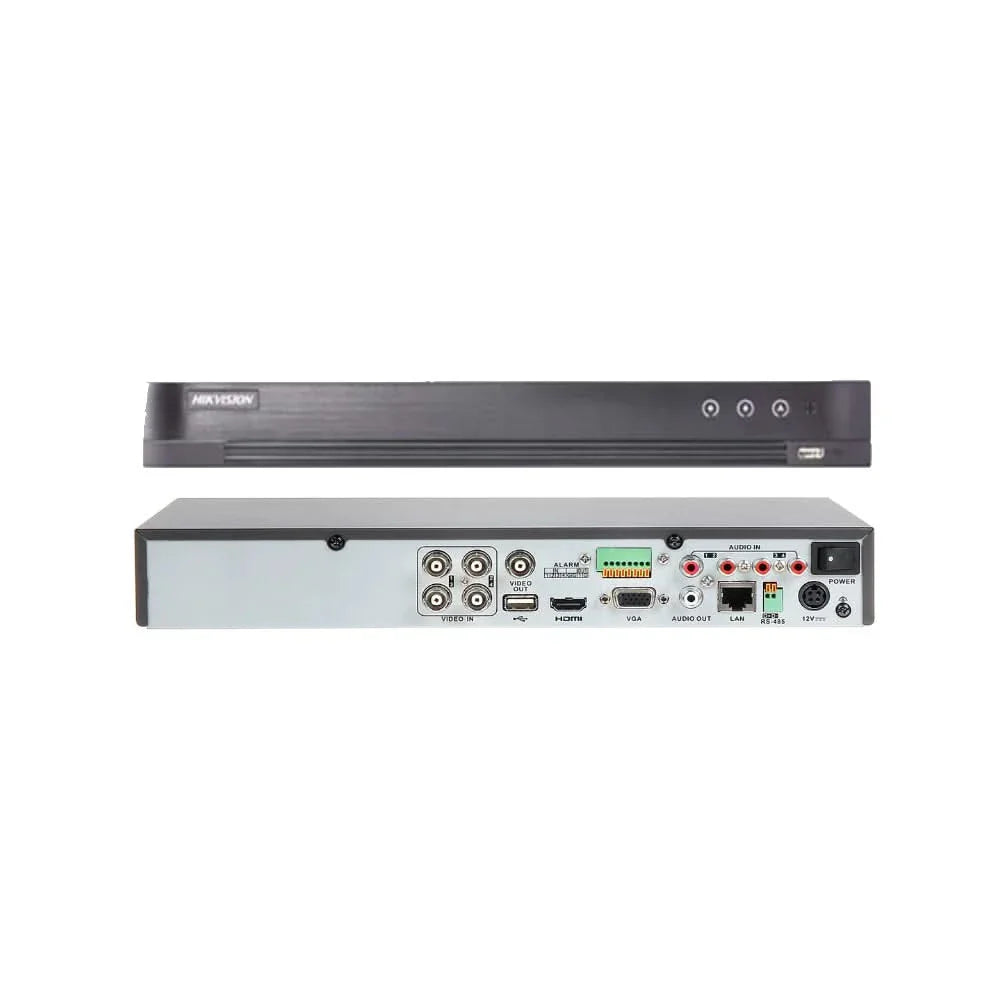

IDS-7204HUHI-M1/P, Turbo HD-TVI 4-ch, AcuSense, PoC, DVR.

Description

DS-7204HUHI-M1/P is a 4-channel PoC DVR that supports analog HD cameras up to 8 MP resolution with impressive 4K ultra high definition recording. The DVR supports plug-and-play with self-adaptive HD-TVI, AHD, CVI and CVBS formats, allowing for easy installation. It uses the latest AcuSense technology, PoC compatible, H.265+ video encoding and has 1 SATA interface for installing up to 1x hard drive.

Acusense technology uses deep learning algorithms to filter human and vehicle targets from other moving objects and reduce the number of false alarms generated.

Power over coax (PoC) means that power for the camera is supplied directly from the PoC DVR via a coaxial cable (RG59). This simplifies installation time and eliminates the need for additional power supplies and separate or duplicate cables, saving time and costs.

This model includes Hikvision smart analytics including face detection, intrusion, line crossing, region entry/exit, unattended baggage and object removal, depending on compatible cameras.

Connecting to the internet is a breeze with the Hik-Connect cloud P2P setup, just download the app and scan the recorder's QR code. Free iPhone, iPad, Android, PC and MAC remote viewing software is also supported.

Specifications:

Record

  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding resolution - Mainstream:
    - 8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
    1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

    *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.



    - Substream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  • Video bit rate32 Kbps to 10 Mbps
  • Dual StreamSupport
  • Stream typeVideo, video and audio
  • Audio compressionG.711u
  • Audio bit rate64Kbps

Video and Audio

  • IP Video Input - 2-ch (to 6-ch)
  • Resolution up to 8 MP
    Enhanced IP mode on: 4-ch (up to 8-ch), up to 4 Mbps each
  • Resolution up to 8 MP - Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input - 4-channel;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • CVBS Input - PAL/NTSC
  • CVBS Output - 1-channel, BNC (1.0 Vp-p, 75 Ω),



  • resolution: PAL: 704 × 576, NTSC: 704 × 480

  • Synchronous Playback - 4-ch
  • HDTVI Input - 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
  • AHD Input - 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • HDCVI Input - 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • Audio Output - 1 channel, RCA (linear, 1 KΩ)
  • Audio Input - 1-channel, RCA (2.0 Vp-p, 1 KΩ)
  • Two-way audio - 1 channel, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Network

  • Network protocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote Connection32
  • Network interface1, RJ45 10M/100M self-adaptive Ethernet interface

Help interface

  • SATA2 SATA interface
  • CapacityUp to 10 TB capacity for each drive
  • Serial InterfaceRS-485 (half-duplex)
  • USB Interface - Front panel: 1 × USB 2.0 - Rear panel: 1 × USB 2.0
  • Alarm In/Out - N/A

General

  • Power supply - 12 VDC
  • Consumption - ≤ 10W
  • Working temperature - -10 °C to +55 °C (+14 °F to +131 °F)
  • Working humidity - 10% to 90%
  • Chassis - 1U(380mm)
  • Dimension (W × D × H) - 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 in)
  • ≤ 1.16 kg (2.6 lb)



IDS-7204HUHI-M1/P, Turbo HD-TVI 4-ch, AcuSense, PoC, DVR.

Product form

In stock, delivery time 1 to 3 working days

€229,00 Incl. VAT

      • Free shipping from €99
      • Free returns within 30 days

      Description

      DS-7204HUHI-M1/P is a 4-channel PoC DVR that supports analog HD cameras up to 8 MP resolution with impressive 4K ultra high definition recording. The DVR supports plug-and-play with self-adaptive HD-TVI, AHD, CVI and CVBS formats, allowing for easy installation. It uses the latest AcuSense technology, PoC compatible, H.265+ video encoding and has 1 SATA interface for installing up to 1x hard drive.

      Acusense technology uses deep learning algorithms to filter human and vehicle targets from other moving objects and reduce the number of false alarms generated.

      Power over coax (PoC) means that power for the camera is supplied directly from the PoC DVR via a coaxial cable (RG59). This simplifies installation time and eliminates the need for additional power supplies and separate or duplicate cables, saving time and costs.

      This model includes Hikvision smart analytics including face detection, intrusion, line crossing, region entry/exit, unattended baggage and object removal, depending on compatible cameras.

      Connecting to the internet is a breeze with the Hik-Connect cloud P2P setup, just download the app and scan the recorder's QR code. Free iPhone, iPad, Android, PC and MAC remote viewing software is also supported.

      Specifications:

      Record

      • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
      • Encoding resolution - Mainstream:
        - 8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
        1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

        *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.



        - Substream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)

      • Video bit rate32 Kbps to 10 Mbps
      • Dual StreamSupport
      • Stream typeVideo, video and audio
      • Audio compressionG.711u
      • Audio bit rate64Kbps

      Video and Audio

      • IP Video Input - 2-ch (to 6-ch)
      • Resolution up to 8 MP
        Enhanced IP mode on: 4-ch (up to 8-ch), up to 4 Mbps each
      • Resolution up to 8 MP - Support H.265+/H.265/H.264+/H.264 IP cameras
      • Analog Video Input - 4-channel;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
      • CVBS Input - PAL/NTSC
      • CVBS Output - 1-channel, BNC (1.0 Vp-p, 75 Ω),



      • resolution: PAL: 704 × 576, NTSC: 704 × 480

      • Synchronous Playback - 4-ch
      • HDTVI Input - 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
      • AHD Input - 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
      • HDCVI Input - 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
      • Audio Output - 1 channel, RCA (linear, 1 KΩ)
      • Audio Input - 1-channel, RCA (2.0 Vp-p, 1 KΩ)
      • Two-way audio - 1 channel, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

      Network

      • Network protocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
      • Remote Connection32
      • Network interface1, RJ45 10M/100M self-adaptive Ethernet interface

      Help interface

      • SATA2 SATA interface
      • CapacityUp to 10 TB capacity for each drive
      • Serial InterfaceRS-485 (half-duplex)
      • USB Interface - Front panel: 1 × USB 2.0 - Rear panel: 1 × USB 2.0
      • Alarm In/Out - N/A

      General

      • Power supply - 12 VDC
      • Consumption - ≤ 10W
      • Working temperature - -10 °C to +55 °C (+14 °F to +131 °F)
      • Working humidity - 10% to 90%
      • Chassis - 1U(380mm)
      • Dimension (W × D × H) - 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 in)
      • ≤ 1.16 kg (2.6 lb)
