Description

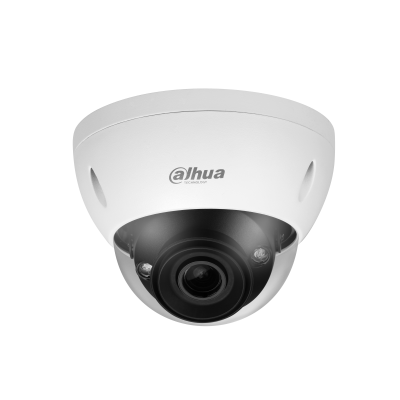

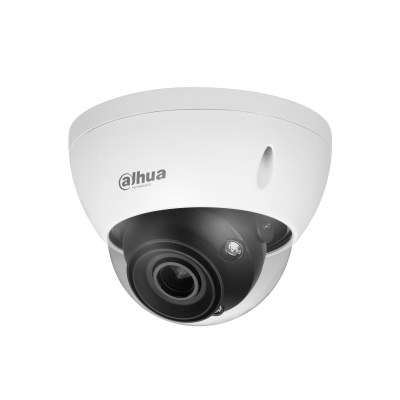

IPC-HDBW5442E-ZE-S3 ePoE 4MP D/N Starlight+ IR, Dome 2.7-12mm lens varifocal Wizmind
The WizMind S Series is a professional-grade line of intelligent cameras that utilize AI-powered image enhancement technologies (AI ISP) and feature Deeplight, an upgrade to the existing Starlight technology that now utilizes deep learning algorithms for image optimization, enabling the cameras to deliver outstanding images in low-light situations. This allows the cameras to easily adapt to different scenes and perform optimally in various challenging environments.
The cameras in this series offer significantly improved audio and video analytics. They record visual characteristics in video metadata, distinguish various sounds through advanced sound detection, feature facial detection, enhanced perimeter security with 99% accuracy, improved people counting, and more smart features.
Dahua has significantly improved its Starlight and Starlight+ technologies and takes them to the next level with Deeplight. Cameras with Deeplight use deep learning algorithms to process images, effectively reducing noise and producing better images with higher clarity, even in low-light or nighttime environments.
When both a Dahua switch and a power adapter (DC or AC) are connected simultaneously, the IPC can automatically switch to the other power source if one fails. This ensures continuous camera operation and prevents video loss.
Specifications:
| Number of image sensors:
|
1 |
| Optical/Thermal:
|
Optical |
| Image sensor:
|
1/1.8 |
| Resolution:
|
2688 x 1520 |
| Number of pixels:
|
4MP |
| Minimum illumination strength (in color):
|
0.0007 Lux |
| Minimum illumination strength (LED on (black/white)): |
0 Lux |
| Relief:
|
IR |
| LED distance:
|
up to 50m |
| LED On/Off (Day/Night):
|
Auto/Manual |
| Number of LED(s):
|
2 LED |
| Shutter speed:
|
1/3s ~ 1/100000 s |
| Noise suppression:
|
3DNR |
| Lens type:
|
Varifocal |
| Iris:
|
Varifocal |
| Focal length:
|
2.7-12mm |
| Maximum opening:
|
F1.8 |
| Horizontal opening angle:
|
112° - 47 |
| Vertical opening angle:
|
58° - 27 |
| Focus control:
|
Auto/Manual |
| Stream option:
|
4 streams |
| Video compression:
|
H.264, H.264+, H.264 B, H.264 H, H.265, H.265+, MJPEG |
| Frames per second (Main stream):
|
25fps @2688 x 1520 /1fps--50/60fps @1920 x 1080 |
| 2nd stream:
|
25fps D1: 720 x 576 |
| 3rd stream:
|
25fps @1920 x 1080 |
| 4th stream:
|
25fps @1280 x 720 |
| Bitrate:
|
H.264: 32 Kbps–8192 Kbps, H.265: 19 Kbps–8192 Kbps |
| Day/Night:
|
Car (filter), Color, Black/White |
| Light compensation:
|
BLC, HLC, WDR(140dB) |
| Motion detection:
|
On/Off |
|
|
| Smart Features:
|
AI Face Capture/Attributes |
|
AI People Counting |
|
AI Perimeter Protection |
|
AI Motion detection |
|
AI Video Metadata |
|
Face Detection |
|
Object Abbonded/Missing |
| Smart IR:
|
Yes |
| Smart LED:
|
Auto/Manual |
| Electronic Image Stabilization (EIS):
|
No |
| Defog:
|
Yes |
| Privacy masking:
|
Yes |
| Built-in microphone:
|
Yes |
| Audio input:
|
Yes |
| Audio Output:
|
Yes |
| Audio Compression:
|
G.711 A, G.711 MU, G.723, G.726, PCM |
| Speaker:
|
No |
| Ethernet:
|
RJ-45 (10/100 Base-T) |
| SD card storage option:
|
Yes |
| Maximum SD Card Storage Capacity:
|
512 GB |
| RS-485:
|
No |
| Alarm:
|
Yes |
| Number of channels in:
|
1x 5mA 3V-5VDC |
| Number of channels out:
|
1x 300mA 12VDC |
| including food:
|
No |
| Power supply:
|
12V DC, PoE (Type IEEE 802.3af), E-PoE |
| Max Consumption:
|
8.8W |
| Working temperature:
|
-30°C ~ +60°C |
| Water resistance:
|
IP67 |
| Vandal-proof:
|
IK10 |
| Material
|
Metal |
| Diameter
|
Ø122mm |
| Height
|
94mm |
| Weight:
|
0.713 kg |
