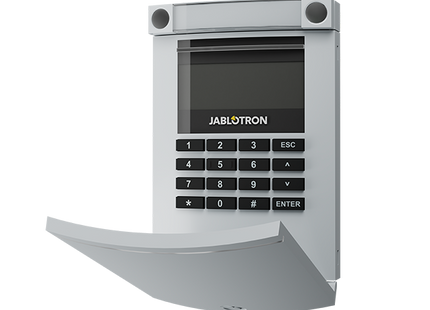

JA-154E-GR, Wireless keypad, LCD and RFID Gray

Description

JA-154E-GR, Wireless keypad, LCD and RFID Gray

The JA-154E is a two-way wireless access module with an LCD screen, a keypad and an RFID reader for controlling the security system. Contains one control segment and can be equipped with up to 20 JA-192E control segments if required.

The keyboard is compatible with the following keypads JA-102K, JA-103K and JA-107K.
Incl. LCD screen/keys/card reader
Tiltable lid at the front
Works via code and/or RFID (125KHz)
Communication wirelessly via 868.1 MHz
Power supply via 4x AA 1.5V battery (excl.)
For indoor use only
Dimensions: 102 x 145 x 33mm/350gr

Specifications:

Current	4 x alkaline batteries AA (LR6) 1.5 V Please note: batteries are not included
Typical lifespan	1 - 2 years according to the settings
Power supply from external power supply	0.5 watts
Communication tape	868.1 MHz, JABLOTRON protocol
Communication range	200 m (open ground)
RFID frequency	125kHz
Dimensions	102x145x33mm
Weight	350 grams
Classification	Grade II
According to	EN 50131-1, EN 50131-3, EN 50131-5-3
Operational environment	EN 50131-1 II. General indoors
Operating temperature range	-10 to +40 °C
Also complies	ETSI EN 300 330, ETSI EN 300 220, EN 50130-4, EN 55022, EN 60950-1
Can be operated according to	ERC REC 70-03

JA-154E-GR, Wireless keypad, LCD and RFID Gray

Product form

In stock, delivery time 1 to 3 working days

€308,55 Incl. VAT

Free shipping from €99

Free returns within 30 days

Description

JA-154E-GR, Wireless keypad, LCD and RFID Gray

The JA-154E is a two-way wireless access module with an LCD screen, a keypad and an RFID reader for controlling the security system. Contains one control segment and can be equipped with up to 20 JA-192E control segments if required.

The keyboard is compatible with the following keypads JA-102K, JA-103K and JA-107K.
Incl. LCD screen/keys/card reader
Tiltable lid at the front
Works via code and/or RFID (125KHz)
Communication wirelessly via 868.1 MHz
Power supply via 4x AA 1.5V battery (excl.)
For indoor use only
Dimensions: 102 x 145 x 33mm/350gr

Specifications:

Current	4 x alkaline batteries AA (LR6) 1.5 V Please note: batteries are not included
Typical lifespan	1 - 2 years according to the settings
Power supply from external power supply	0.5 watts
Communication tape	868.1 MHz, JABLOTRON protocol
Communication range	200 m (open ground)
RFID frequency	125kHz
Dimensions	102x145x33mm
Weight	350 grams
Classification	Grade II
According to	EN 50131-1, EN 50131-3, EN 50131-5-3
Operational environment	EN 50131-1 II. General indoors
Operating temperature range	-10 to +40 °C
Also complies	ETSI EN 300 330, ETSI EN 300 220, EN 50130-4, EN 55022, EN 60950-1
Can be operated according to	ERC REC 70-03
