Description

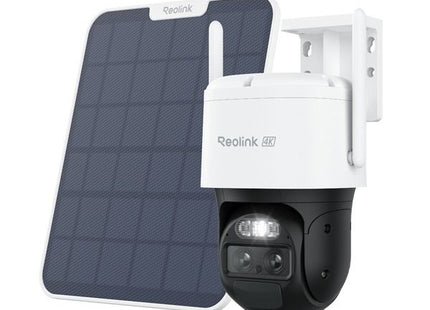

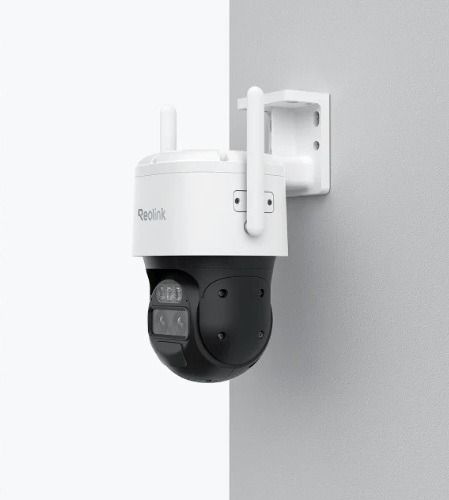

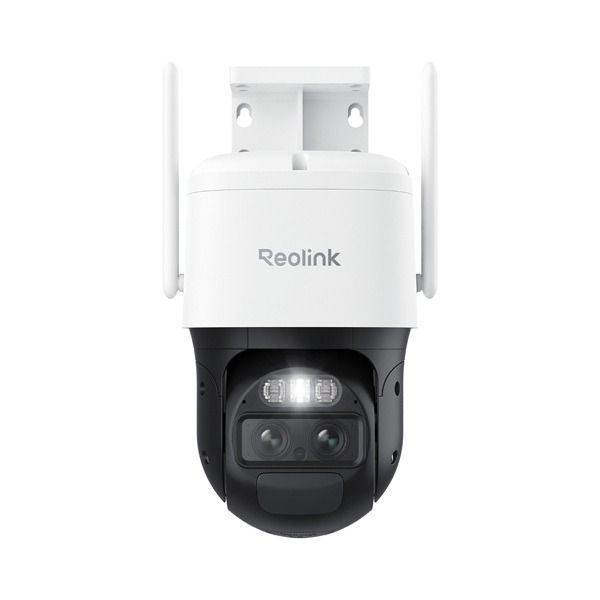

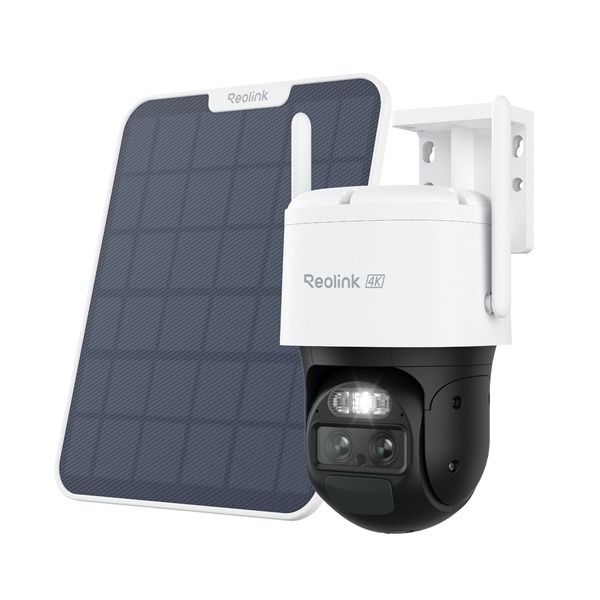

This 4K/8MP dual-lens dual-view battery camera gives remote access to your business with 4G LTE. With a long-lasting battery and (optional) a Reolink Solar Panel 2 you can continuously observe your company or business park. The G770 combines wide-angle and telephoto lens and displays both images on one screen. The close-up view uses 6x hybrid zoom and PT capabilities to track and focus on targets.
- 8MP Ultra HD resolution for detailed images and videos;
- 360° coverage. Camera can rotate 355° and tilt 90°, for a large range;
- You can turn on the spotlight at night for bright color images or use the IR LEDs for black/white monitoring up to 30 meters in the dark (spotlight can be turned off manually);
- Intelligent person, vehicle and animal detection with accurate notifications;
- PIR detection, define and adjust motion zones as desired;
- The G770 has a long-lasting, rechargeable battery but also works with a Reolink solar panel (not included), for continuous power;
- Support for local storage on a micro SD card up to 128GB. Or use Reolink Cloud or an FTP server;
- Works on the 4G LTE mobile network, with nano SIM card (not included). Can be used at any location, perfect for areas without WiFi coverage or electricity;
- Ideal solution for video surveillance, without hassle and without wiring;
- Two-way audio, built-in microphone and speaker;
- Dual lens, Dual view, 6x hybrid zoom;
- Can be used in all weather conditions, camera is IP65 weatherproof;
- With time lapse video function;
- Thanks to compatibility with SmartHome devices such as Google Assistant, you have direct access to the camera's live view via a simple voice command;
- Total control, anywhere, anytime. With real-time notifications, viewing images where and when you want, customizable detection zones and smart playback in the free app (iOS and Android) on smartphone or tablet.
Specifications:
• Model: Reolink G770-W
• Video & Audio
• Sensor: 1/3" CMOS Sensor
• Video Resolution: Up to 3840 × 2160 (8MP) @ 15 frames/sec
• Lens: f=2.8mm @ F1.6, f=8mm @ F1.6
• Video format: H.264, H.265
• Viewing angle:
• f=2.8mm: Horizontal 108°, Vertical 57.3°
• f=8mm: Horizontal 38°, Vertical 21.2°
• Day & night: IR-cut filter with auto-switching
• IR night vision: Up to 30 meters (2 pcs / 850 lm)
• Color night vision: Spotlight 1 pc / 6500K / 450 lm
• Zoom: 6× hybrid zoom
• Audio: 2-way audio
• Software features
• Frame rate:
• Mainstream: 10 fps – 15 fps
• Substream: 10 fps – 15 fps
• Code rate:
• Mainstream: 1024 Kbps – 4096 Kbps
• Substream: 64 Kbps – 512 Kbps
• OS: PC (Windows, Mac OS); Smartphone (iOS, Android)
• Smart alarm: PIR detection, person detection, vehicle detection, animal detection
• Protocols: SSL, TCP/IP, UDP, UPnP, SMTP, NTP, P2P
• Max users: Up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
• Works with: Google Assistant, Reolink Cloud
• Recording: Motion-activated recording
• 3G & 4G bandwidth
• Frequency bands (Europe):
• LTE FDD: B1 / B3 / B7 / B8 / B20 / B28A
• WCDMA: B1 / B8
• Transmission data:
• LTE FDD: Max 10 Mbps (DL), Max 5 Mbps (UL)
• LTE TDD: Max 8.96 Mbps (DL), Max 3.1 Mbps (UL)
• HSPA+: Max 42 Mbps (DL), Max 5.76 Mbps (UL)
• UMTS: Max 384 Kbps (DL), Max 384 Kbps (UL)
• Current
• Battery: 7.2V 5100mAh rechargeable battery (lifetime dependent on settings, usage & temperature), 36.72 Wh
• Solar panel: Reolink Solar Panel 2 USB-C (optional)
• DC power: 5V / 2A
• Interface
• Power: USB Type-C port
• System: Reset button
• Local storage: Micro SD card slot (max. 128GB)
• Network: Nano SIM card slot
• Audio: Built-in microphone & speaker
• Pan & Tilt
• Pan & Tilt: Pan 355°, Tilt 0° ~ 90° (speed adjustable)
• Preset: 32
• Auto Tracking: Supported
• Work environment
• Operating temperature: -10° ~ 55° C
• Operating humidity: 20% ~ 85%
• Weatherproof: IP65
• Size & weight
• Dimension: 228.2 × 147 × 129 mm
• Weight: 1.4 kg
