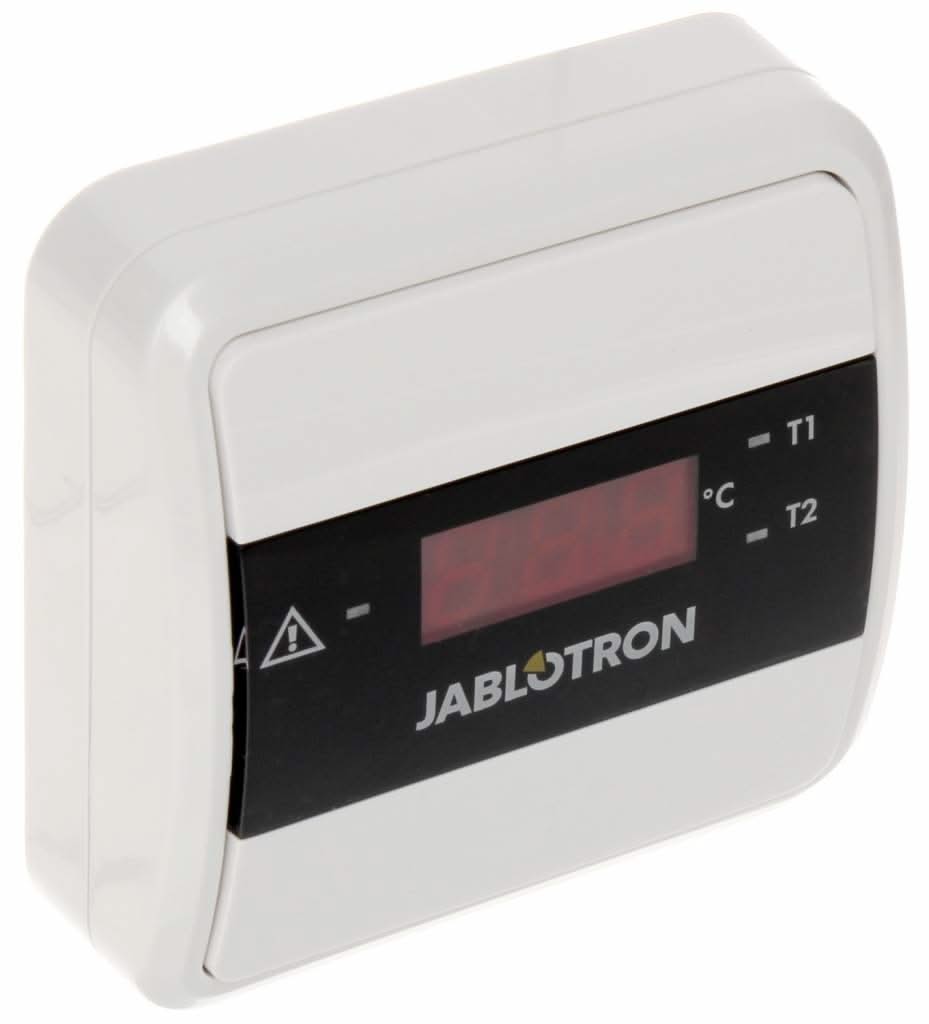

TM-201A, Multifunctional electronic thermometer

Description

TM-201A, Multifunctional electronic thermometer

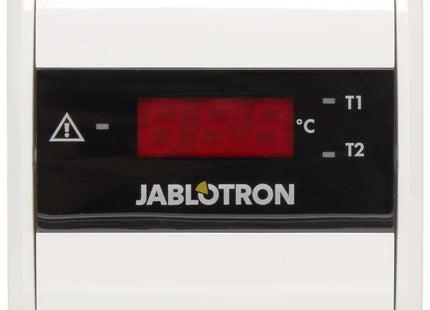

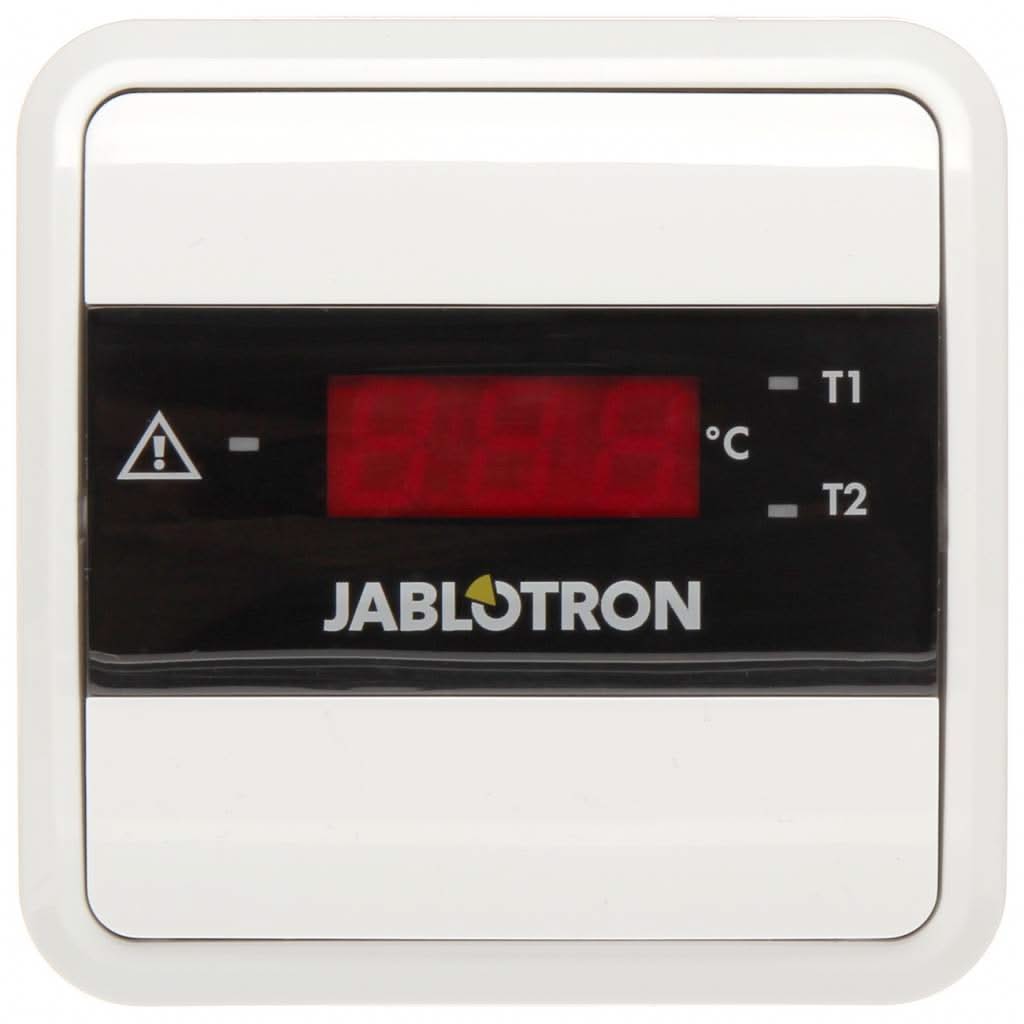

The multifunctional electronic thermometer TM-201A can be used in all installations where one or two temperature values need to be measured with a subsequent action, closing or opening a relay. The thermometer is equipped with a warning indication (optical and acoustic).

It can typically be used as a safety thermometer, bistable or differential thermostat. The package does not include the sensors and the power source.

Temperature sensors are used for the TM-201A, the CP-201T (two pieces in the package) or CP-201T-NW (one piece in the package). The DE06-12 power supply can be used as a 12V mains supply.

? Supply voltage: 11 to 17V DC
? Standby consumption / maximum consumption: 20mA / 50 mA
? Measuring range: -40 °C to 125 °C
? Temperature sensor type: NTC 10kΩ, B25 / 100 = 3455 K
? Operating temperature range: -10 °C to +40 °C

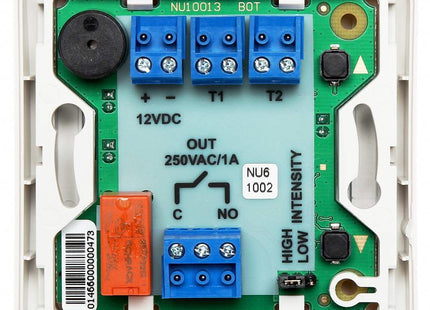

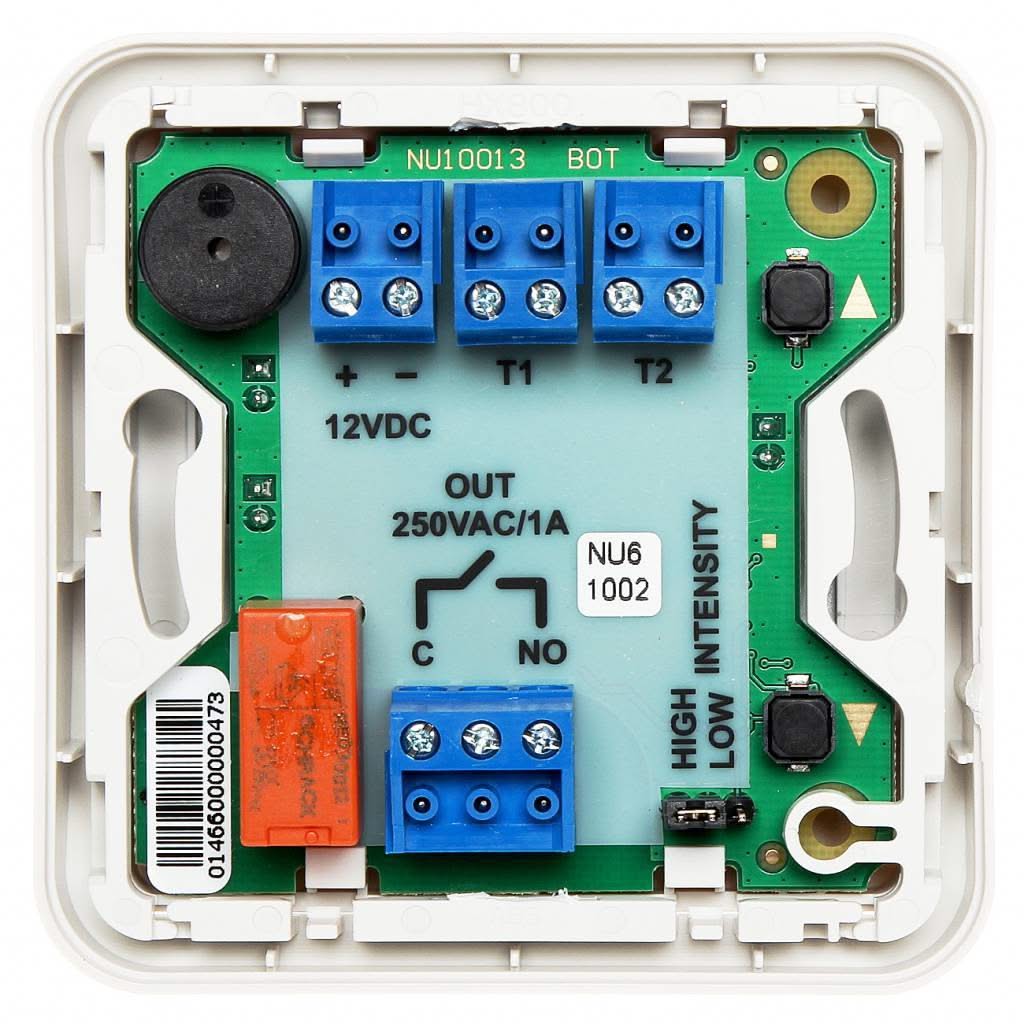

? Output OUT: switching contact, max. 1A at 250V, resistive load 6A, protective class II

TM-201A, Multifunctional electronic thermometer

Product form

In stock, delivery time 1 to 3 working days

€117,60 Incl. VAT

      • Free shipping from €99
      • Free returns within 30 days

      Associated products

      Description

      TM-201A, Multifunctional electronic thermometer

      The multifunctional electronic thermometer TM-201A can be used in all installations where one or two temperature values need to be measured with a subsequent action, closing or opening a relay. The thermometer is equipped with a warning indication (optical and acoustic).

      It can typically be used as a safety thermometer, bistable or differential thermostat. The package does not include the sensors and the power source.

      Temperature sensors are used for the TM-201A, the CP-201T (two pieces in the package) or CP-201T-NW (one piece in the package). The DE06-12 power supply can be used as a 12V mains supply.

      ? Supply voltage: 11 to 17V DC
      ? Standby consumption / maximum consumption: 20mA / 50 mA
      ? Measuring range: -40 °C to 125 °C
      ? Temperature sensor type: NTC 10kΩ, B25 / 100 = 3455 K
      ? Operating temperature range: -10 °C to +40 °C
      ? Output OUT: switching contact, max. 1A at 250V, resistive load 6A, protective class II
