Description
The Superior NVR H2DAI2GAC is an AI-powered 8-channel NVR with support for 2 hot-swappable hard drives (HDDs not included), 2 Gigabit Ethernet interfaces, and a 4K HDMI output. The NVR integrates Ajax cameras and third-party IP cameras into a single ecosystem.
The Superior NVR H2D series features built-in AI, enabling intelligent analysis in legacy installations without replacing the cameras. This allows for the detection of people, pets, vehicles, and line crossings with the same accuracy as Ajax cameras. Notifications can also be sent upon detection, sirens can be activated, or scenarios can be executed.

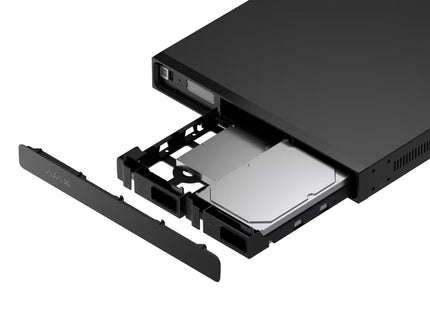

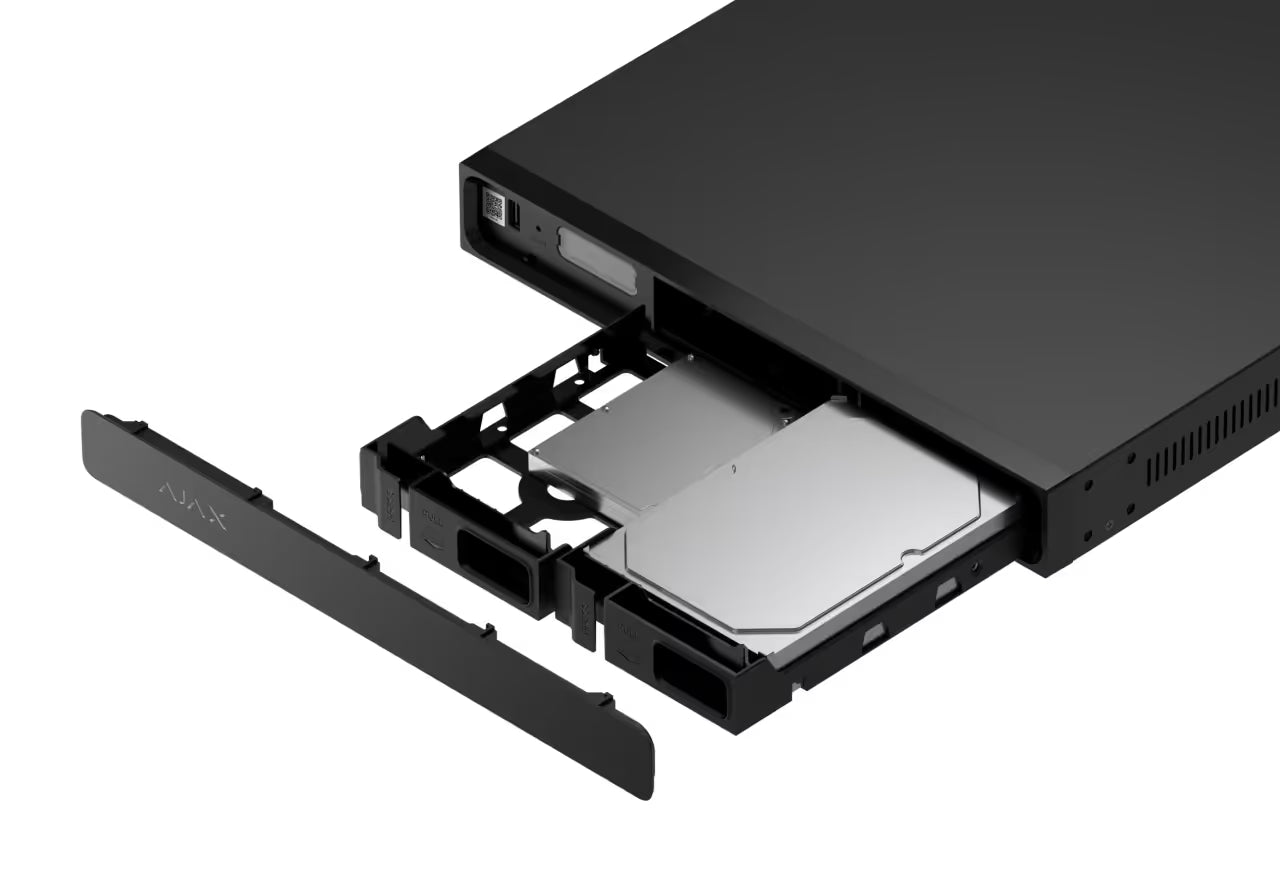

The NVR H2D can accommodate two hot-swappable hard drives, each with a maximum capacity of 24 TB, which is ideal for continuous archiving and reliable backup. The hard drives can be configured in two different recording modes:
- Split Mode – Recordings are stored alternately on one of the hard drives. If one drive fails, only the footage from the remaining drive will remain available. (RAID0)
- Redundancy Mode – Recordings are duplicated and stored on both drives to ensure a complete backup (RAID 1 – mirroring)
In addition to management via the app, the NVR features a 4K HDMI output, allowing users to view live and archived footage directly on a connected monitor.
The Superior NVR H2D operates on 110–240 VAC mains power.
Includes:
- Superior NVR H2DAI2GAC, 8 channels with power and network cables, including brackets for rack mounting
- excludes hard drives and HDMI cable
Since this model does not have built-in PoE ports, it is ideal for installations that already use an external PoE switch or existing network infrastructure.
- Support for 8 IP cameras
- 4K HDMI output for live viewing
- Recording at up to 12MP resolution
- H.265 / H.264 compression
- 2× HDD slots (hot-swappable, up to 16TB per drive)
- No PoE – flexible deployment with existing networks
- Compatible with ONVIF & RTSP cameras
- Motion detection for efficient storage
Specifications:
Video & Performance
- Number of channels: 8 IP cameras
- Maximum resolution: up to 4K / ±12 MP recording
- HDMI output: 1× 4K (3840 × 2160)
- Video compression: H.265 / H.264
- Bandwidth: up to 160 Mbps (in/out)
Network & Compatibility
- Ethernet: 1× RJ-45 Gigabit (up to 1 Gbps)
- Protocol support: ONVIF (S/T/M), RTSP
- Compatibility: Ajax cameras + third-party IP cameras
Connections
- USB: 3× USB 2.0
- Video output: 1× HDMI
- PoE: None (use an external PoE switch)
Storage
- HDD slots: 2× SATA (3.5")
- Maximum capacity: up to 16 TB per drive
- Hot-swap support: yes
- Storage modes: redundancy (mirror) or capacity (split)
Features
- Continuous recording (24/7)
- Pixel-based motion detection
- Live view & playback via HDMI and Ajax apps
- Remote management via Ajax apps
- Video alarm verification
Physical & Power

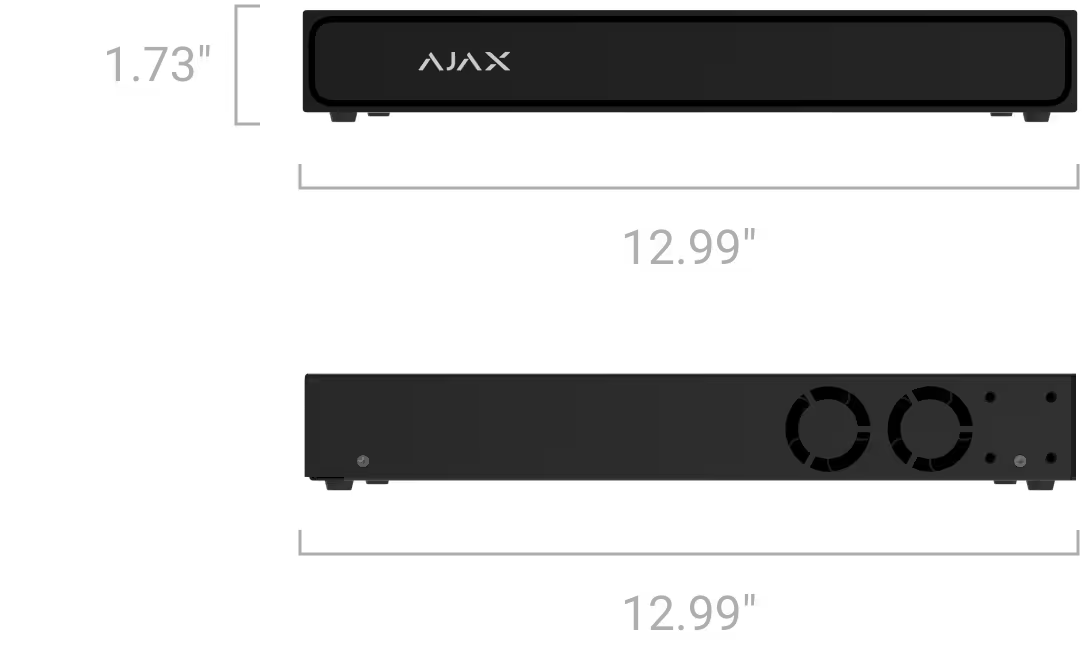

- Dimensions: approx. 330 × 330 × 44 mm
- Weight: ± 3.3 kg
- Power supply: 100–240 V AC, 50/60 Hz
- Max. power consumption: ± 85W
- Operating temperature: 0°C to +50°C
- Enclosure: IP20 (indoor use)
