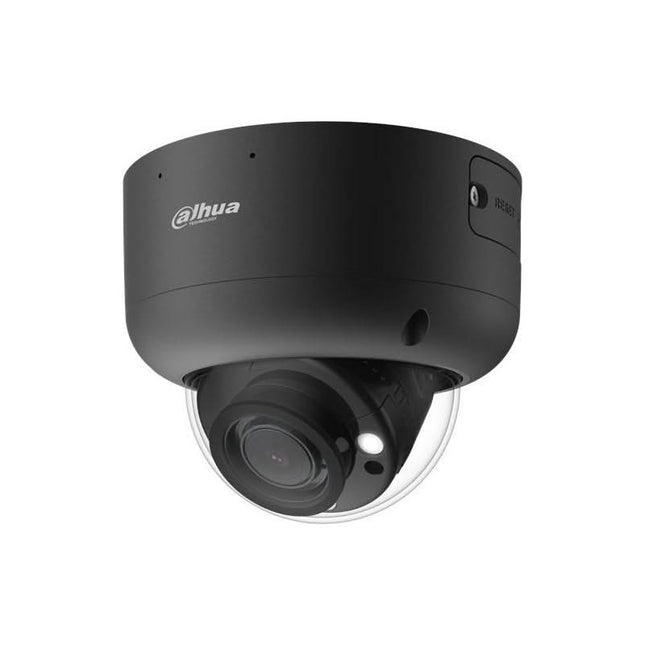

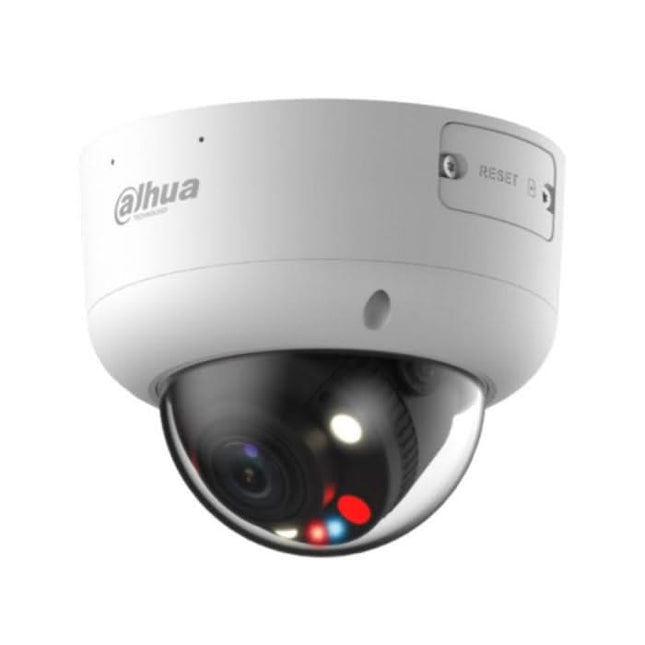

IPC-HDBW3849R1-ZAS-PV 8MP TiOC2.0 Vari-focal Dome WizSense Camera 2.7-13.5mm
Please note that this camera is not a controllable PTZ camera.
TiOC 2.0 stands for the next generation 3 in 1 camera that works 24/7 full-color monitoring, active deterrence and AI into one smart and innovative solution. TiOC can accurately identify potential risks and effectively warn intruders, effectively protecting the safety of assets.
TiOC provides precise alarm function by accurately aiming at people and vehicles while filtering out non-target objects (such as animals, leaves and car headlights). In addition to keeping the false alarm rate below 2%, the powerful AI algorithms also deliver faster, more accurate motion detection with greater range.
TiOC stands for Three-in-One Camera. In addition to full-color and WizSense technology, the camera also has a speaker and red/blue flashing light that can be linked to different detection forms. These functionalities are all freely adjustable.
The camera has an intelligent algorithm for recognizing people and vehicles. This intelligence can be applied in the IVS rules (AI perimeter) and motion detection SMD.
The alarm input on a TiOC 2.0 camera can be used to activate and deactivate the alarm function. For example, the alarm function of the TiOC camera can be switched on simultaneously with the alarm system. NB! For this purpose, a separate cable must be installed between the camera and the alarm system.
The smart Dual Illuminator mode is a function that can switch from IR additional lighting to white LED additional lighting when a person enters the detection area. This can be useful as ambient light, but also has a deterrent effect. From the TiOC -S4 models, the detection area for Smart Illumination is the same as Smart Motion Detection.
Thanks to a new design with 2 microphones, this camera offers excellent sound quality when using the microphone function. In ideal conditions, the microphone also has a range of up to 7 meters.
Specifications:
Number of image sensors:
1
Optical/Thermal:
Optical
Image sensor:
1/2.8
Resolution:
3840x2160
Number of pixels:
8MP
Minimum lighting strength (in color):
0.004 lux
Minimum lighting strength (LED on (black/white)):
0 Lux
Lighting:
Strobe Lighting, White LED
LED distance:
up to 50m
LED On/Off (Day/Night):
Auto/Manual
Number of LED(s):
4 LED
Shutter speed:
1/3s ~ 1/100,000s
Noise reduction:
3DNR
Lens type:
Motor zoom lens
Iris:
Fixed Iris
Focal Length:
2.7mm ~ 13.5mm
Maximum opening:
F1.0
Horizontal opening angle:
108° ~ 34°
Vertical opening angle:
56° ~ 19°
Focus Control:
None
Stream option:
3 streams
Video compression:
H.264, H.264+, H.264 B, H.264 H, H.265, H.265+, MJPEG
Images per second (Main stream):
25fps @3840×2160
2nd stream:
25fps @704×576
3rd stream:
25fps @1920 x 1080
Bit rate:
H.264: 3kbps–20480kbps, H.265: 3kbps–20480kbps
Day/Night:
Auto (filter), Color, Black/White
Light compensation:
BLC, HLC, WDR(120dB)
Motion detection:
On/Off
Smart Features:
AI Perimeter Protection
AI Motion detection
Smart IR:
Yes
SmartLED:
Auto/Manual
Defog:
Yes
Privacy masking:
Yes
Built-in microphone:
Yes
Audio input:
Yes
Audio Output:
Yes
Audio Compression:
AAC, G.711 A, G.711 MU, G.722.1, G.723, G.726, G.729, PCM
Speaker:
Yes for Audio alarm
Ethernet:
RJ-45 (10/100 Base-T)
SD card storage option:
Yes
Maximum Storage Capacity SD Card:
256GB
Alarm:
Yes
Number of channels in:
1x Max 5mA 3V–5V DC
Number of channels out:
1x Max 300mA 12V DC
including power supply:
No
Power supply:
12V DC, PoE (Type IEEE 802.3af)
Max Consumption:
Min consumption: 4.4W (12 V DC); 5.8W (PoE)Max consumption (7.9 W (12 V DC); 10.1 W (PoE)
Working temperature:
-40°C ~ +60°C
Waterproofness:
IP67
Vandal resistant:
IK10
Material
Metal
Diameter
Ø126mm
Height
105mm
Weight:
0.73 Kg
