Description

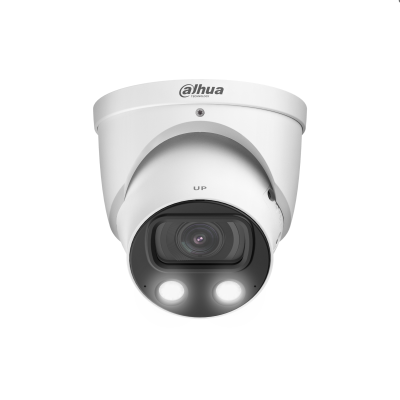

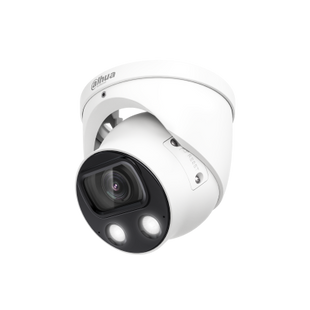

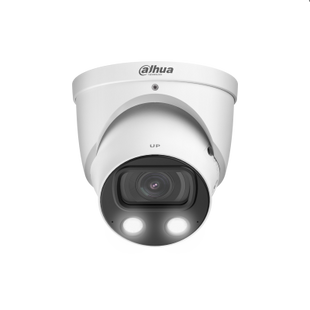

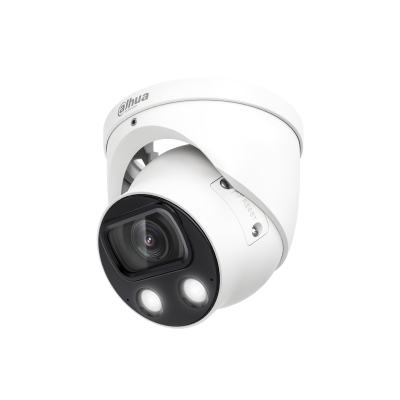

HDW5849H-ASE-LED-S2, 8MP 2.8mm 4K, PoE, Full-color, Eyeball Fixed lens, WizMind
The WizMind series is a professional line of intelligent cameras. The light-sensitive high-resolution sensor, auto-iris lens (only with vari-focal) and the combination with image optimization functions such as WDR and 3DNR ensure an excellent image in the most diverse conditions. WizMind cameras have Starlight and Smart IR technology for dark and low-light situations. The cameras are equipped with artificial intelligence. This technology uses the camera to distinguish between objects and people. In addition, the camera is able to register external characteristics of objects and process them in metadata.
WizMind cameras have functions such as face detection, perimeter detection and people count based on AI deep-learning algorithms. The AI technology ensures accurate detection and reduces the number of false alarms. WizMind cameras have Starlight and Smart IR technology. The cameras are supplied in a dust and water resistant IP67 housing.
- 8MP resolution at 25fps
- 24/7 color image with white LED additional lighting
- WizMind technology for intelligent shape detection.
- H.265 compression for optimal bandwidth and storage use.
- IP67 Dust and water resistant
- Built-in microphone
- SD card slot for Micro-SD up to 512GB
- Suitable for PoE, ePoE and 12VDC
Specifications:
| Number of image sensors: |
1 |
| Optical/Thermal: |
Optical |
| Image sensor: |
1/1.2 CMOS |
| Resolution: |
3840x2160 |
| Number of pixels: |
8MP |
| Minimum lighting strength (in color): |
0.0005 |
| Minimum lighting strength (LED on (black/white)): |
0 lux |
| Lighting: |
White LED |
| LED distance: |
up to 50m |
| Number of LED(s): |
2 LED |
| Shutter speed: |
1/3s ~ 1/100,000s |
| Noise reduction: |
3DNR |
| Lens type: |
Fixed lens |
| Iris: |
Fixed Iris |
| Focal Length: |
2.8mm |
| Maximum opening: |
F1.0 |
| Horizontal opening angle: |
102° |
| Vertical opening angle: |
53° |
| Stream option: |
3 streams |
| Video compression: |
H.264, H.264+, H.265, H.265+ |
| Images per second (Main stream): |
25fps @3840×2160 |
| 2nd stream: |
25fps D1: 720x576 |
| 3rd stream: |
25fps @1920 x 1080 |
| Bit rate: |
H.264: 3kbps–16384kbps, H.265: 3kbps–16384kbps |
| Day/Night: |
Color, Black/White |
| Light compensation: |
BLC, HLC, WDR(140dB) |
| Motion detection: |
On/Off |
| |
|
| Smart Features: |
AI Face Capture/Attributes |
| |
AI People Counting |
| |
AI Perimeter Protection |
| |
AI Video Metadata |
| |
Heat map |
| |
Object Abbonded/Missing |
| Defog: |
Yes |
| Privacy masking: |
Yes |
| Built-in microphone: |
Yes |
| Audio input: |
No |
| Audio Output: |
No |
| Ethernet: |
RJ-45 (10/100 Base-T) |
| SD card storage option: |
Yes |
| Maximum Storage Capacity SD Card: |
512GB |
| Alarm: |
Yes |
| Number of channels in: |
1x max, 5mA 3V–5 VDC |
| Number of channels out: |
1x max, 300mA 12 VDC |
| Power supply: |
12V DC, PoE (Type IEEE 802.3af), E-PoE |
| Max Consumption: |
Basic: 3.6 W (12 VDC); 5W (PoE) max. (H.265 + 3 streams + intelligence + LED): 7.9 W (12 VDC); 9.6W (PoE) |
| Working temperature: |
-40°C ~ +60°C |
| Waterproofness: |
IP67 |
| Material |
Metal |
| Diameter |
Ø122mm |
| Height |
119.7mm |
| Weight: |
0.74 Kg |
