Description

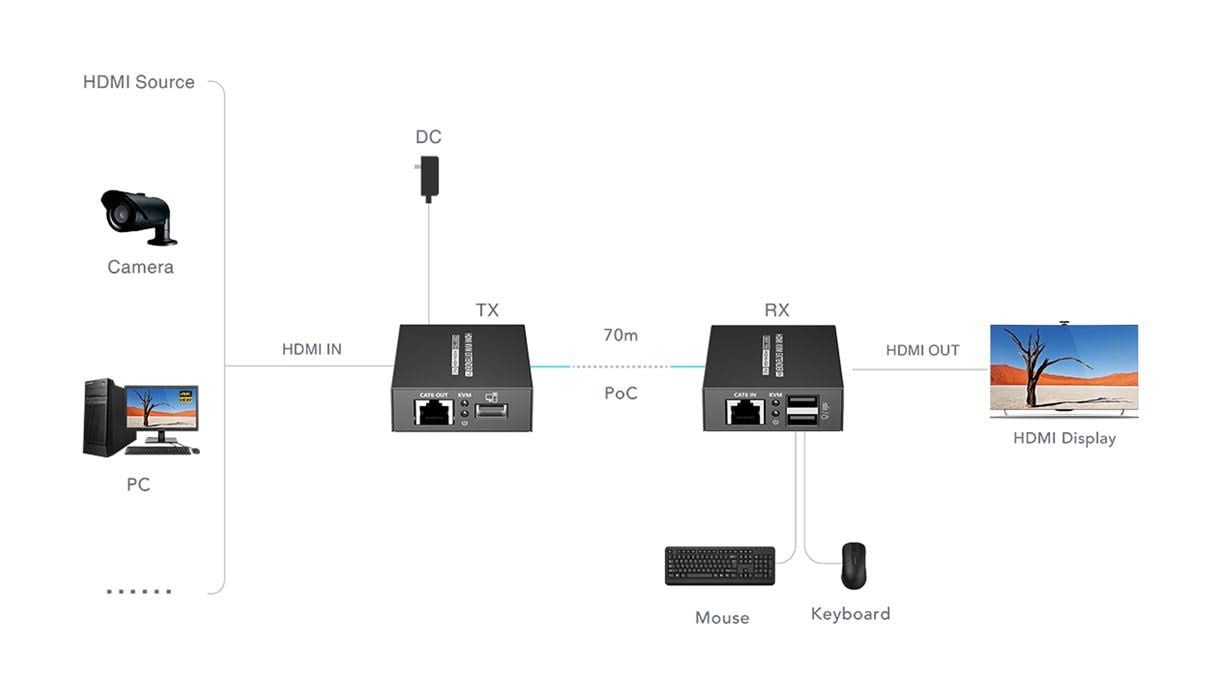

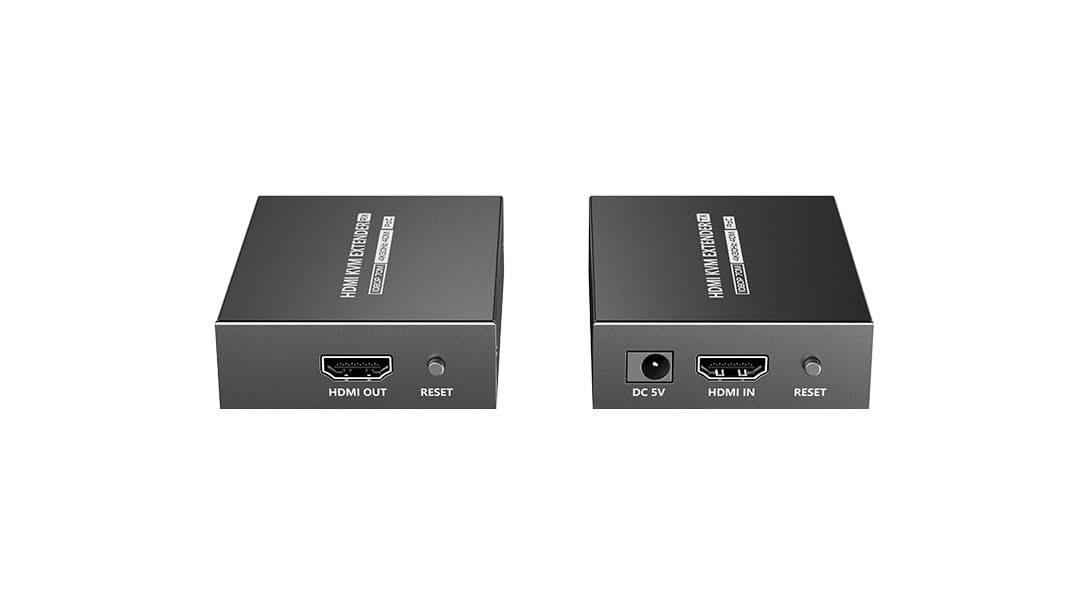

This HDMI™ KVM Extender contains a transmitter and a receiver, and makes it possible to transmit the HDMI™ signal up to 50 meters, a mouse and a keyboard with a resolution of 4K / 8 megapixels using a Cat6 network cable. It uses a point-to-point connection configuration and supports KVM. It is perfect for outdoor advertising, monitor systems, home entertainment, conferences, etc. It is also ideal for connecting an (optional) wireless mouse and thus viewing the images on your TV remotely.
Specifications:
- Voltage/Current - DC5V/2A (only TX power needed)
- Power consumption - TX+RX＜10W
- HDMI compliance - HDMI port 1.4
- HDCP Compliance - HDCP Version 1.4
- HDMI resolution -
800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz, 3840x2160@24/25/30Hz
- Audio formats - DTS, DTS-HD, PCM, LPCM
- HDR - Supported
- Input and output TMDS signal - 0.7~1.2 Vp-p (TMDS)
- Input and output DDC signal - 5Vp-p(TTL)
- Cat6/6A/7 -
- 1080p@60Hz transmission 70 meters
- 4K@30Hz transmission 40 meters
- ESD
- Implementation of the standard: IEC61000-4-2
- 1a Contact discharge level 2 (±4KV)
- 1b Air discharge level 3 (±8KV)
- Working temperature - -20~60℃
- Storage temperature - -30~70℃
- Humidity (no condensation)- 0～90%RH
- Dimension - 75.0 (L) x 60.0 (W) x 20 (H) mm
- Weight - TX: 123g RX: 123g
- Color - Black
