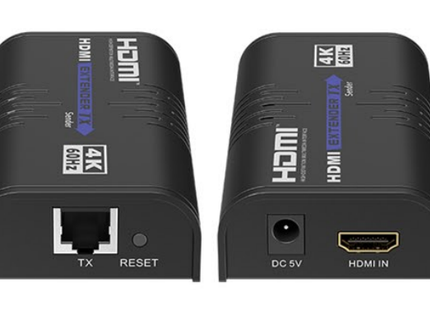

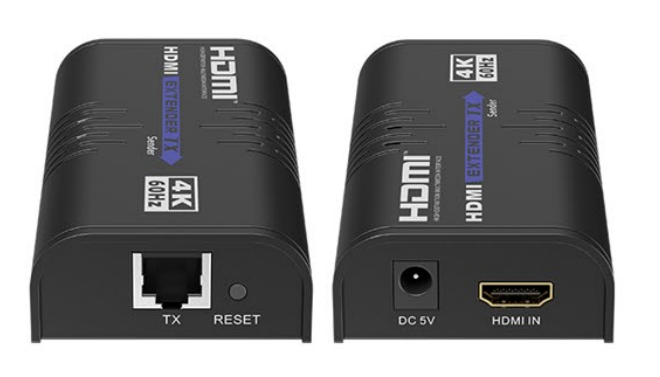

4K 60Hz HDMI Extender set up to 120m

Description

4K 60Hz HDMI Extender set up to 120m

This is an HDMI™ point-to-point extender kit, which can achieve zero-latency transmission. The 4K@60Hz HDMI™ signal can be extended by 120 meters via a CAT6/6A/7 network cable. This kit is a reliable, ultra-high-definition video transmission solution, widely used in security surveillance, home theater, broadcasting, training and other fields.

Specifications:

  • Maximum transfer speed - 1 Gbps
  • Maximum transmission bandwidth - 600 MHz
  • EDID passthrough - Yes
  • Compatibility - HDMI 2.0 (Deep Color, 4K, HDR, YUV4: 4:4 HDCP 2.2
  • Resolutions -
    480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160 at 24/25 Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1920x1200, 1360x768, 1366x768, 1600x900, 1024x768, 800x600
  • Transmission distance - CAT6/6A/7≤120m
  • Audio formats - LPCM/DTS 5.1/Dolby Digital 5.1CH
  • Power Supply - TX:DC5V/2A,RX:PoC (Powered by TX)
  • Power consumption - TX+RX<5W
  • Working temperature - -20℃~60℃
  • Storage temperature - -30℃~70℃
  • Humidity - 0~90%RH (no condensation)
  • Housing - Metal
  • Weight - TX:92g,RX:91g
  • Color - Black
  • Dimensions - 67.0(L)* 40.0(W)*23.0(H)mm
  • Protection -
    - ESD protection
    - 1a Contact discharge level 2 (±4KV)
    - 1b Air discharge level 3 (±8KV) Implementation of the standard: IEC61000-4-
    - Lightning protection, Overvoltage protection



4K 60Hz HDMI Extender set up to 120m

Product form

In stock, delivery time 1 to 3 working days

€119,00 Incl. VAT

    • Free shipping from €99
    • Free returns within 30 days

    Associated products

    Description

    4K 60Hz HDMI Extender set up to 120m

    This is an HDMI™ point-to-point extender kit, which can achieve zero-latency transmission. The 4K@60Hz HDMI™ signal can be extended by 120 meters via a CAT6/6A/7 network cable. This kit is a reliable, ultra-high-definition video transmission solution, widely used in security surveillance, home theater, broadcasting, training and other fields.

    Specifications:

    • Maximum transfer speed - 1 Gbps
    • Maximum transmission bandwidth - 600 MHz
    • EDID passthrough - Yes
    • Compatibility - HDMI 2.0 (Deep Color, 4K, HDR, YUV4: 4:4 HDCP 2.2
    • Resolutions -
      480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160 at 24/25 Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1920x1200, 1360x768, 1366x768, 1600x900, 1024x768, 800x600
    • Transmission distance - CAT6/6A/7≤120m
    • Audio formats - LPCM/DTS 5.1/Dolby Digital 5.1CH
    • Power Supply - TX:DC5V/2A,RX:PoC (Powered by TX)
    • Power consumption - TX+RX<5W
    • Working temperature - -20℃~60℃
    • Storage temperature - -30℃~70℃
    • Humidity - 0~90%RH (no condensation)
    • Housing - Metal
    • Weight - TX:92g,RX:91g
    • Color - Black
    • Dimensions - 67.0(L)* 40.0(W)*23.0(H)mm
    • Protection -
      - ESD protection
      - 1a Contact discharge level 2 (±4KV)
      - 1b Air discharge level 3 (±8KV) Implementation of the standard: IEC61000-4-
      - Lightning protection, Overvoltage protection
