Description
The Curtain Outdoor Jeweller wireless curtain detector with dual technology is suitable for indoors and outdoors. Thanks to the Dual-motion detection technology with two PIR sensors and a K-band microwave sensor, false alarms caused by thermal noise, animals or plants can be filtered out.
The detection range and animal friendliness can be configured via a slider on the detector body and the sensitivity can be set in Ajax apps to meet the specific needs of the location.
The motion detector has a range of 12 m and is animal-friendly up to 100 cm high.
In the box:
- Curtain Outdoor Jeweler

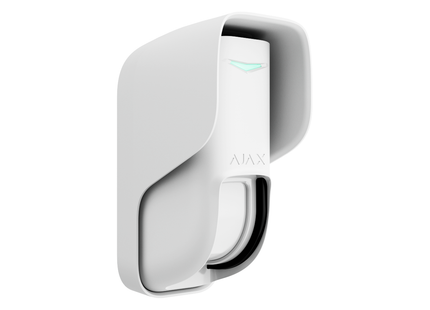

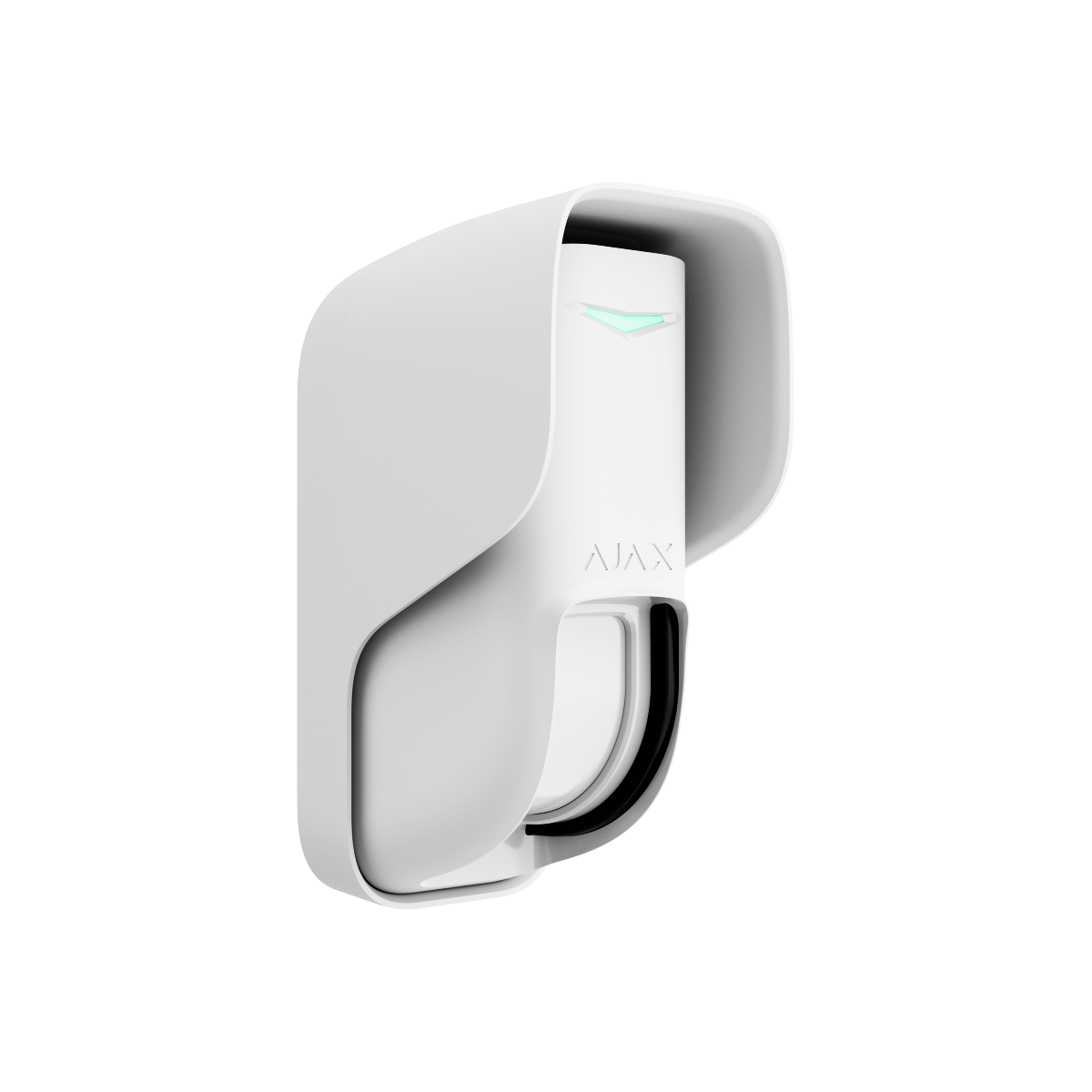

- Hood

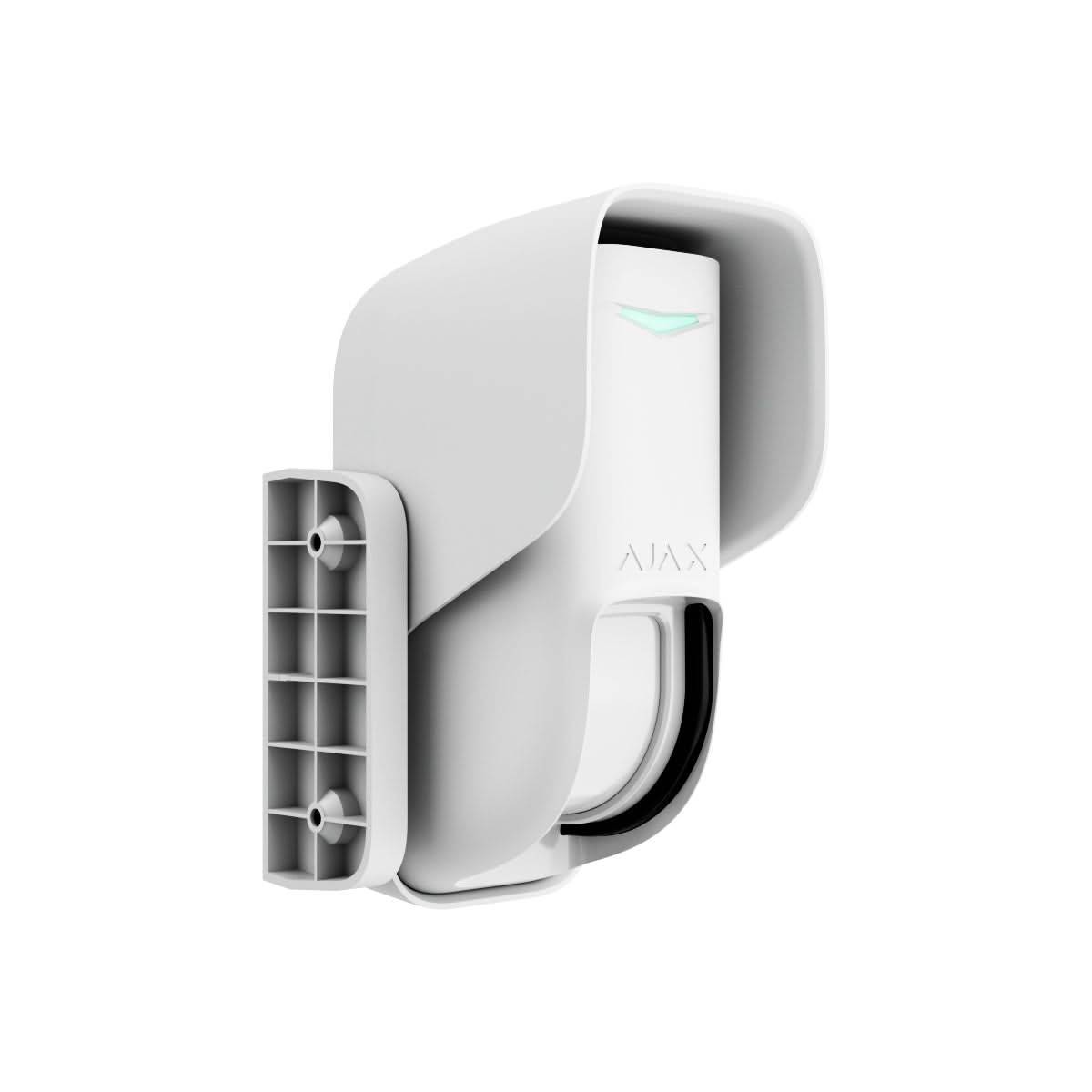

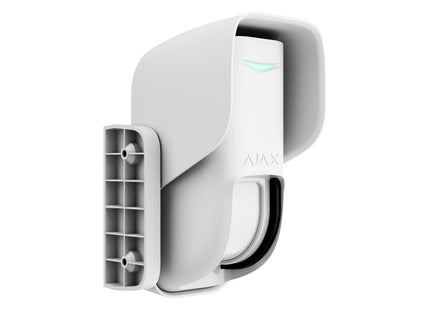

- Mounting angle
Specifications:
| Battery |
2x CR123A |
| Battery life |
up to 3 years |
| Jeweler wireless |
Yes (868MHz) |
| Jeweler max. range |
1700 m |
| Wings wireless |
Yes |
| Wings max range |
1700 m |
| Detection range |
8 to 12 m |
| Detection angle |
horizontal 8°
vertical 85° (2.4m height)
vertical 15° (pet) |
| Detection speed |
0.3...2 m/s |
| Sensitivity levels |
3 |
| Anti-mask |
Yes |
| Animal friendly |
100 cm high |
| Recommended installation height |
2.4m
1 m (pet) |
| Operating temperature |
-25…+60 °C |
| Humidity |
up to 95% |
| IP class |
IP55 |
| Dimensions |
141 x 60 x 72mm |
| Weight |
223 g |
| EN50131 |
Grade 2 |
| Certified |
Yes |
