Description
Application:

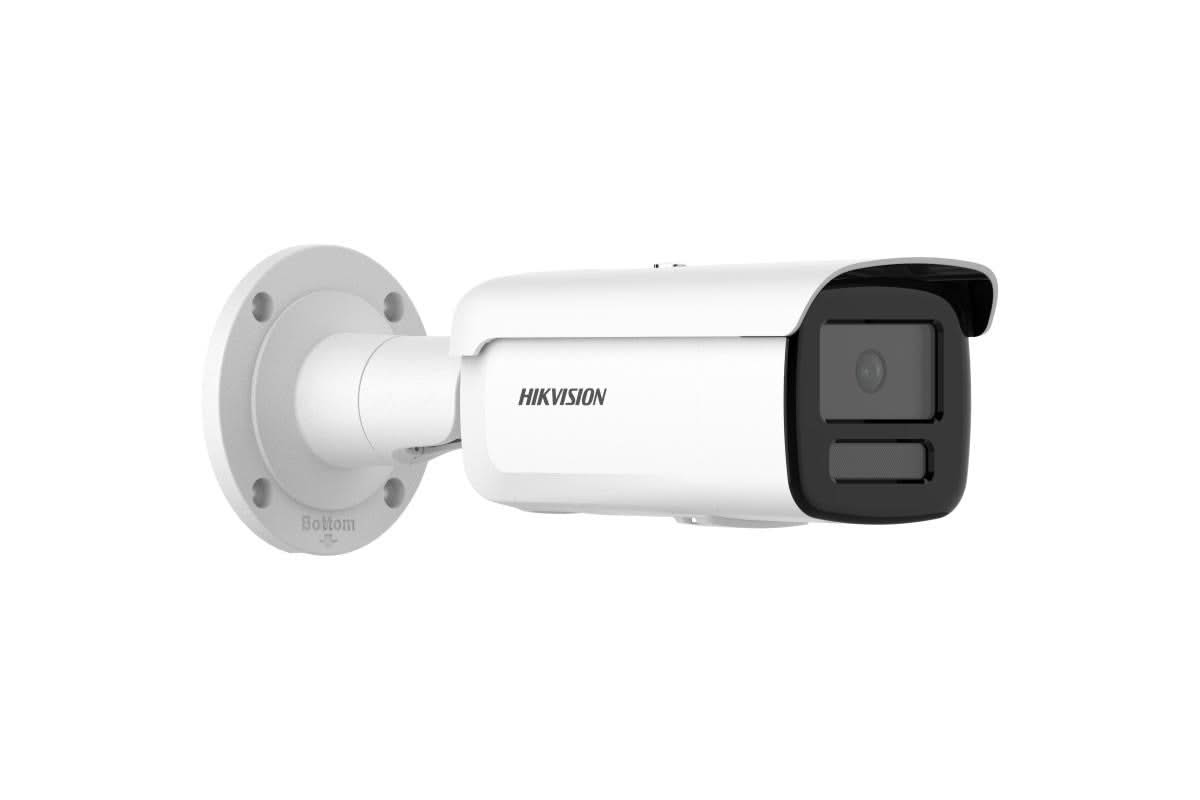

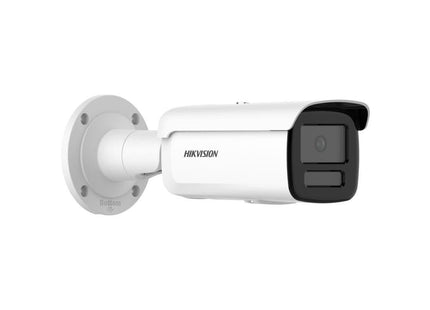

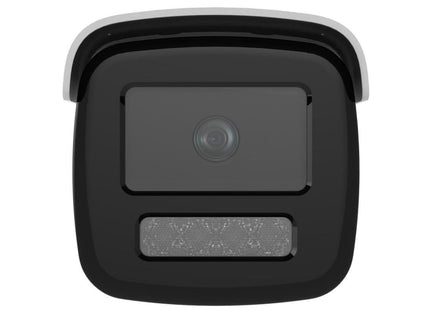

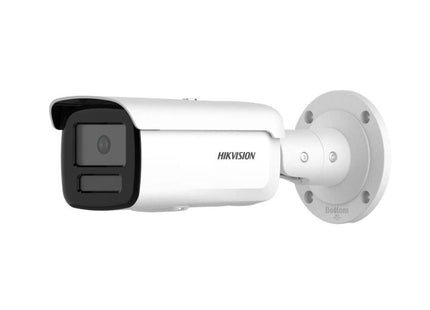

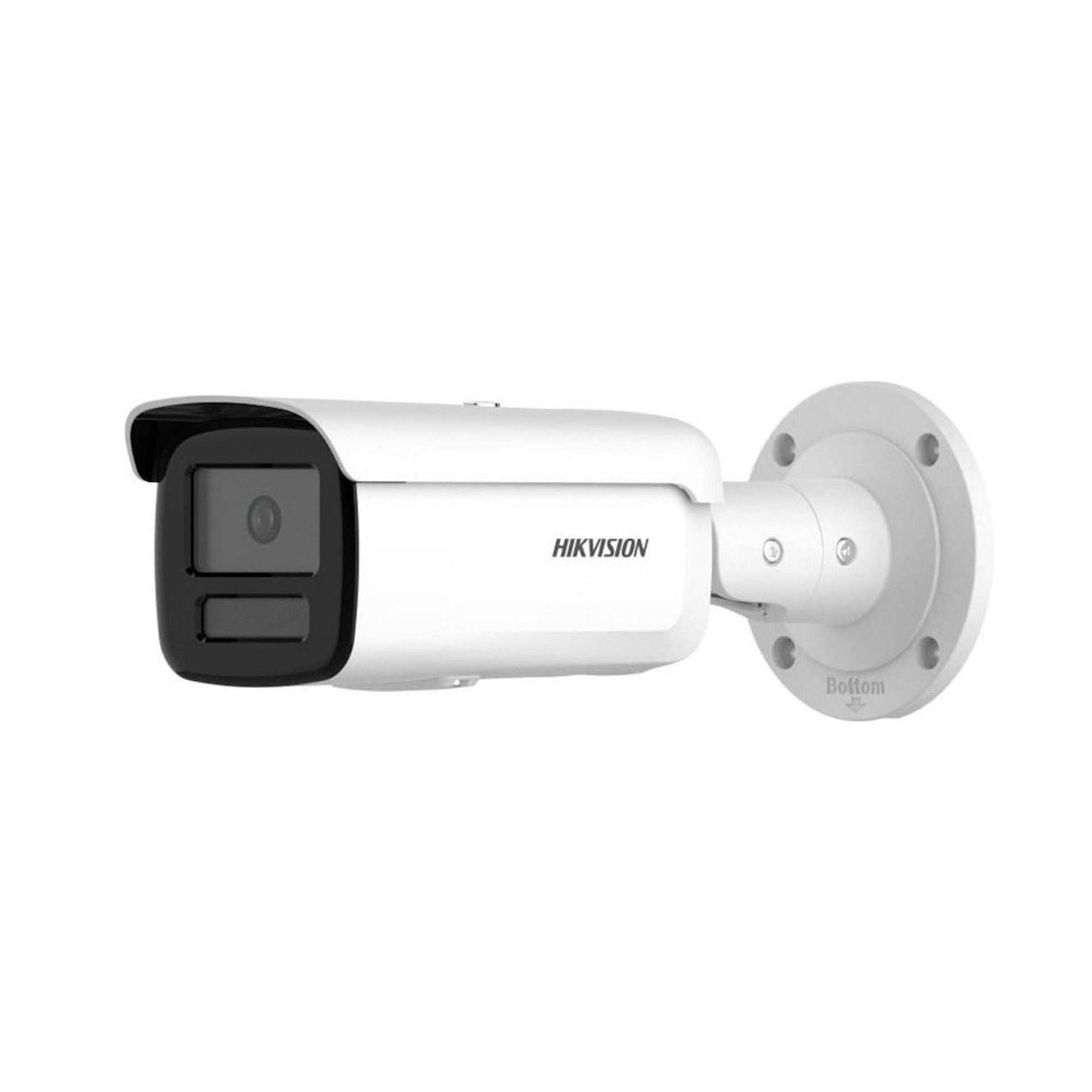

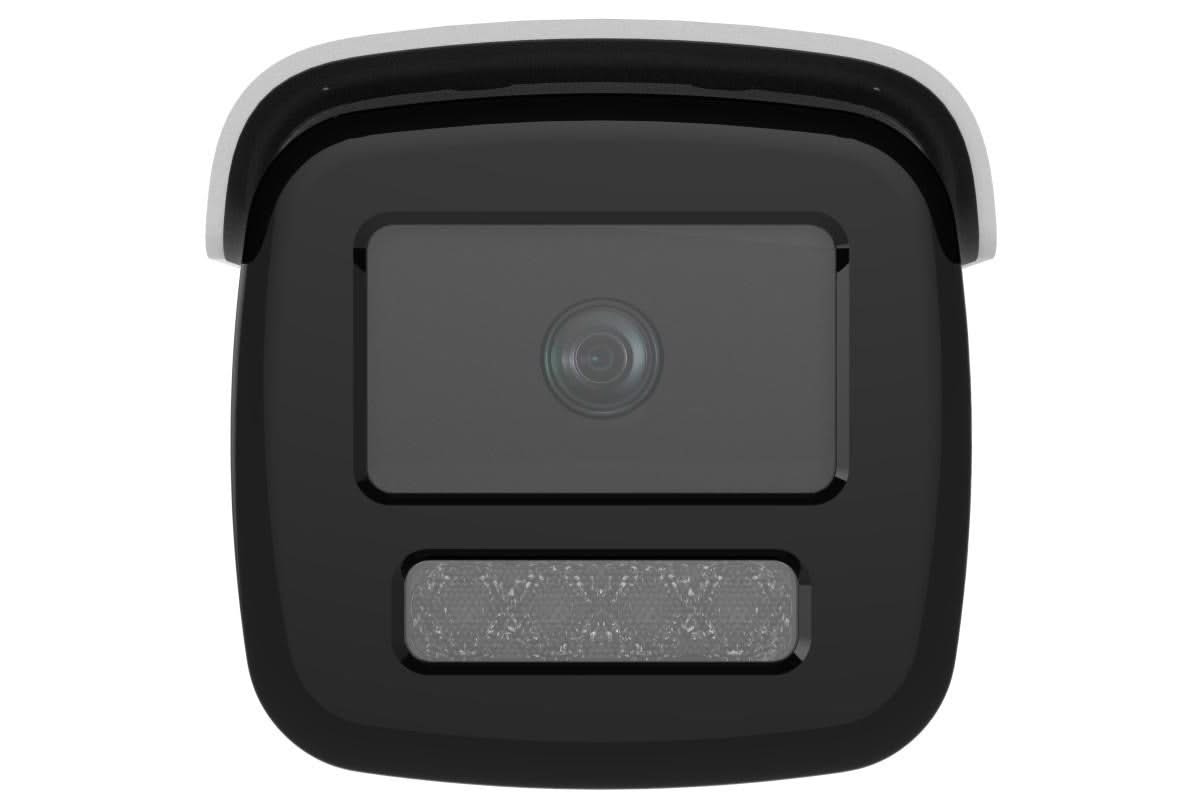

The Hikvision DS-2CD2T86G2H-4I is ideal for monitoring outdoor areas such as parking lots, business premises, and entrances, where constant surveillance is required, regardless of lighting conditions. With excellent image quality, robust construction and smart functions, this camera offers the perfect solution for reliable and safe surveillance.
Specifications:
-
Image sensor: 1/1.8" Progressive Scan CMOS
-
Maximum Resolution: 3840 × 2160
-
Minimum Exposure:
- Color: 0.0008 Lux @ (F1.0, AGC ON)
- Black/White: 0 Lux with IR
-
Shutter speed: 1/3 s to 1/100,000 s
-
Day & Night: IR filter
-
Angle adjustment:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotation: 0° to 360°
Lens
-
Lens Type: Fixed focal lens, 4 mm
-
Focal Length & Field of View:
- 4mm: Horizontal FOV 90.0°, Vertical FOV 45.8°, Diagonal FOV 109.4°
-
Lens mount: M16
-
Aperture Type: Fixed
-
Diaphragm: F1.0
-
Depth of Field:
DORI
-
4mm:
- Detection: 109 m
- Observation: 43 m
- Recognition: 21 m
- Identification: 10 m
Lighting
-
Supplementary Lighting Type: IR
-
Achieve Supplementary Lighting:
- 2I: up to 60 m
- 4I: up to 80 m
-
Smart Supplementary Lighting: Yes
-
IR Wavelength: 850nm
Video
-
Main stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
Substream:
- 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
-
Third Stream:
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
-
Video Compression:
- Main current: H.265/H.264/H.264+/H.265+
- Substream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
-
Video Bitrate: 32 Kbps to 16 Mbps
-
H.264 Type: Baseline Profile, Main Profile, High Profile
-
H.265 Type: Main Profile
-
Bitrate Control: CBR, VBR
-
Scalable Video Codecs (SVC): H.264 and H.265 encoding
-
Region of Interest (ROI): 1 fixed region for main stream and substream
Network
-
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, SRTP, SFTP
-
Simultaneous Live View: Up to 6 channels
-
API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
-
User/Host: Up to 32 users
-
Security: Password protection, HTTPS encryption, 802.1X authentication, watermark, IP address filter, TLS 1.1/1.2/1.3, host authentication (MAC address)
-
Network storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
-
Client: iVMS-4200, Hik-Connect, Hik-Central
-
Web browser: Plugin requires live view: IE 10, IE 11; Plugin free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
-
Image settings: Rotary mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable via client software or web browser
-
Day/Night Switch: Day, Night, Auto, Schedule
-
Image enhancement: BLC, HLC, 3D DNR
-
SNR: ≥ 52 dB
-
Wide Dynamic Range (WDR): 120 dB
-
Privacy Masking: 4 programmable polygon privacy masks
Interface
-
Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
-
On-Board Storage: Integrated memory card slot, supports microSD/microSDHC/microSDXC card, up to 512 GB
-
Reset button: Yes
General
-
Current: 12 VDC ± 25%, 0.95 A, max. 11.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 12.5 W
-
Material: Front cover: metal, housing: metal, bracket: metal
-
Dimensions: 286.7 mm × 93.3 mm × 91.2 mm (11.3" × 3.7" × 3.6")
-
Weight: Approximately 1180 g (2.6 lb.)
-
Storage conditions: -30°C to 60°C (-22°F to 140°F), Humidity 95% or less (non-condensing)
-
Starting and Operating Conditions: -30°C to 60°C (-22°F to 140°F), Humidity 95% or less (non-condensing)
-
General Functions: Heart rate, mirror, password reset via email, pixel counter, anti-banding
