Description
Important!
Make sure your current recorder can handle the HD resolution of this camera.
This is not an IP camera. This camera is connected to a coaxial cable and is ideal as a replacement for your old coax-based CCTV system.

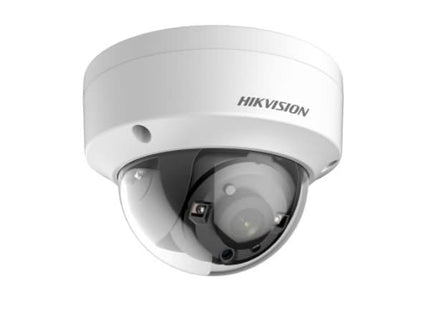

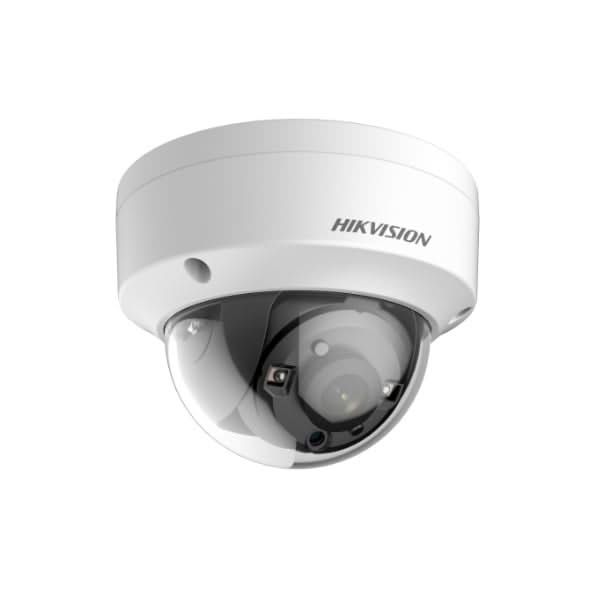

Hikvision DS-2CE57U1T-VPITF, 4K D/N IR 3-Axis Vandal Dome, 2.8mm, Fixed lens
This model is equipped with a 4 in 1 video output so that it can also be connected to an older analog system with CVBS.
Turbo HD cameras have the HD-TVI technology developed by Hikvision. This technology makes it possible to apply high-resolution cameras to COAX cabling. The advantage of HD-TVI technology is that it is easy to apply, also to the infrastructure of existing analog camera systems. Thanks to this technology, there is little delay in the image and distances of up to 700 meters can be achieved with full HD cameras.
Specifications:
Camera:
- Image sensor: 8.29MP Progressive Scan CMOS
- Number of pixels: 3840x2160
- Minimum lighting:
0.01Lux/F1.2 in color, 0Lux with IR on
- Frame rate:
TVI: 8MP (1-12.5fps), 5MP (1-20fps), 4MP,2MP (1-25fps)
CVI: 8MP (1-12.5fps)
AHD: 5MP (1-20fps)
CVBS: 960H P/N
- Shutter speed: 1/12.5s to 1/50,000s
- Focal length: 2.8mm
- Lens type: Fixed lens / Fixed Iris
- Horizontal opening angle: 102.2°
- WDR: DWDR
- Infrared: up to 30m, EXIR,SmartIR
Position camera:
- Pan/Tilt/Rotation:
- Tilt angle: 0~75°
- Rotation: 0~355°
- Pan: 0~355°
Menu:
- Day/Night Mode: Auto/Color/black and white
- White balance: Automatic/manual
- Backlight compensation: DWDR/BLC
- Features: brightness, sharpness, DNR, mirrored, SmartIR
Interface:
- Video output: 1 HD analog
- Switch button: TVI/AHD/CVI/CVBS
Other:
- Operating temperature: -40 to 60 degrees
- Power supply: DC 12V
- Consumption: max. 5.3W
- Water resistance: IP67
- Vandal resistance: IK10
- Material: metal
- Dimensions: Ø111x82.4mm
