DS-7608NI-K2/8P/4G 8 channels NVR 4K with HDMI 4G and PoE

Description

DS-7608NI-K2/8P/4G 8 channels NVR 4K with HDMI 4G and PoE

The DS-7608NI-K2/8P/4G (NVR) is a new generation recorder, combined with multiple advanced technologies such as audio and video decoding, embedded system technology, storage technology, network technology and intelligent technology.
The NVR can work as a recorder as well as collaborate with other devices to form a comprehensive surveillance system.

This NVR is a Plug & Play recorder and it can record a resolution of up to 8 Megapixels 4K. The HDMI can display an image resolution of up to 4K. You can connect the cameras directly to the recorder.
You can also connect cameras to the NVR if they are connected elsewhere in the network. For example, by means of a switch.
Internally you have a SATA connection for 2 hard drives up to 6 TB.
Of course you can also access this recorder via the Hik-connect app or in your web browser.

Specifications:

  • Motion detection 2.0
  • Human/vehicle analysis - 4-ch

    Video and audio
  • IP video input - 8 ch
  • Incoming bandwidth - 80 Mbps
  • Outgoing bandwidth - 80 Mbps
  • HDMI output - 1 channel, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
  • VGA output - 1 channel, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • Video output mode - Simultaneous HDMI/VGA output
  • Audio output - 1 channel, RCA (linear, 1 KΩ)
  • Two-way audio - 1 channel, RCA (2.0 Vp-p, 1 KΩ)

    Decoding
  • Decoding format H.265+/H.265/H.264+/H.264
  • Recording resolution - 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous playback 8-ch
  • Decoding capabilities - 1-channel at 8 MP (30 fps) / 3-channel at 4 MP (30 fps) / 6-channel at 1080p (30 fps)
  • Stream type - video, video and audio
  • Audio Compression - G.711ulaw,G.711alaw,G.722,G.726,AAC,MP2L2

    Network
  • Network interface - 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Network Protocol - TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Remote connection - 32

    PoE
  • Interface - 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power - ≤ 80 W
  • Standard - IEEE 802.3 af/at

    Wireless parameter
  • SIM/UIM card slot - 1 micro SIM card slot, on back panel
  • SMA antenna interface -
    1 4G interface, antenna module cable length: 3 m
    1 ANT interface for GPS antenna (GPS antenna is optional)
  • Wireless standard -
    GSM/EDGE: 850/900/1800 MHz
    WCDMA: B1/B5/B8
    LTE FDD: B1/B3/B5/B7/B8/B20/B28
    LTE TDD: B38/B40/B41

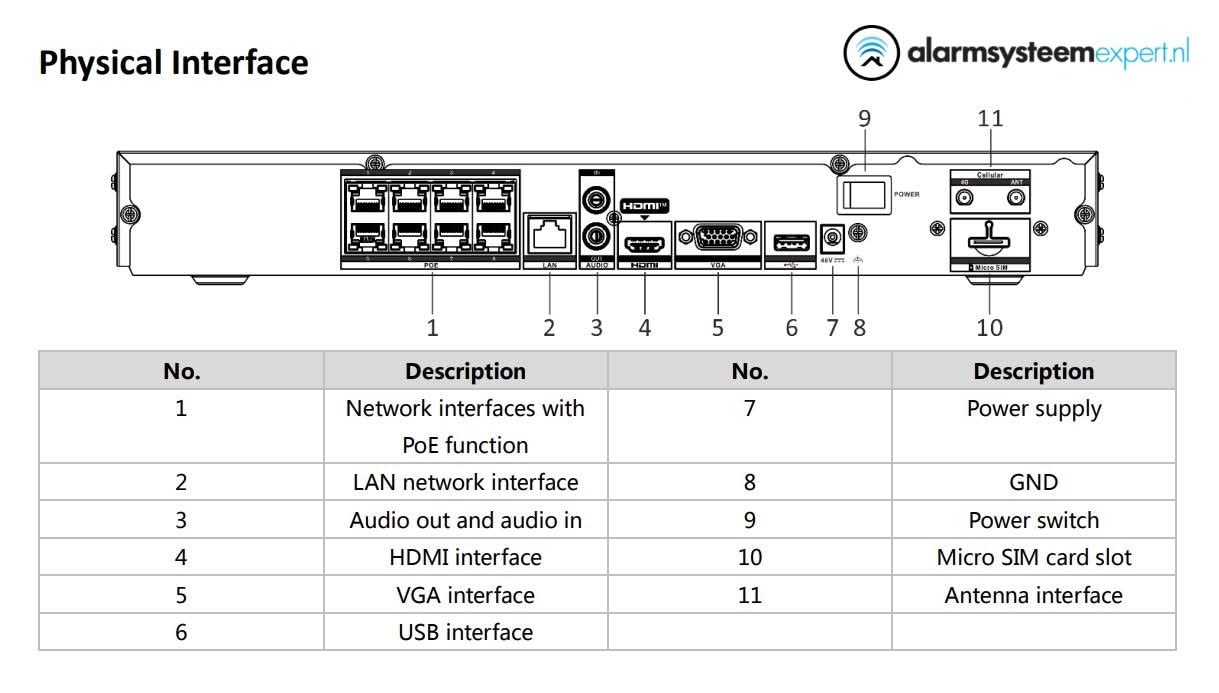

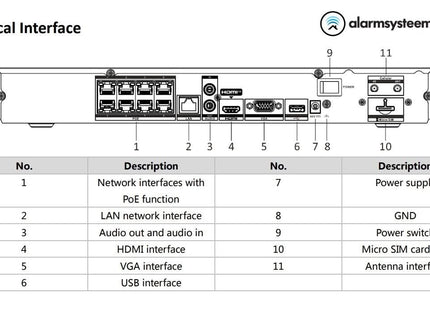

    Interface
  • SATA - 2 SATA interfaces
  • Capacity - Up to 8 TB capacity for each drive
  • USB interface -
    Front panel: 1 × USB 2.0;
    Back panel: 1 × USB 2.0

    General
  • Power supply - 48 VDC, 2.5 A
  • Consumption - ≤ 15 W (without HDD and PoE off)
  • Operating temperature - -10°C to 55°C (14°F to 131°F)
  • Operating Humidity - 10% to 90%

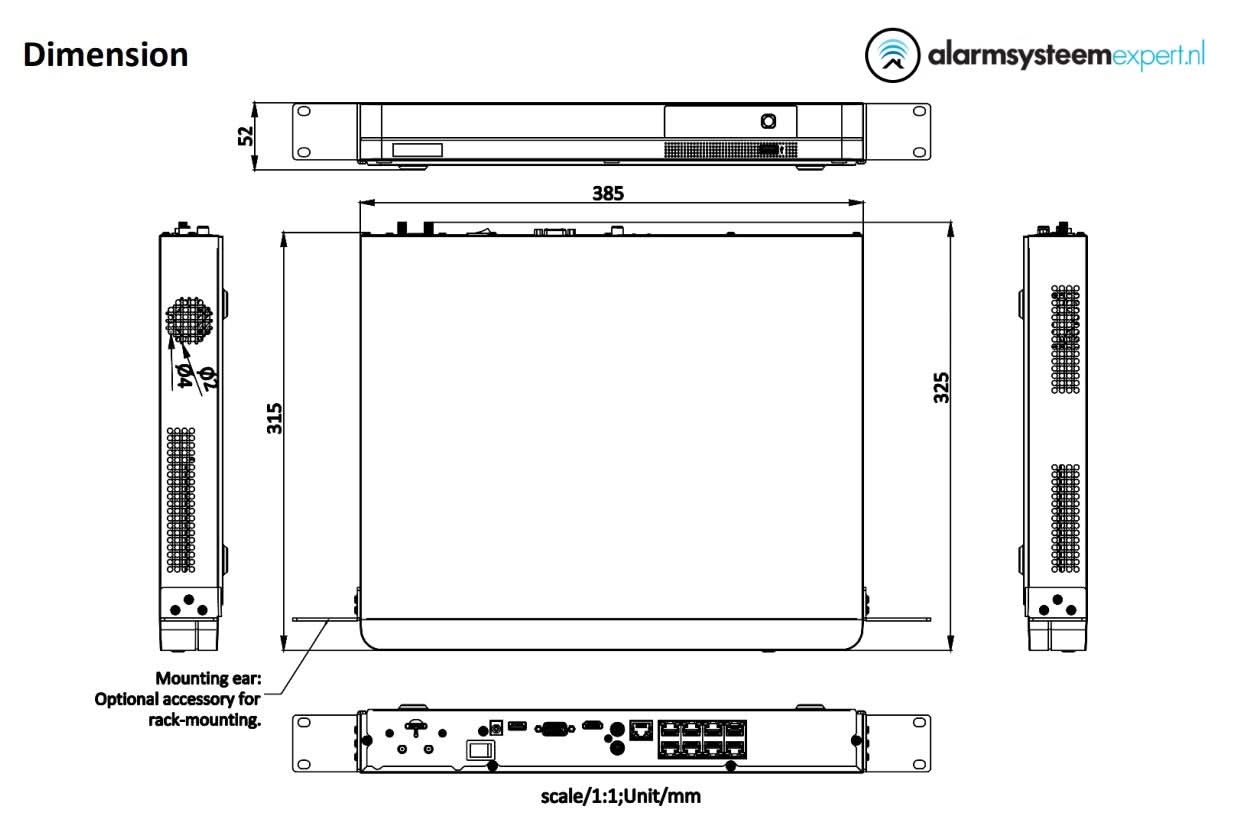

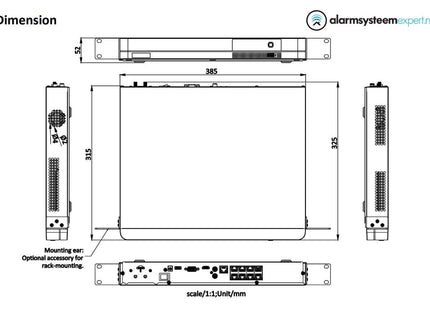

  • Dimensions - (W × D × H) 385 × 315 × 52 mm (15.2" × 12.4" × 2.0")
  • Weight - ≤ 3 kg (without HDD, 6.6 lb.)

DS-7608NI-K2/8P/4G 8 channels NVR 4K with HDMI 4G and PoE

Product form

In stock, delivery time 1 to 3 working days

€599,00 Incl. VAT

      • Free shipping from €99
      • Free returns within 30 days

      Associated products

      Description

      DS-7608NI-K2/8P/4G 8 channels NVR 4K with HDMI 4G and PoE

      The DS-7608NI-K2/8P/4G (NVR) is a new generation recorder, combined with multiple advanced technologies such as audio and video decoding, embedded system technology, storage technology, network technology and intelligent technology.
      The NVR can work as a recorder as well as collaborate with other devices to form a comprehensive surveillance system.

      This NVR is a Plug & Play recorder and it can record a resolution of up to 8 Megapixels 4K. The HDMI can display an image resolution of up to 4K. You can connect the cameras directly to the recorder.
      You can also connect cameras to the NVR if they are connected elsewhere in the network. For example, by means of a switch.
      Internally you have a SATA connection for 2 hard drives up to 6 TB.
      Of course you can also access this recorder via the Hik-connect app or in your web browser.

      Specifications:

      • Motion detection 2.0
      • Human/vehicle analysis - 4-ch

        Video and audio
      • IP video input - 8 ch
      • Incoming bandwidth - 80 Mbps
      • Outgoing bandwidth - 80 Mbps
      • HDMI output - 1 channel, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
      • VGA output - 1 channel, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
      • Video output mode - Simultaneous HDMI/VGA output
      • Audio output - 1 channel, RCA (linear, 1 KΩ)
      • Two-way audio - 1 channel, RCA (2.0 Vp-p, 1 KΩ)

        Decoding
      • Decoding format H.265+/H.265/H.264+/H.264
      • Recording resolution - 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
      • Synchronous playback 8-ch
      • Decoding capabilities - 1-channel at 8 MP (30 fps) / 3-channel at 4 MP (30 fps) / 6-channel at 1080p (30 fps)
      • Stream type - video, video and audio
      • Audio Compression - G.711ulaw,G.711alaw,G.722,G.726,AAC,MP2L2

        Network
      • Network interface - 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface
      • Network Protocol - TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
      • Remote connection - 32

        PoE
      • Interface - 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
      • Power - ≤ 80 W
      • Standard - IEEE 802.3 af/at

        Wireless parameter
      • SIM/UIM card slot - 1 micro SIM card slot, on back panel
      • SMA antenna interface -
        1 4G interface, antenna module cable length: 3 m
        1 ANT interface for GPS antenna (GPS antenna is optional)
      • Wireless standard -
        GSM/EDGE: 850/900/1800 MHz
        WCDMA: B1/B5/B8
        LTE FDD: B1/B3/B5/B7/B8/B20/B28
        LTE TDD: B38/B40/B41

        Interface
      • SATA - 2 SATA interfaces
      • Capacity - Up to 8 TB capacity for each drive
      • USB interface -
        Front panel: 1 × USB 2.0;
        Back panel: 1 × USB 2.0

        General
      • Power supply - 48 VDC, 2.5 A
      • Consumption - ≤ 15 W (without HDD and PoE off)
      • Operating temperature - -10°C to 55°C (14°F to 131°F)
      • Operating Humidity - 10% to 90%
      • Dimensions - (W × D × H) 385 × 315 × 52 mm (15.2" × 12.4" × 2.0")
      • Weight - ≤ 3 kg (without HDD, 6.6 lb.)
