DS-7616NXI-K2/16P 16 channels AcuSense NVR, HDMI, 16x PoE

Description

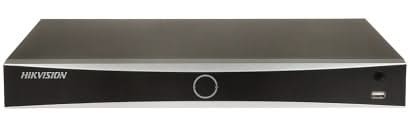

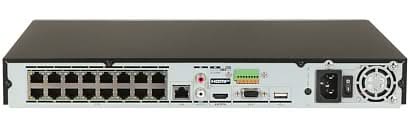

The Hikvision DS-7616NXI-K2/16P Network Video Recorder is a 16 channel Acusense recorder with 16x PoE inputs. Acusense is a technology that allows the recorder on all connected cameras to recognize and record people and/or vehicles. This reduces useless recordings, such as recordings of blowing leaves. The recorder is equipped with 16x PoE for plug and play connection of IP Cameras, an HDMI output for connecting a TV or Monitor, a network output for connection to the network/APP, 2x SATA connection for a hard disk (not included as standard, select below)

Hikvision AcuSense NVR 16-channel IP camera up to 12MP with 16 x PoE, classification of people and vehicles for motion detection (MD2.0) on 16 channels, fast target search and 1-channel facial recognition. (video stream) or 4-channel on facial recognition with photos.

Specifications:

  • Intelligent analysis
  • AI per device - Facial recognition, perimeter security, motion detection 2.0
  • AI per camera - Facial recognition, perimeter security, motion detection 2.0, ANPR, VCA

    Facial recognition
  • Face Detection and Analysis - Face Photo Comparison, Human Face Capture,
  • search for face photos Face Photo Library - Up to 16 face photo libraries, with a total of up to 20,000 face photos (each photo ≤ 4 MB, total capacity ≤ 1 GB)
  • Face detection and analysis performance - 1 channel, 8 MP
  • Face Photo Comparison 4- ch

    Motion detection 2.0
  • Per device - All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analytics for people and vehicle recognition to reduce false alarms
  • Via camera - All channels

    Perimeter security
  • Via Device - 2-channel, 4 MP (HD Network Camera, H.264/H.265) video analytics for
    recognition of people and vehicles to reduce false alarms
  • Via camera - All channels

    Video and audio
  • IP video input - 16 channels
  • Incoming bandwidth - 160 Mbps
  • Outgoing bandwidth - 160 Mbps
  • HDMI output - 1 channel, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
  • VGA output - 1 channel, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • Video output mode - HDMI/VGA independent output
  • CVBS output - N/A
  • Audio output - 1 channel, RCA (2.0 Vp-p, 1 KΩ, using the audio in)
  • Two-way audio - 1 channel, RCA (linear, 1 KΩ)

    Decoding
  • Decoding format - H.265/H.265+/H.264+/H.264
  • Recording Resolution - 12 MP/8 MP/6 MP/5 MP/4 MP/
  • Decoding capabilities -
    AI on: 1ch at 12MP (30fps)/2ch at 8MP (30fps)/4ch at 4MP (30fps)/8ch at 1080p (30fps)
    AI out: 2 channels at 12 MP (30 fps) / 3 channels at 8 MP (30 fps) / 6 channels at 4 MP (30 fps) / 12 channels at 1080p (30 fps)
  • Stream type - Video, video and audio
  • Audio Compression - G.711ulaw/G.711alaw/G.722/G.726/AAC

    Network
  • External connections - 128
  • API - ONVIF (profile S/G); SDK; ISAPI
  • Compatible browser - IE11, Chrome V57, Firefox V52, Safari V12, Edge V89 or higher version
  • Network Protocol - TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface - 1 RJ-45 10/100/1000 Mbps Self-adaptive Ethernet Interface

    PoE
  • Interface - 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power - ≤ 200 W
  • Standard - IEEE 802.3af/

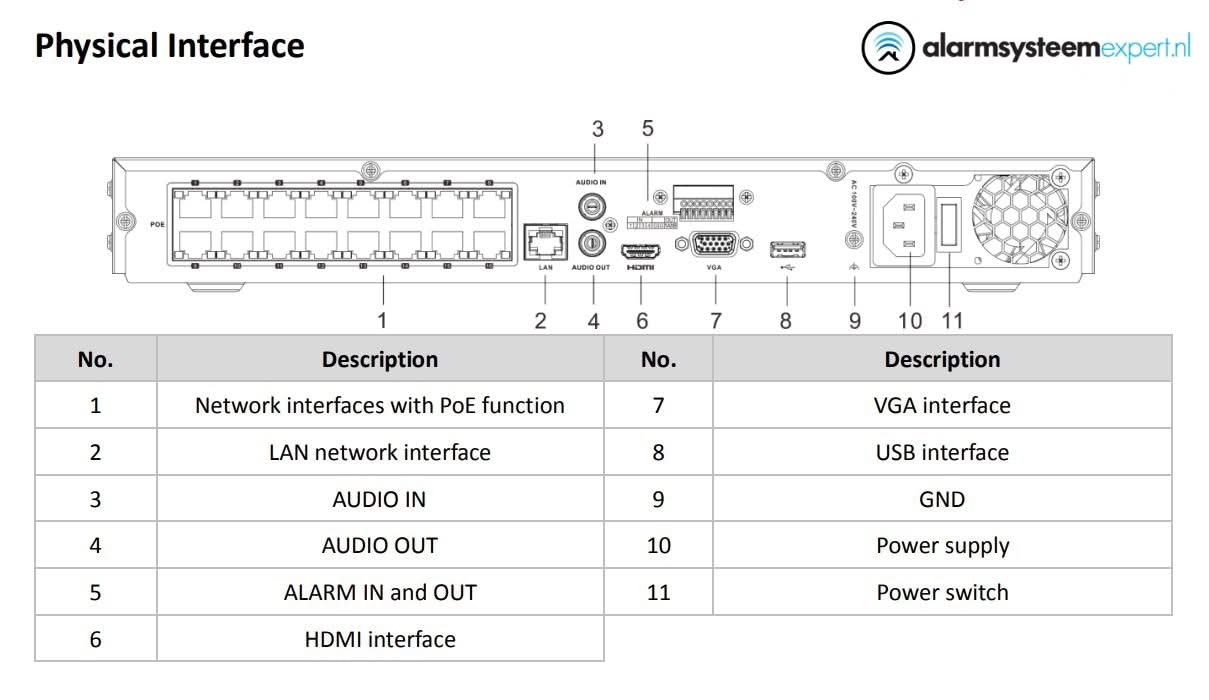

    Interface
  • SATA - 2 SATA interfaces Capacity Up to 10 TB capacity for each HDD
  • USB interface - Front panel: 1 × USB 2.0; Back panel: 1 × USB 2.0
  • Alarm In/Out - 4/1
  • Power - 100 to 240 VAC, 50 to 60 Hz
  • Consumption - ≤ 15 W (without HDD and PoE disabled)
  • Operating temperature - -10°C to 55°C (14°F to 131°F)
  • Operating Humidity - 10% to 90%

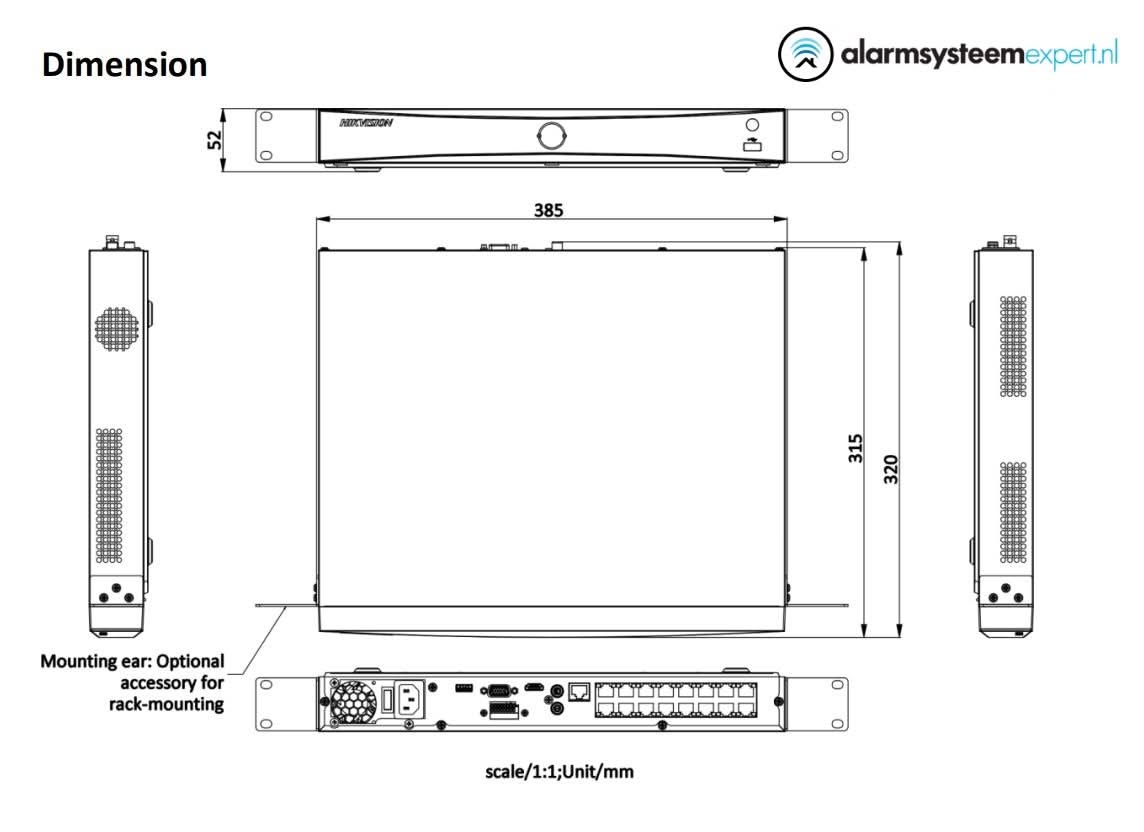

  • Dimensions - (W × D × H) 385 mm × 315 mm × 52 mm (15.2" × 12.4" × 2.0")
  • Weight - ≤ 3 kg (without HDD, 6.6 lb.)

DS-7616NXI-K2/16P 16 channels AcuSense NVR, HDMI, 16x PoE

Product form

In stock, delivery time 1 to 3 working days

€599,00 €469,00 Incl. VAT

      • Free shipping from €99
      • Free returns within 30 days
