Description

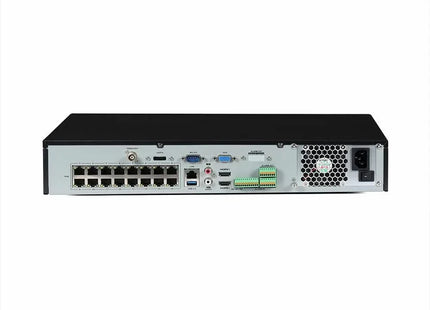

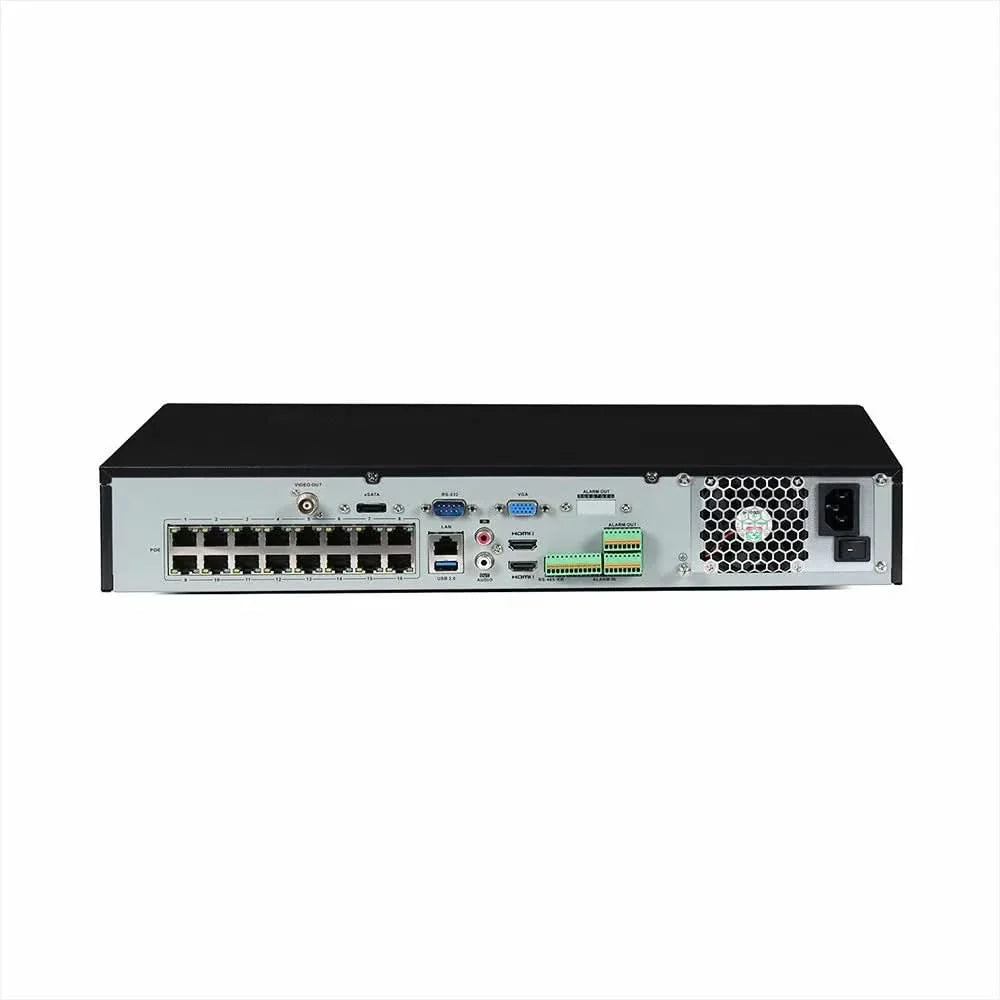

Hikvision DS-7732NXI-I4/16P/S Network Video Recorder Acusense (NVR) 4 SATA, 4K Ultra HD
FYI: Recorders have fans on board that cool the processor, these make noise!
This is approximately 60Db. We therefore advise not to place the recorder in the house but to hide it in, for example, a meter cupboard.
The AcuSense NVR is a powerful recorder suitable for resolutions up to 12MP. The recorder is equipped with AcuSense technology. AcuSense is an advanced algorithm that is able to recognize vehicles and people, allowing for very accurate detection. This intelligent functionality can be applied to a maximum of 4 cameras with a maximum resolution of 2MP. Because the intelligence is in the recorder, the AcuSense technology can be used with normal cameras.
The Hikvision DS-7732NxI-I4/16P/S is a 32 channel NVR (HD Recorder) and is equipped with 16 PoE inputs and 4 SATA connections and has a 4K Ultra HDMI output. A total of 32 cameras can be connected to it; 16 via the built-in PoE switch and 16 via, for example, an external PoE switch.
16 cameras are directly supplied with the necessary power via the internal PoE switch. This way you don't have to create a power point near the cameras.
The HD recorder automatically provides the cameras with the correct IP addresses. This makes installation and configuration easy to do yourself.
The recorder can function stand-alone with an optional monitor. It is also possible to connect this NVR to the network or an internet router via the LAN port so that you can view the images with a PC or Laptop/Smartphone.
This HD recorder records 32 channels in HD quality. You can opt for recordings based on movement. This way, in the event of an incident, you can easily search back in the timeline on which the movements are recorded. Interesting recordings can be archived on a USB stick.
The HD recorder can be set in the Dutch language!
Hikvision AcuSense NVR 32-channel IP camera up to 12MP with 16 x PoE, support false alarm filtering for 4 channels, behavior (line crossing and intrusion) for network camera detection with a resolution of up to 4 MP. classification of people and vehicles for 32-channel motion detection, fast target search and 1-channel facial recognition. (video stream) or 4-channel on facial recognition with photos.
NVR 32 ch IP camera channels, recording resolution up to 12MP/ch, max 256Mbps recording bandwidth, HDMI(4K), VGA output up to 1080p (2nd HDMI up to 1080P), local display capacity 16-ch@1080Pch (4ch 4K), 4 SATA, 3 USB, 1 x RJ45(10/100/1000), Supports Multi-brand network cameras and ONVIF, 16 PoE ports af/at (total max 200W), power supply 230Vac, Smart analysis options: False alarm filtering for detection of behavior on 4 channels, (line crossing and intrusion) for network camera with a resolution less than or equal to 2 MP. (facial recognition and perimeter not at the same time)
Technical specifications;
This NVR records a maximum of 32 channels with a maximum bandwidth of 256Mbit/s.
• Max. 256Mbit/s recording, max 256Mbit/s streaming
• HDMI, VGA output at up to 4K Ultra HD resolution, BNC output
• Control via front panel, USB mouse, remote control
• Maximum 4 HDD SATA with quota and group management, 2 USB2.0
• Web support for Internet Explorer, Safari, Firefox
• Free apps for iPhone, Android (iVMS-4500)
• Free VMS software for PC and Mac (iVMS-4200)
• Up to 12 Megapixels resolution recording
19" rack mountable
