DS-KD-E, Module Intercom, Card Reader EM

Description

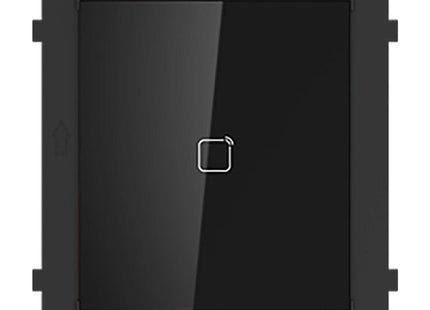

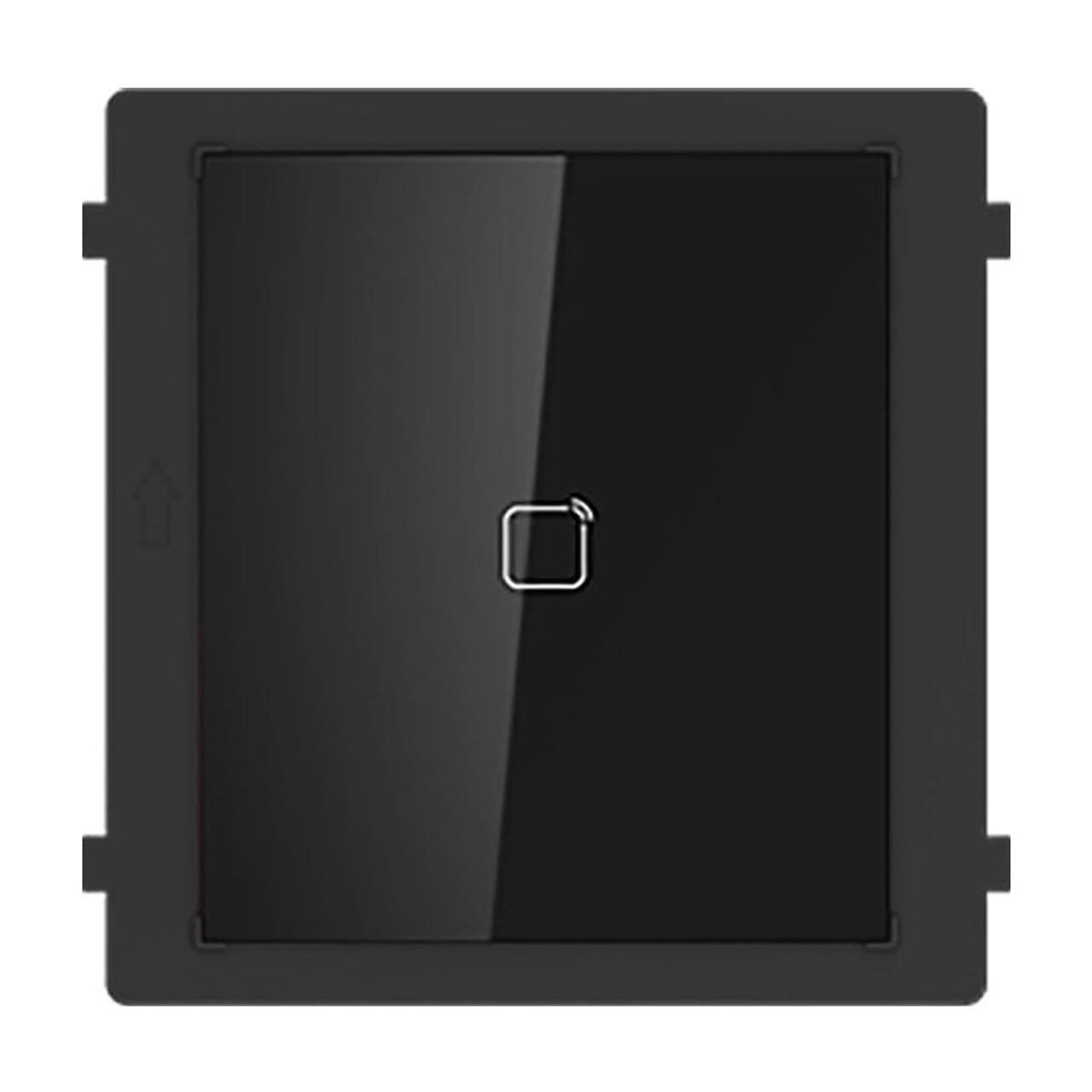

The Hikvision DS-KD-E is an IP video intercom outdoor station RFID EM card reading module for use in the Hikvision second generation IP intercom system. The module must be used together with the DS-KD8003-IME1 or DS-KD8003-IME2 camera main module. The modules must be built-in or assembled with the separately available housings. The module can be used to open a door or gate with an RFID proximity card or tag code. The module is connected and powered by the camera module.

  • EM card reader module of modular door station
  • Support door unlocking via card swipe, card issuing
  • IP65 protection level
  • Backlight compensation behind the module
  • Easy to use and expandable

Specifications:

  • Installation: flush mounting, surface mounting
  • Indicator: With packaging: 421 g, Without packaging: 160 g
  • Protection level: IP65
  • Power supply method: 12 VDC (powered by the other module)
  • Operating temperature: -40° C to +55° C (-40° F to 131° F)
  • Operating humidity: 10% to 95%

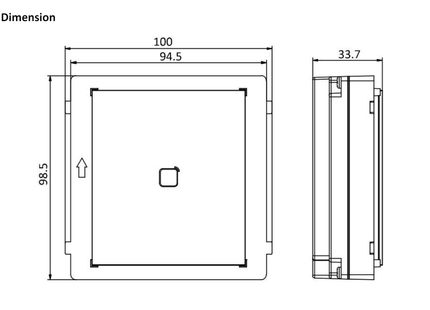

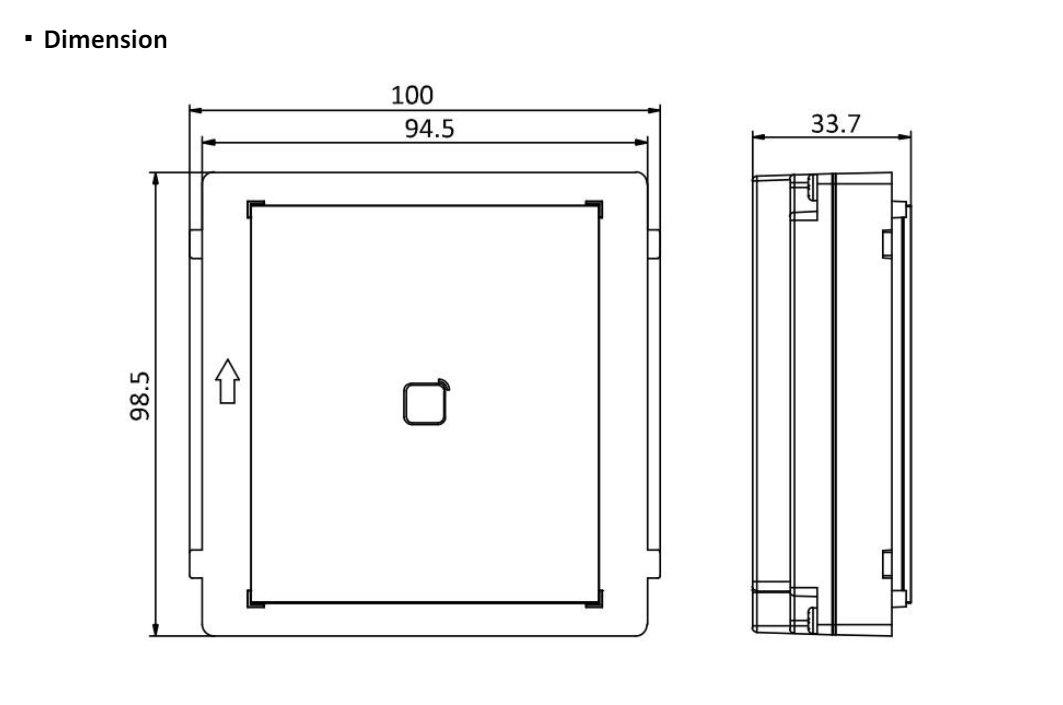

  • Dimensions: 98.5 mm × 100 mm × 33.7 mm (3.87" × 3.95" × 1.33")
  • Battery: /
  • Application environment: Outdoor
  • Power consumption: ≤ 2 W

DS-KD-E, Module Intercom, Card Reader EM

Product form

In stock, delivery time 1 to 3 working days

€99,00 Incl. VAT

    • Sent today? You still have: Dec 23, 2025 17:00:00 +0100
    • Free shipping from €99
    • Free returns within 30 days

    Associated products

    Description

    The Hikvision DS-KD-E is an IP video intercom outdoor station RFID EM card reading module for use in the Hikvision second generation IP intercom system. The module must be used together with the DS-KD8003-IME1 or DS-KD8003-IME2 camera main module. The modules must be built-in or assembled with the separately available housings. The module can be used to open a door or gate with an RFID proximity card or tag code. The module is connected and powered by the camera module.

    • EM card reader module of modular door station
    • Support door unlocking via card swipe, card issuing
    • IP65 protection level
    • Backlight compensation behind the module
    • Easy to use and expandable

    Specifications:

    • Installation: flush mounting, surface mounting
    • Indicator: With packaging: 421 g, Without packaging: 160 g
    • Protection level: IP65
    • Power supply method: 12 VDC (powered by the other module)
    • Operating temperature: -40° C to +55° C (-40° F to 131° F)
    • Operating humidity: 10% to 95%
    • Dimensions: 98.5 mm × 100 mm × 33.7 mm (3.87" × 3.95" × 1.33")
    • Battery: /
    • Application environment: Outdoor
    • Power consumption: ≤ 2 W
